Battery tester 12V / 24 V with LCD display
Info over dit artikel:
- Reliable diagnostics
- 12V/24V battery tester with LCD display
- Checks battery voltage to an accuracy of 0.1V
- Alternator monitoring
- Operates via cigarette lighter socket
| Artikelnummer | WF-941997 |
| Merk | Ansmann |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
Tester for testing 12V vehicle starter batteries
This handy tester allows you to check the charge level of the vehicle battery and the battery's load capacity in no time.
Charging circuit and start readiness
The driver or the service workshop can also check the charging circuit of the vehicle's electrical system and the start readiness of the vehicle battery within a few minutes.
Easy to use

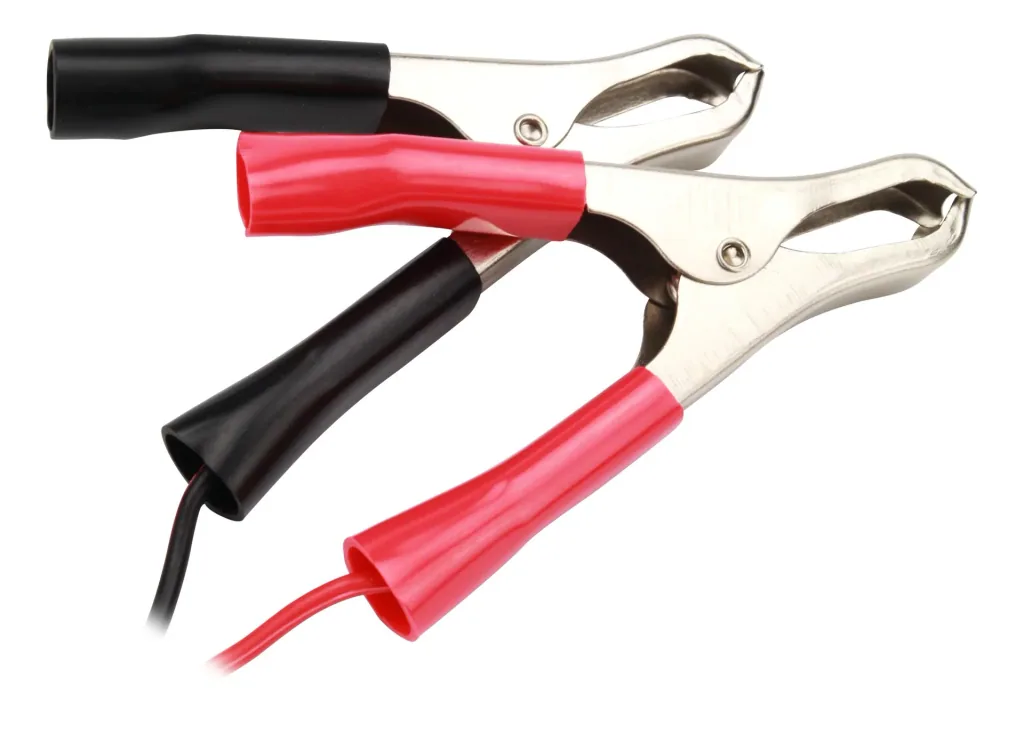

In just a few simple steps, the tester is connected to the starter battery terminals using color-coded terminals. Short circuits or reverse polarity are impossible thanks to built-in protection.
Reliable Diagnosis

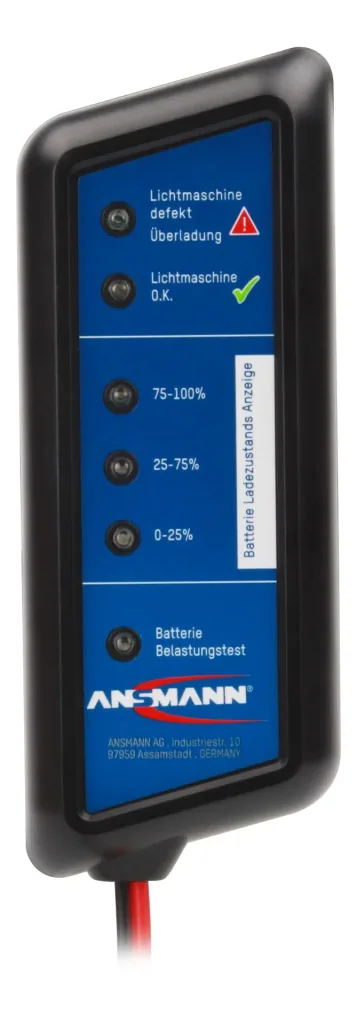

Various indicator lights allow for reliable diagnosis of your car battery and charging current control, even without extensive technical knowledge. Both are important prerequisites to ensure that drivers do not experience any unpleasant surprises the next time they start their car.
Damaged starter batteries can thus be identified as defective at an early stage, and appropriate countermeasures can prevent premature battery death.
Technical Data:
Alternator defective / overcharge: LED on at 14.8V +/- 0.1 and higher.
Alternator OK: LED on at 13.8V +/- 0.1, off at 14.8V +/- 0.1.
Battery charge status indicator: LED 75-100% on at 12.7V +/-0.05V and higher; LED 25-75% on at 12.45V +/-0.05V, off at 12.7V +/-0.05V; LED 0-25% on at 12.2V +/-0.05V.
Battery load test: LED on at 9.8V +/-0.1V and higher. Supply voltage: 6-16V DC.
Overload protection: up to 30V for 1 second, short-circuit and reverse polarity protected.
