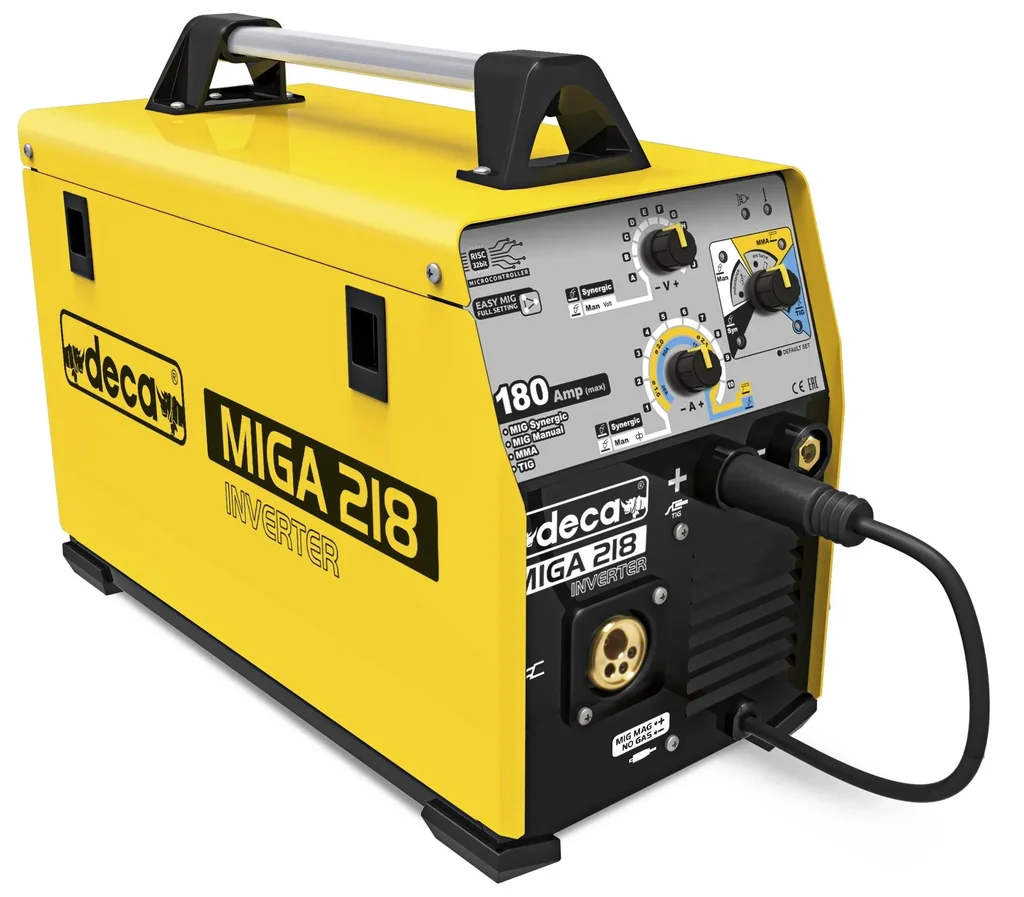

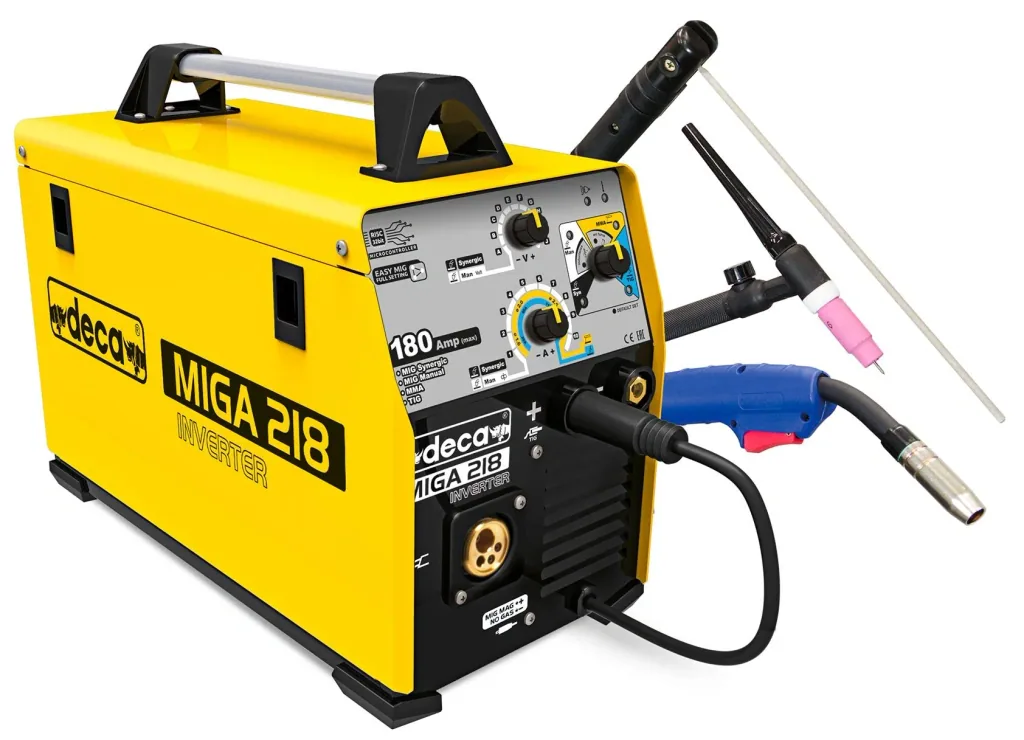

MIG inverter welding machine MIGA 218, 10-180 A

MIGA 218 The 4-in-1 welding machine.

MIG/MAG, flux-cored wire, MMA, and TIG (DC).

Inverter technology, microprocessor-controlled, integrated performance programs: Burn Back, Hot Start, Arc Force, Anti-Sticking, TIG Lift, Slope Up/Down. Suitable for spools from D = 100 mm to D = 200 mm. Synergic - MIG/MAG basic programs control the welding process semi-automatically. Manual setting of the welding parameters is also possible and is supported by other integrated programs. Optimized welding pattern.

Connectors allow for quick exchange of the ground clamp and electrode holder, as well as changing the polarity. This allows different metals such as steel, carbon steel, stainless steel, aluminum, copper, etc. to be processed depending on the welding process. Also suitable for connection to power generators (+/-30%), hose package with Euro coupling, electrode holder and TIG hose package are optionally available.

Technical data

• 230 Volt

• Welding current: MIG/MAG flux-cored wire: 10-180 A,

MMA: 10-150 A, TIG: 10-180 A

• Duty cycle: 140 A-25%, 90 A-60%

• Open circuit voltage: 80 Volt

• Input voltage: 3.5 kW

• Spool diameter D = 100-200 mm

• Stick electrode diameter: 1.6-3.2 mm

• Burn Back, Hot Start, Arc Force, Anti-Sticking, TIG Lift,

Slope Up/Down

• Generator compatible (+/-30%)

• Fan forced cooling

• Weight: 9.5 kg

• Dimensions: 452 mm x 220 mm x 345 mm

Scope of delivery

• Power cable with safety plug

• Ground cable with plug and ground clamp

• MIG-MAG hose package with Euro coupling
