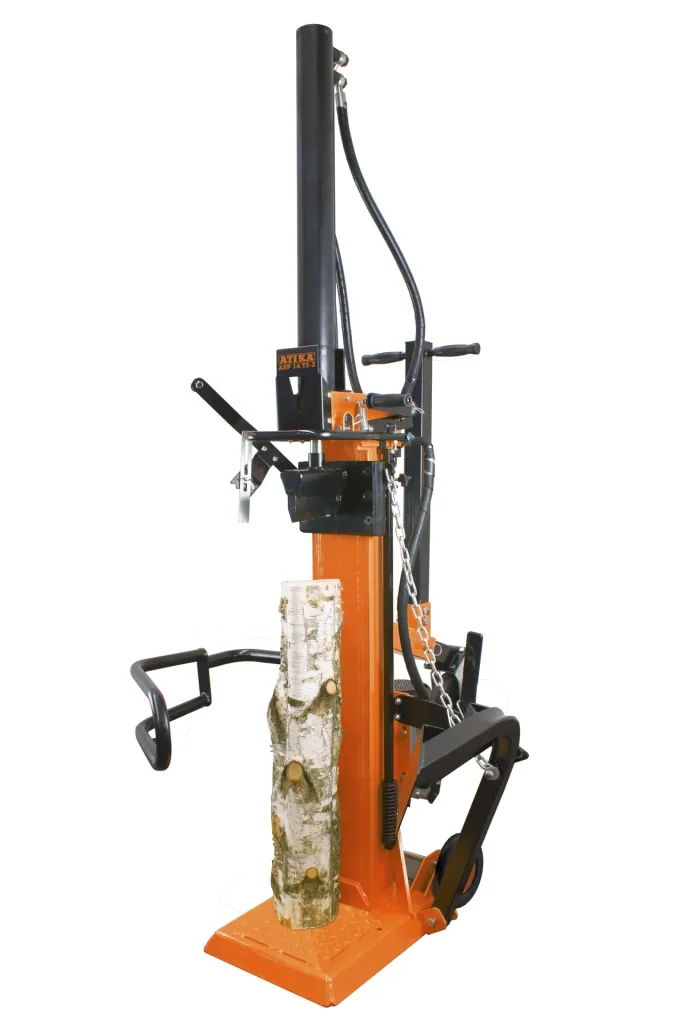

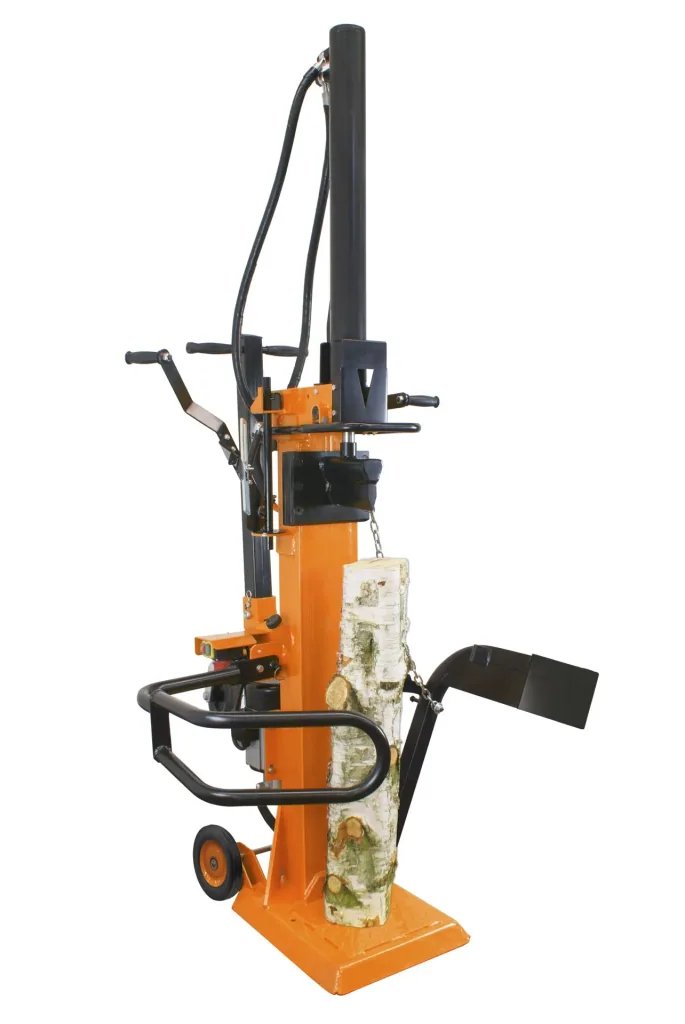

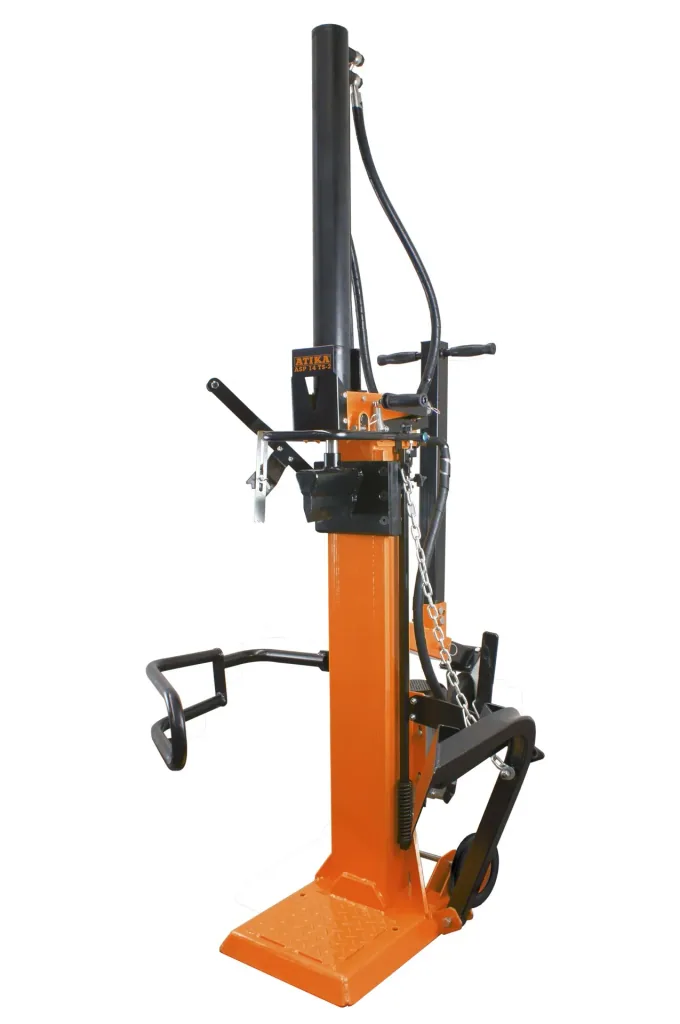

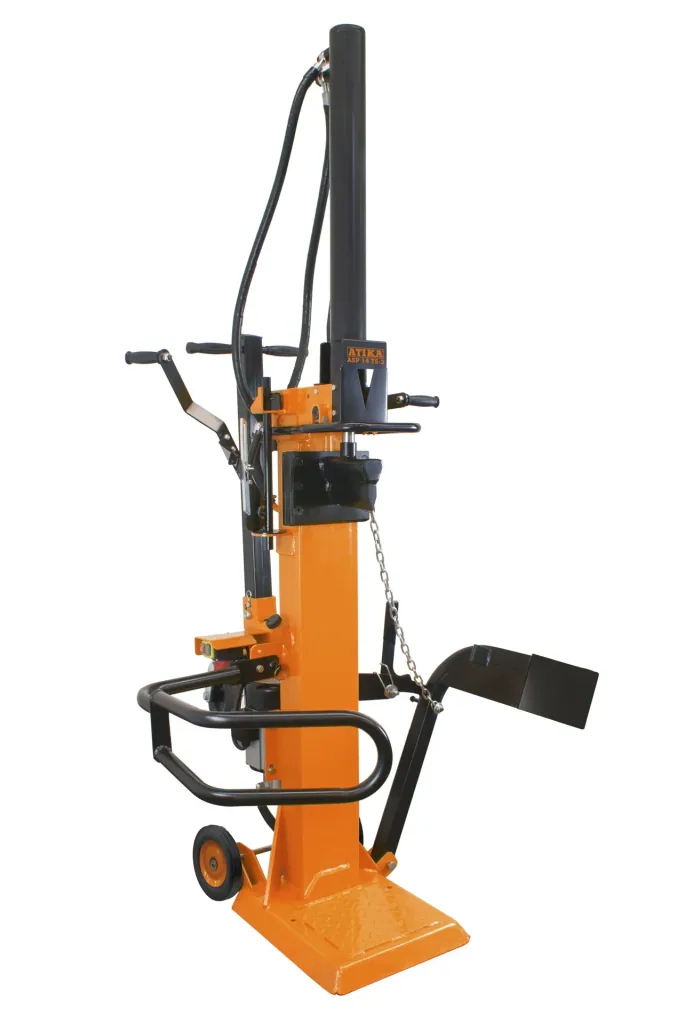

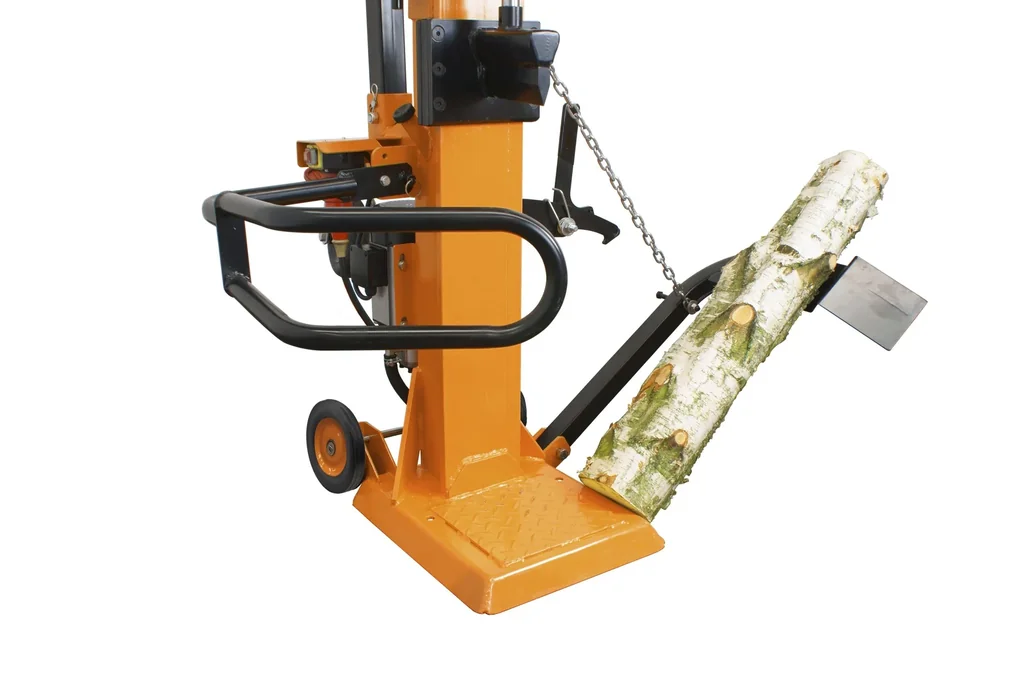

Firewood splitter "ASP 14 TS-2"

• Complies with the latest EU product safety standard EN 609:2017
• With 2 forward speed levels
• Safety requirements according to the latest European standard
• Back-friendly and easier work thanks to the low base plate and standard log lifter

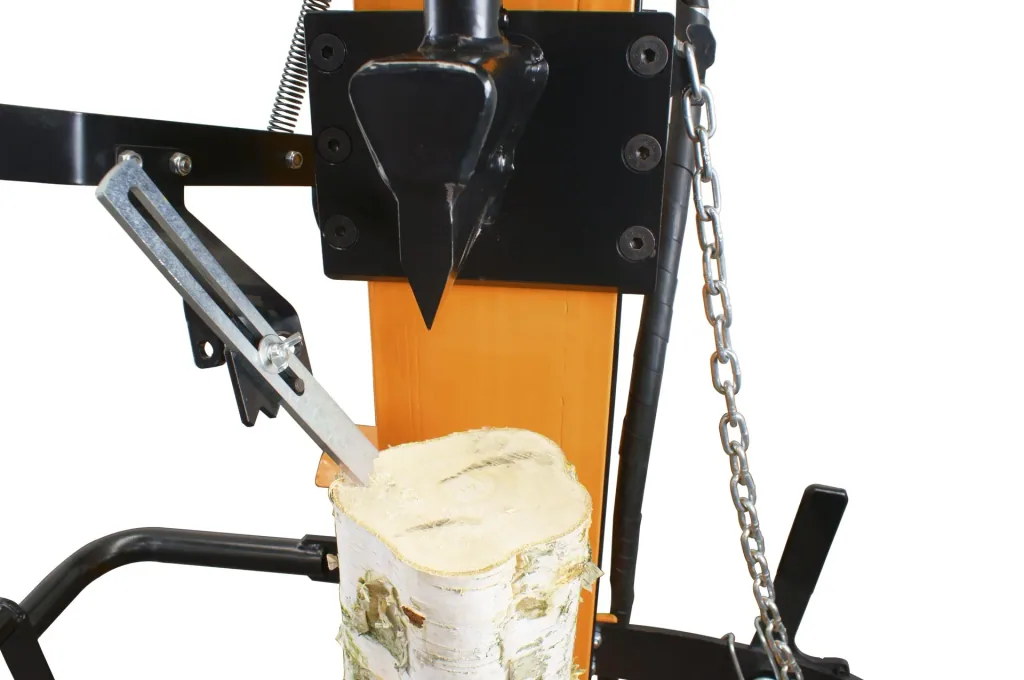

• More safety when splitting thanks to the fixing claw and protective arm
• Smooth-running two-hand safety operation
• Chassis and carrying handle for easy transport

The ASP 14 TS-2 electric log splitter from ATIKA can really get the job done with its maximum splitting force of 14 t. The reliable, user-friendly device works vertically and is safe to handle. This means you can chop up a large amount of firewood in no time.

With a splitting length of over 1 m, the firewood splitter is also suitable for large blocks of wood. It impresses with its sturdy construction and convenient two-hand operation. Use the carrying handle and chassis for moving it. With a storage compartment and anti-tip device, the splitter prevents the split wood from falling in all directions.

With this electric tool from ATIKA, splitting wood becomes your new outdoor hobby – and you're prepared for the fireplace season.

ATTENTION: There is no splitting cross for this model – these have been discontinued since 2019. prohibited!

Technical details:

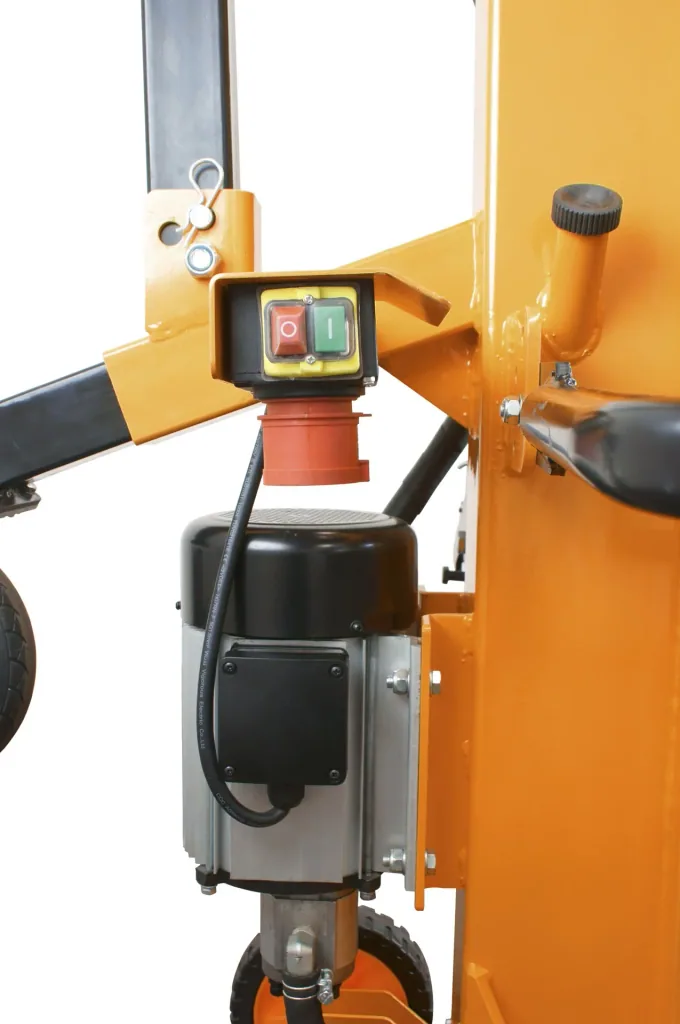

• Three-phase motor: 400 V3~ 50 Hz
• Power P1: 3500 W
• Splitting force: 140 kN (14 tons) +- 10%
• Maximum length of split material: 1040 mm
• Maximum diameter of split material: 300 mm
• Maximum splitting stroke: 850 mm
• Splitting column: 180 x 120 mm
• System pressure: 24.6 MPa (246 bar)
• Hydraulic system oil quantity: 7.5 liters
• Forward speed 1: 21.8 cm/s
• Forward speed 2: 4.2 cm/s
• Return speed: 5.2 cm/s

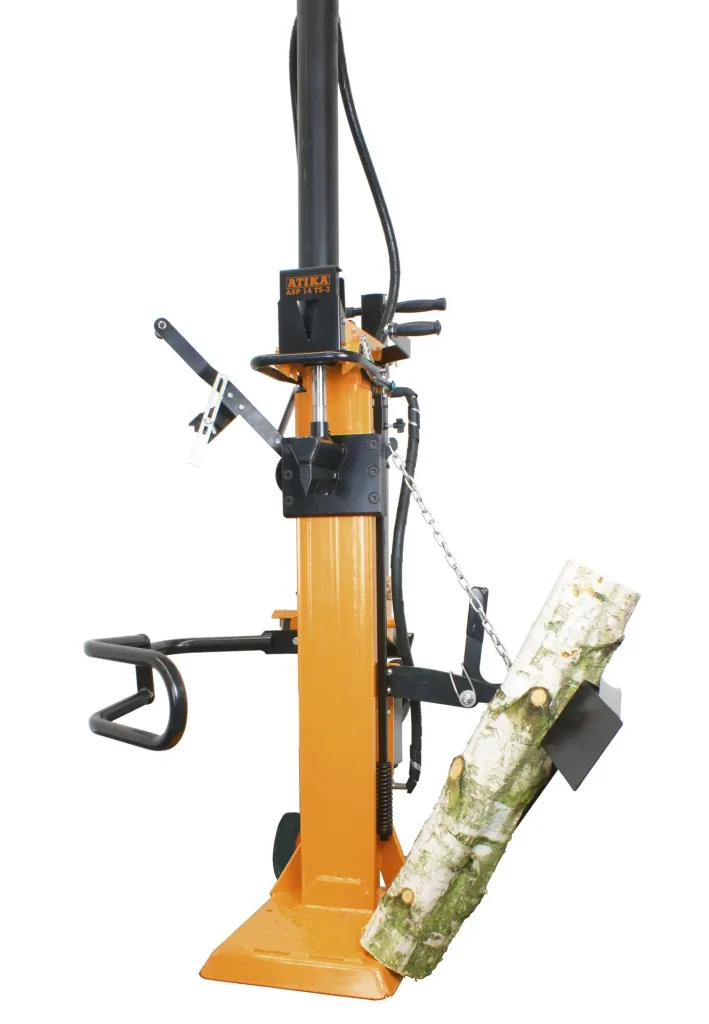

• Protection arm and Log lifter
• Wheels and transport handle
• Sound pressure level at the workplace idle LPA: <80 dB (A)

Weight: 184.9 kg

Scope of delivery:

• 1 x firewood splitter "ASP 14 TS-2"
• 1 x set of wheels
• 1 x transport handle
• 1 x protective sleeve
• 1 x log lifter
• 1 x operating instructions
