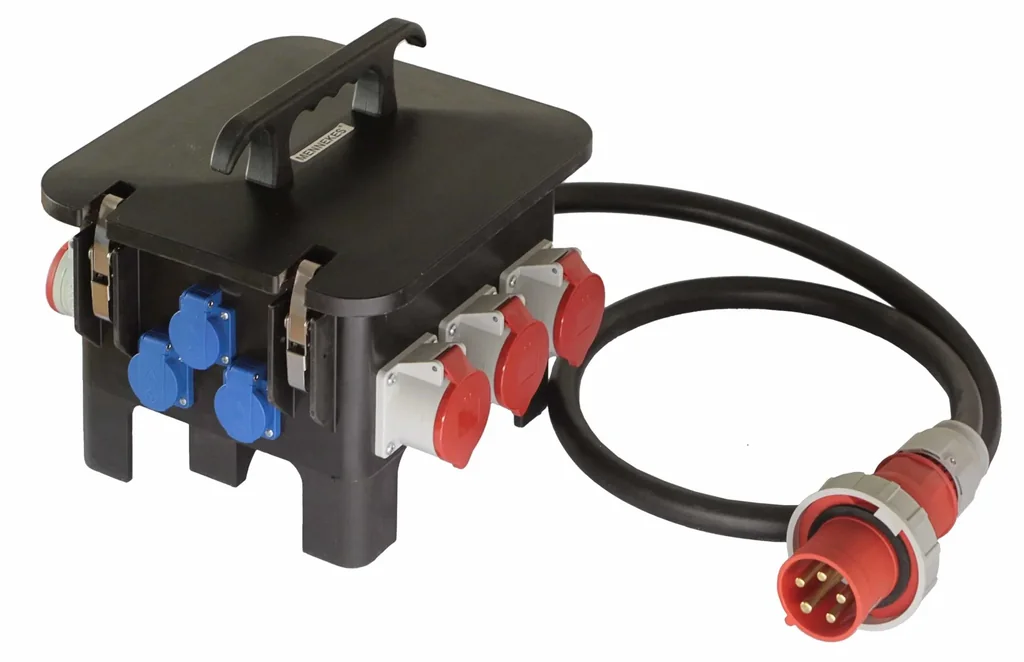

Construction site power distributor M6 connection CEE 400V, 63A, 3 sockets 230V, 3+3 CEE sockets 400V
| Artikelnummer | WF-936893 |
| Merk | AS Schwabe |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
• The power distributors are stackable and therefore extremely space-saving to store.
• Closed housing base with 77 mm ground clearance prevents water ingress.
• Easy replacement of the add-on sockets.
• Housing cover with stainless steel quick-release fasteners.
• Touch-safe – even when the cover is open – according to BGV A2.
• Additional security with a screw or padlock.
Input
• CEE 400 V, 63 A, 5-pin
• Plug with 2 m H07RN-F 5G16 heavy-duty rubber-sheathed cable
Output
• 3 230 V earthed sockets, 16 A,
• 3 CEE sockets 400 V, 16 A, 5-pin
• 3 CEE sockets 400 V, 32 A, 5-pin
Fuse protection
• 1 residual current device 63 A
• 3 miniature circuit breakers C 32 A, 3-pin
• 3 miniature circuit breakers C 16 A, 3-pin
• 2 miniature circuit breakers C 16 A, 1-pin
Technical data
• 400 V/ 230 V
| Number of 380V sockets | |
|---|---|
| Number of 380V sockets | 6 |
| Number of 230V sockets | |
| Number of 230V sockets | 3 |
