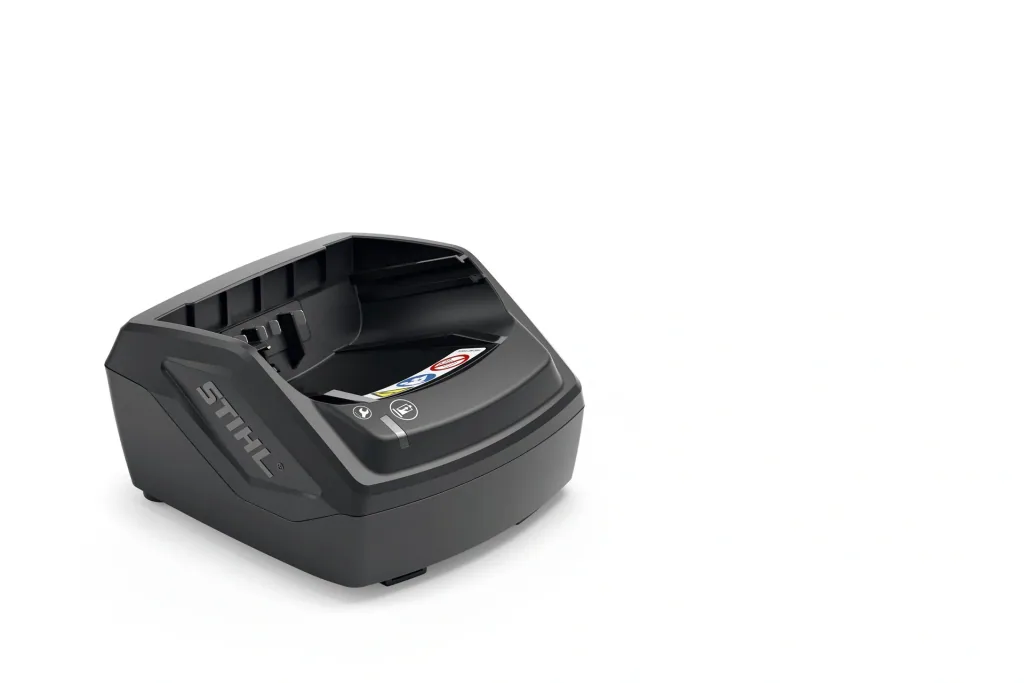

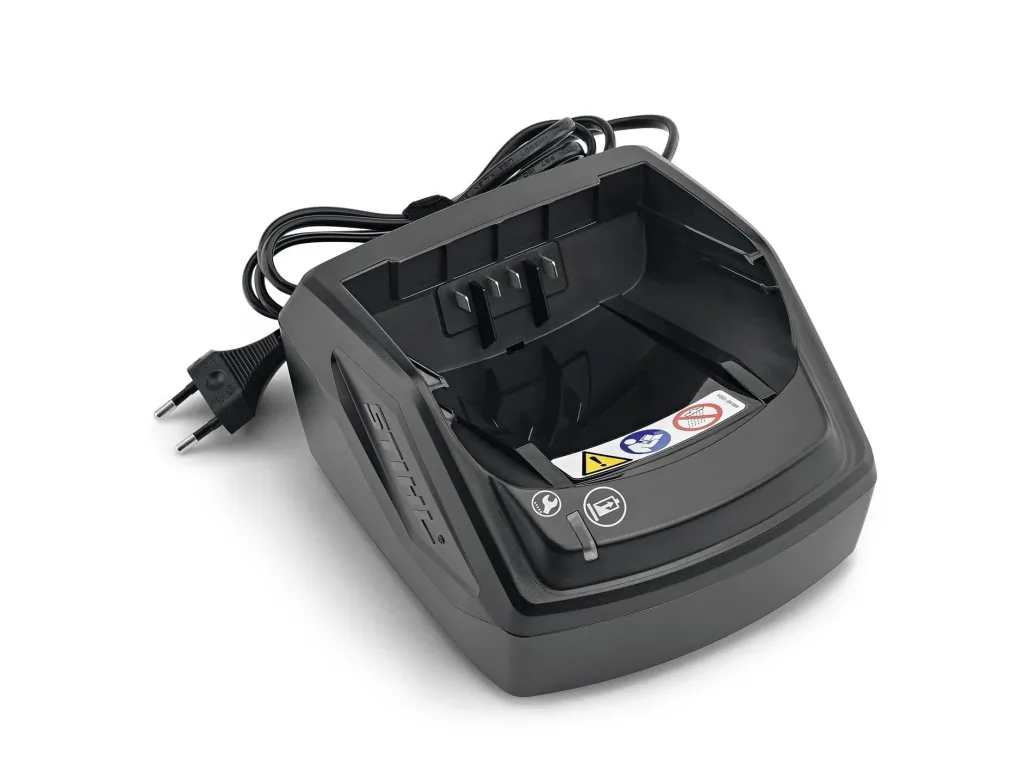

Charger AL 101

The STIHL AL 101 charger is the ideal addition to many STIHL tools: It is compatible with all batteries from the COMPACT and PRO battery systems (abbreviated to "AP" or "AK"). For maximum ease of use, the STIHL AL 101 standard charger is equipped with passive battery cooling and an LED operating status indicator. The cable can be wound up with a Velcro strap so it stays out of the way during use and transport. If you are looking for a permanent location for the STIHL AL 101 charger, you can easily mount it on the wall. The device operates on a standard 230-volt household voltage. The STIHL AL 101 weighs just 0.7 kilograms. The charging time depends on the battery used and is between 80 and 250 minutes. The charger operates with a charging current of 1.6 amps.

STIHL's battery-powered tools offer numerous other advantages besides their ecological benefits. For example, the electric motors achieve good torque even at low speeds. Noise and exhaust emissions are also a consideration: STIHL tools with EC motors operate particularly quietly and are completely emission-free. This makes them particularly flexible for use in noise-sensitive areas and indoors.

To achieve the best possible results, STIHL batteries feature intelligent electronics that communicate with both the respective tool and the charger. This monitors, for example, the battery temperature and voltage. This makes it impossible for an overvoltage to occur during the charging process.

Technical data

• Weight 0.7 kg

• Charging time AK 10 1) 80 min

• Charging time AK 20 1) 150 min

• Charging time AK 30 1) 205 min

• Charging time AP 100 90 min

• Charging time AP 200 165 min

• Charging time AP 300 250 min

• Power consumption 0.1 kW

• Charging current 1.6 A

1) Energy content according to cell manufacturer specification. To increase the service life, the energy content available in actual use is lower.
