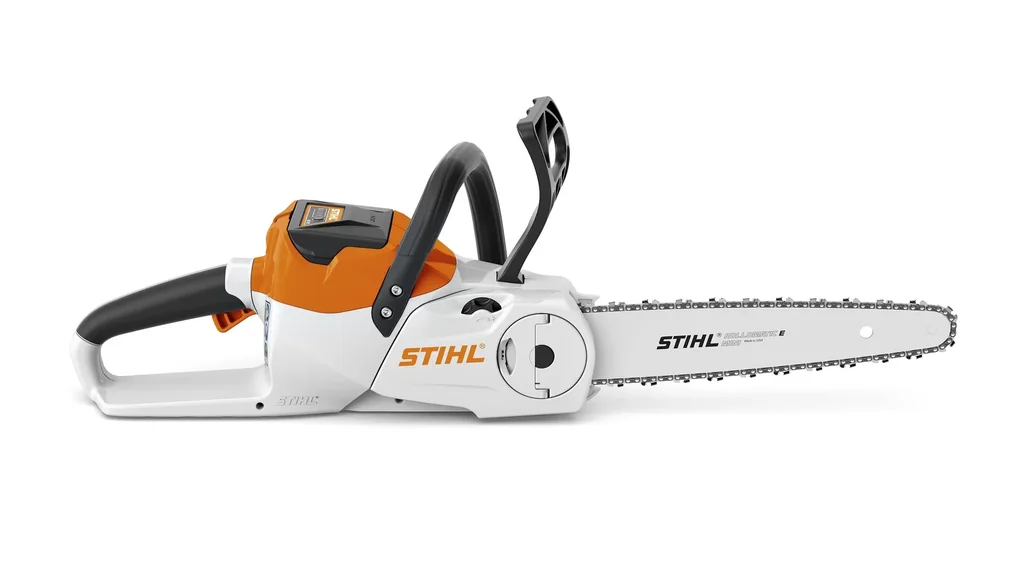

Cordless chainsaw MSA 120 C-BQ, without battery and charger

The STIHL MSA 120 C-BQ is an extremely lightweight, cordless chainsaw for maintaining your property and processing fallen wood. A PM3 saw chain is installed as standard in this cordless chainsaw, which guarantees a fine cut as well as consistently high cutting performance. A particular advantage of the STIHL MSA 120 C-BQ cordless chainsaw is that it is emission-free and operates so quietly that you don't need hearing protection.

The STIHL MSA 120 C-BQ is equipped with a quick-change chain tensioning system, allowing you to adjust and tighten the saw chain in a very short time and with just a few simple steps. Simply loosen the screw on the cover and then tension the chain using an adjusting wheel. No tools are required. Working with the STIHL MSA 120 C-BQ is significantly safer thanks to the QuickStop Super function, an additional braking system. This ensures that the saw chain stops not only when you activate the front hand guard or a strong kickback occurs, but also when you take your hand off the rear handle. Because this system stops the chain from running within seconds, the risk of cuts is significantly reduced.

The Ematic system makes the STIHL MSA 120 C-BQ a particularly sustainable tool. This is a special saw chain design. The system ensures that the chain oil is only delivered to the right places, which can reduce oil consumption by up to 50 percent.

Quiet operation

The lithium-ion tools are so quiet that no hearing protection is necessary.

QuickStop Super Function (Q)

Additional braking system for increased safety – exclusive to STIHL. The saw chain stops not only in the event of sufficiently strong kickback or when the front hand guard is actively operated, but also when the rear handle is released. The chain stops running in seconds, protecting the user.

STIHL quick chain tensioning system (B)

The STIHL quick chain tensioning system (B) makes tensioning the saw chain very easy. After loosening the screw on the chain sprocket cover, the saw chain can be tensioned quickly and easily using the adjusting wheel above it. No tools are required.

Intermediate position for battery in the tool

The battery can be inserted into the tool in two positions. In the first position, the intermediate position, the battery is firmly secured in the tool but does not touch the contacts in the tool. In the second locking position, the operating position, the battery is fully inserted and touches the contacts in the device.

Tool-free oil tank cap

The transparent oil tank and the tool-free oil tank cap make it easy and convenient to check the oil level.

Operating handle

The black soft component on the rear operating handle ensures a secure and firm grip in all working positions. The gearshift lever can be unlocked using the side lock button.

EC Motor

The EC motor impresses with its low weight, compact dimensions, and virtually wear-free mechanics.

Ematic System

The STIHL Ematic System consists of a STIHL Ematic or Ematic S guide bar, a STIHL Oilomatic saw chain, and a flow-adjustable or reduced-flow oil pump. The special design of the bar and chain ensures that every drop of chain oil reaches exactly where it's needed for lubrication. Oil consumption can be reduced by up to 50%.

Two-hand operation

The ergonomically shaped handlebar and the comfortable rear control handle with soft components enable comfortable, effortless, and safe work in all positions.

AL 101 Charger (only included in the set)

Charger for the STIHL COMPACT cordless system. With operating status indicator (LED) and cable storage with Velcro. The charger can be wall-mounted if required.

AK 20 Battery (only included in the set)

Compact lithium-ion battery for the COMPACT cordless system with a voltage of 36 V and an output of 118 Wh. Running time depends on the device type. With charge status indicator (LED). Compatible with the chargers AL 101, AL 100, AL 300 and AL 500.

Technical data

• Rollomatic E-rail, cutting length: 30 cm

• Rated voltage: 36 V

• Weight 1): 2.7 kg

• Sound power level 2): ​​94 dB(A)

• Vibration value left/right 3): 3.4/3.2 m/s²

• STIHL Oilomatic saw chain type: Picco Micro 3 (PM3)

• Saw chain pitch: 1/4"P

• Recommended battery: AK 20

• Battery technology: Lithium-Ion COMPACT

• Battery runtime with AK 10 4): up to 18 min

• Battery running time with AK 20 4): up to 40 min

• Battery running time with AK 30 4): up to 55 min

1) With guide bar and saw chain, without battery and saw chain oil

2) K value according to RL 2006/42/EC = 2.0 dB(A)

3) K value according to RL 2006/42/EC = 2 m/s²

4) Running times are approximate values ​​and can vary depending on the application.
