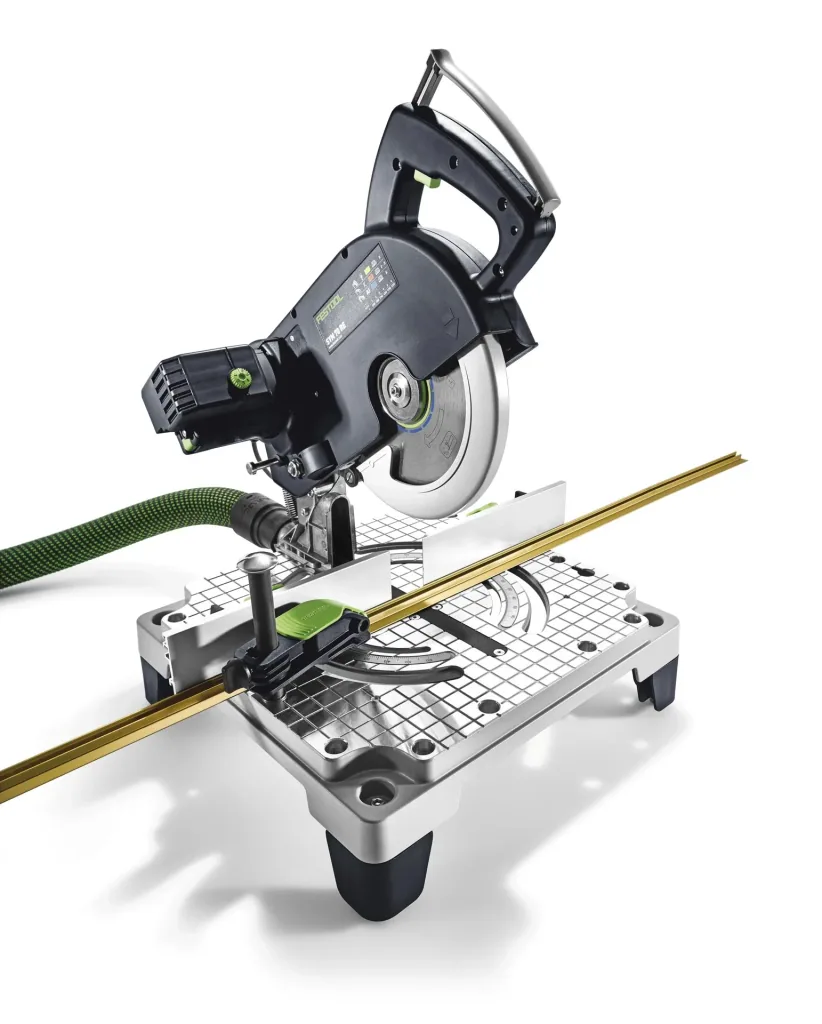

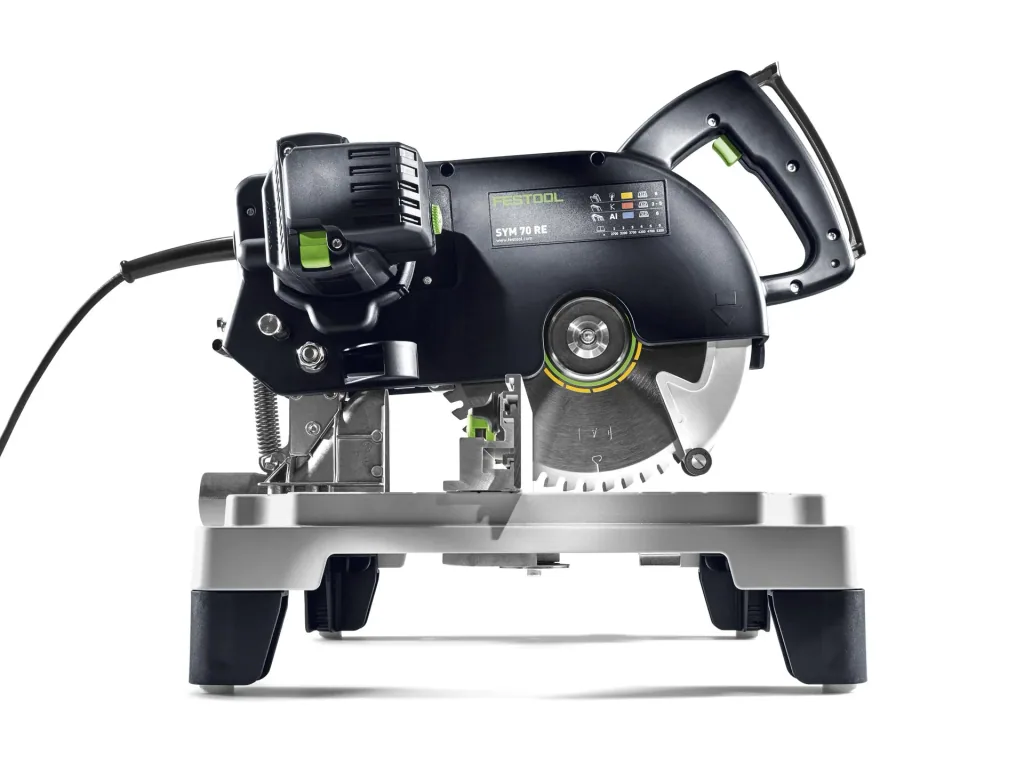

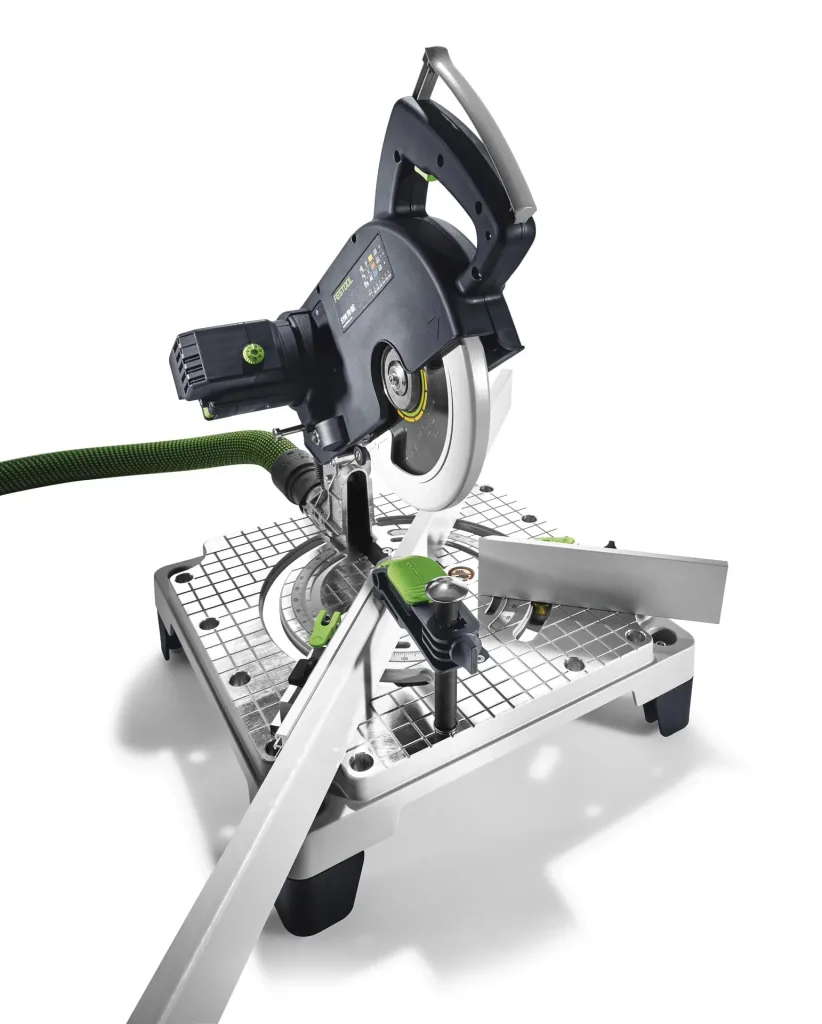

SYM 70 RE Symmetric strip saw

The miter saw.

Measuring angles, calculating angle bisectors, laboriously adjusting the cutting angle on the miter saw, and sawing: a time-consuming task. But not with the SYMMETRIC from Festool. Now you can saw strips quickly and without calculations – for both inside and outside angles.

• Patented, symmetrically running stop system

• Easy transfer of angles with a bevel, always sawing at the half-angle without calculations

• Simple and tool-free stop clamping

• Intermediate feet for raising the SYM 70 to the height of a SYSTAINER SYS 1: long workpieces can be comfortably supported while working

• Work according to the material thanks to MMC Electronic

• Left- and right-hand operation thanks to the slim, central cross-cutting unit

Product highlights

• Achieve the best results faster:

Up to 70% time savings when determining and setting the angle thanks to the patented, symmetrically running stop system.

• Comfortable and Safe:

Adjustable speed and soft start. Safe handling thanks to left- and right-hand operation.

• Better in the system:

Countless possibilities with system accessories such as an additional stop for sawing undercut strips and feet for raising the SYM 70 to the height of a SYSTAINER SYS 1.

Product details

• Strip saw SYMMETRIC SYM 70: For perfect skirting boards

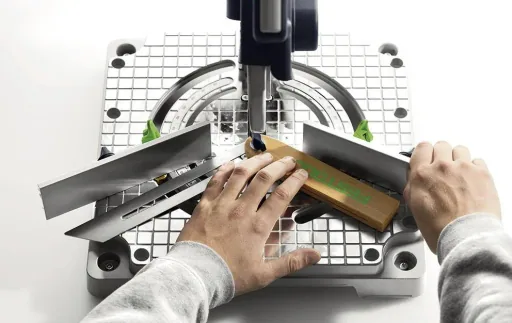

Measure the angle with the bevel on the wall, transfer it to the patented stop system, saw, done. External angles up to 60°, internal angles up to 68° possible.

• Left- and right-handed operation

The miter saw is symmetrically designed so that left- and right-handed users can saw both internal and external angles safely.

• Angle adjustment

With the SYMMETRIC, external angles up to 60° and internal angles up to 68° can be created.

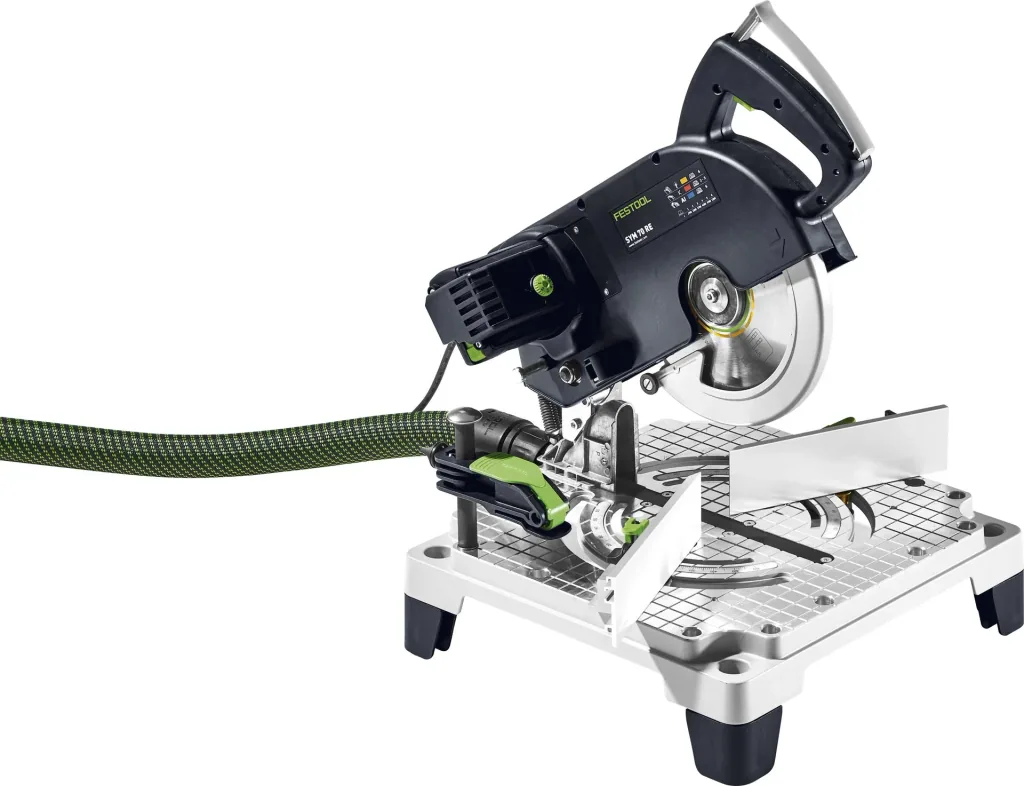

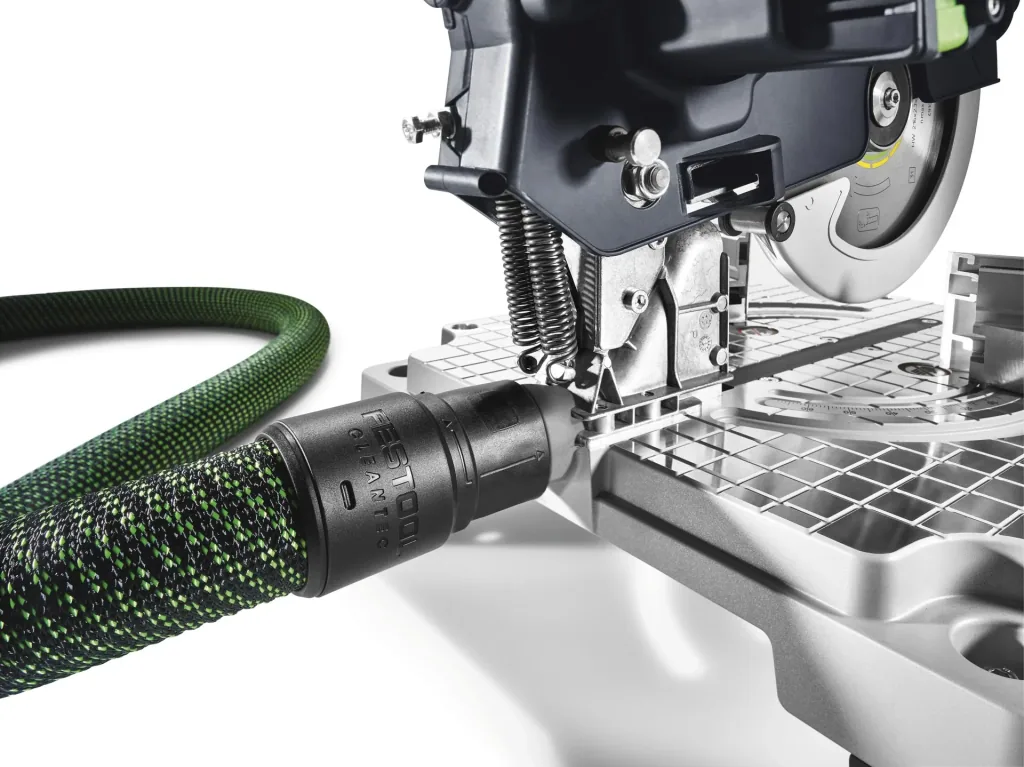

• For perfect extraction

The CLEANTEC connection system with integrated bayonet lock ensures a secure hold of the suction hose. Suction hoses with a diameter of 27mm or 36mm can be used.

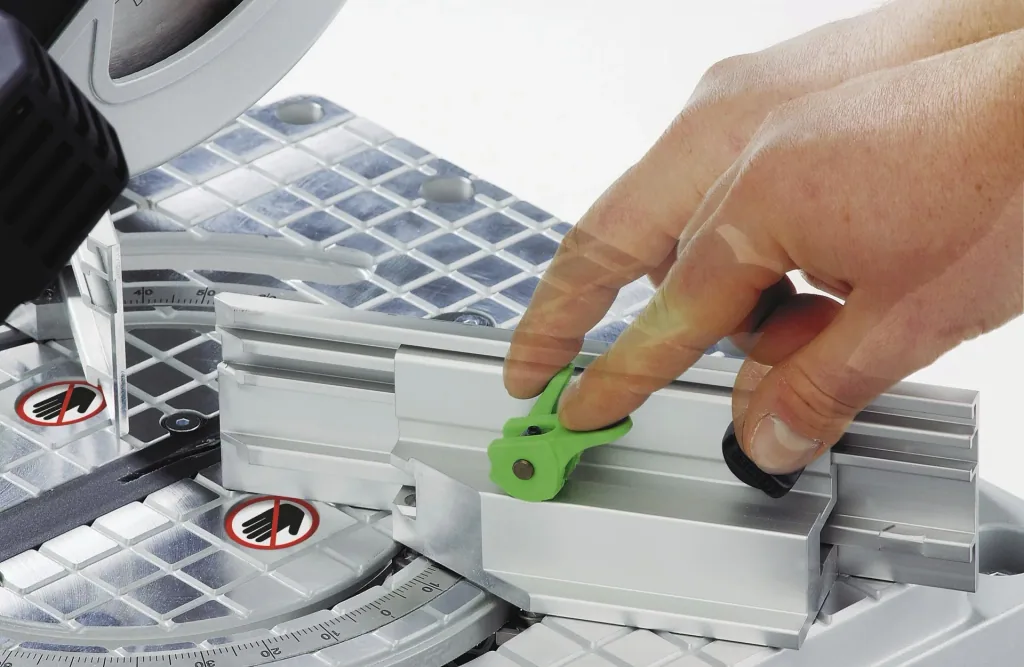

• Firm hold

To ensure that the set angle does not slip during work, the stop jaws of the SYMMETRIC can be clamped. Whether it's an interior angle of up to 68° or an exterior angle of up to 60°, everything stays in the correct position.

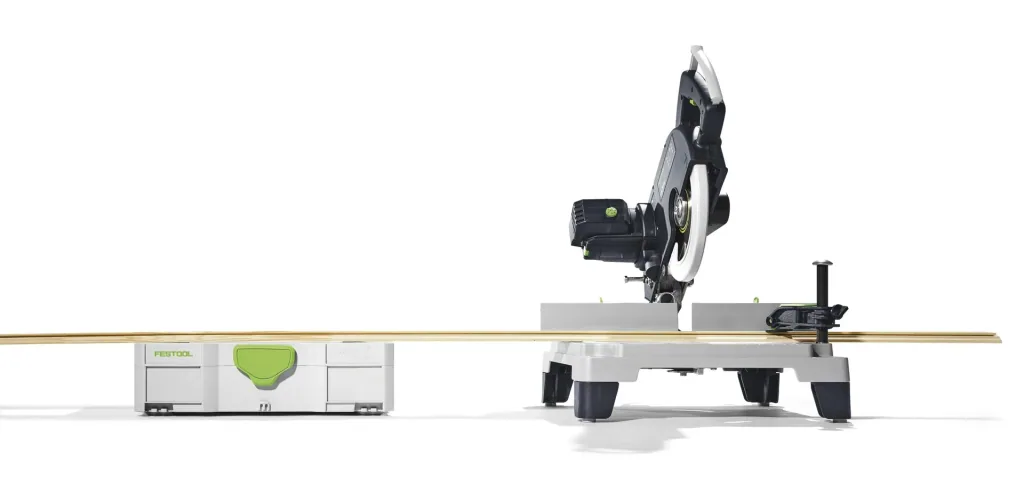

• Clever accessories

The additional feet raise the SYM 70 work table to exactly the height of a SYSTAINER SYS 1. This allows it to be used as a work table, and long workpieces are securely supported.

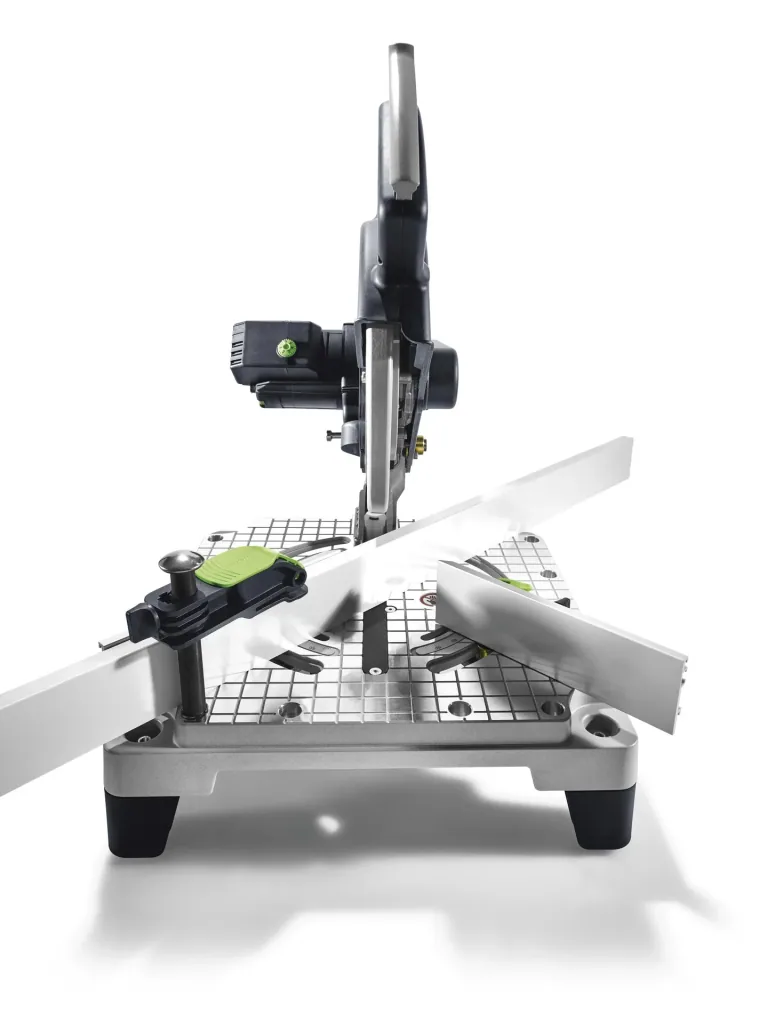

• Maximum hold

The workpiece clamp can be attached to various positions on the SYM 70 work table – for simple and secure fixing of workpieces in various positions.

• Main areas of application

• Bisecting skirting boards – without calculations

• Sawing glass, cover, and end strips to precise angles without calculations

• Sawing obtuse and acute angles with ease

Features

• Antistatic function

Mobile dust extractors and machines with antistatic function to prevent static charging while working.

• MMC Electronic Multi-Material Control

Material-appropriate work: "Multi Material Control" power electronics with adjustable, constant speed and temperature monitoring.

• FastFix

Facilitates the changing of tools when milling, sawing, planing, sanding, drilling, and screwdriving.

• CLEANTEC

Integrated bayonet lock as a connecting element between the extractor and tool.

Technical data

• Power consumption: 1,150 W

• Idle speed: 2,700 – 5,200 rpm

• Saw blade diameter: 216.00 mm

• Internal angle: 0 - 68 °

• Outside angle: 0 - 60 °

• Max. bar height: 70.00 mm

• Max. bar width: 80.00 mm

• Dust extraction connection Ø: 27/36 mm

• Weight: 9.60 kg

Noise and vibration values

• Sawing: Total vibration mean value ah: 2.50 m/s²

• Sawing: Standard series EN 60745: 61029-2-9

• Sawing: Uncertainty (noise) K: 3.00 dB

• Sawing: A-weighted sound power level Lw: 104.00 dB(A)

• Sawing: A-weighted sound pressure level Lp: 97.00 dB(A)

• Sawing: Uncertainty (vibration) K: 1.50 m/s²

Scope of delivery

• HW fine-tooth saw blade 216 x 2.3 x 30 W48

• Precision bevel SM-SYM 70

• Raiser EH-SYS-SYM 70

• Workpiece clamp

• Allen key SW 5
