Megasat flat antenna D1 Profi-Line - Suitable for 1 subscriber
Gegarandeerd Veilig afrekenen
| Artikelnummer | WF-925761 |
| Merk | Megasat |
Recensies
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te maken
Vragen
Er zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
0 reviews
- The flat antenna is the ideal solution for receiving satellite television in a space-saving and unobtrusive manner.
- Its flat, compact, and easy-to-install design makes the antenna (almost) invisible.
- The robust and stable housing protects the high-quality electronics inside from the elements.

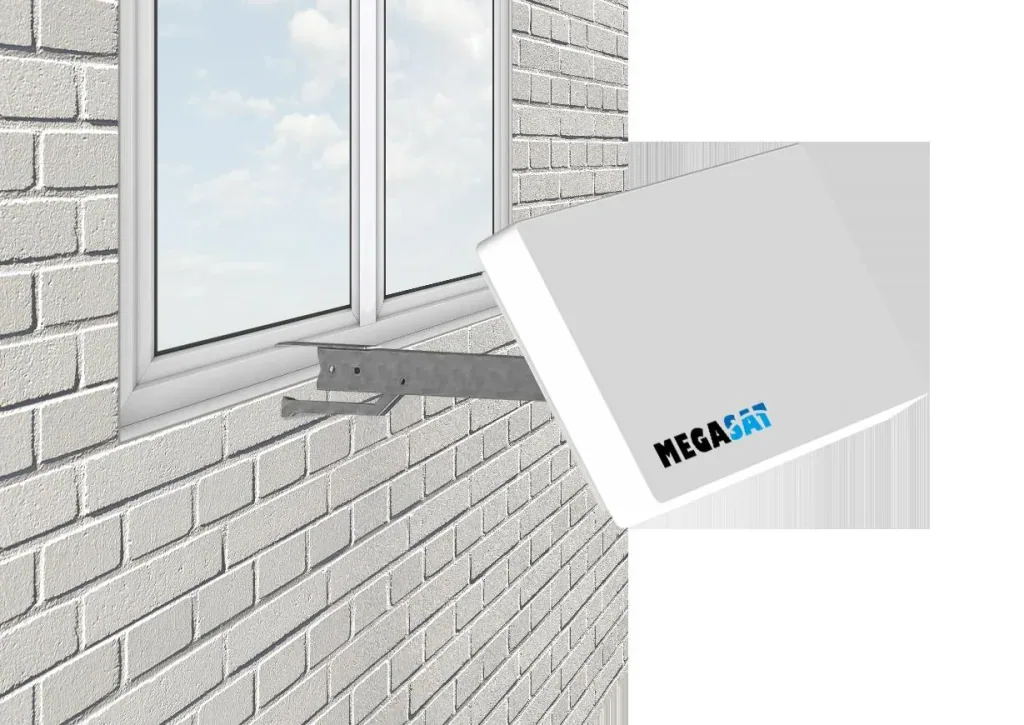

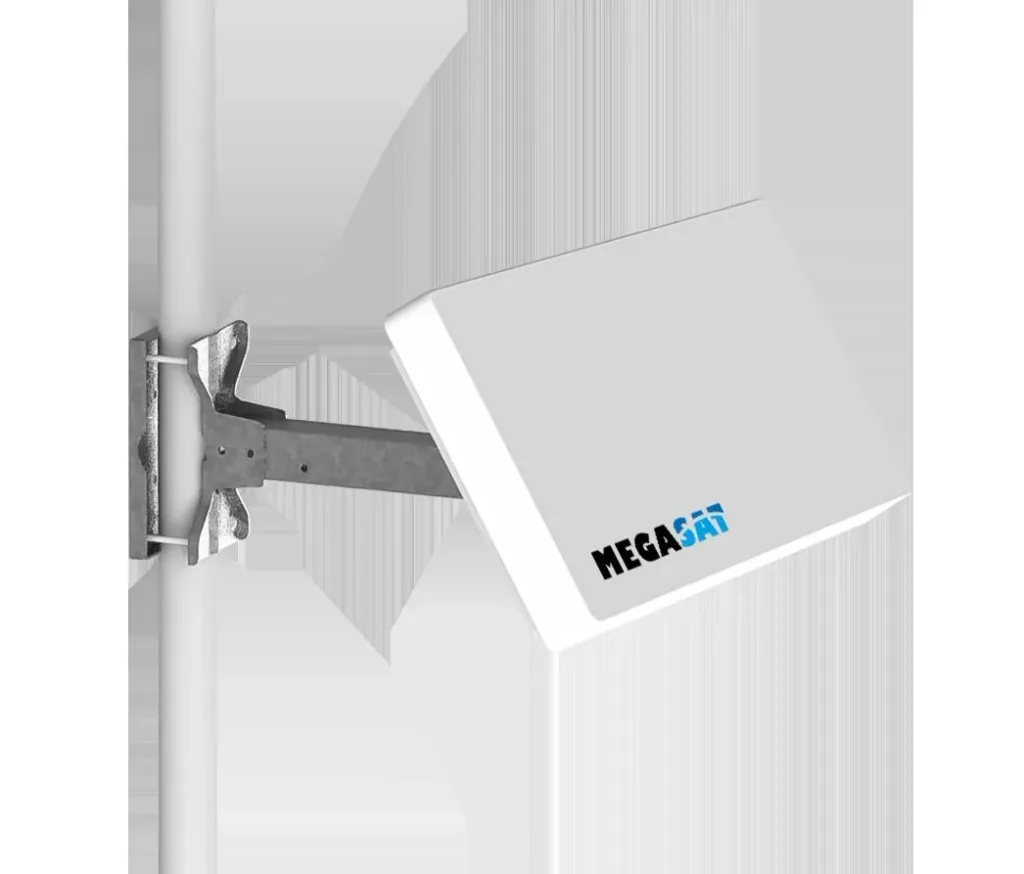

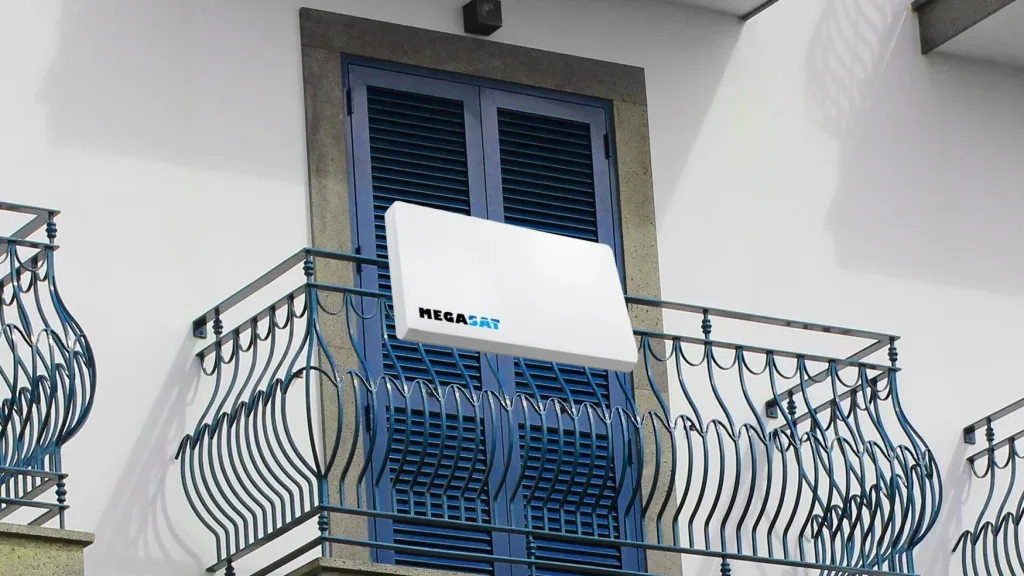

- The reception performance is equivalent to a conventional 60 cm parabolic dish and is perfect for mounting on the balcony or directly on the house wall.
- A universal LNB is already integrated and is connected directly to the receiver with a coaxial cable. If necessary, the LNB can be replaced in just a few simple steps.
Technical data
- Input frequency: 10.7 - 12.75 GHz
- Polarization: Linear (vertical / horizontal)
- Antenna gain: 33 dBi @ 12.75 GHz
- LNB output: 1, 2 or 4
- LNB output frequency: 950 - 1,950 MHz / 1,100 - 2,150 MHz
- L.O. Frequency: 9.75 GHz / 10.6 GHz
- LNB gain: min. 55 dB / max. 66 dB
- Gain flatness: 5 dB
- Power supply: 12 - 14 V DC (V) / 16 - 19 V DC (H)
- Current consumption: max. 160 mA
- Operating temperature: -20° C - +60° C
- Storage temperature: -40° C - +80° C
Dimensions
- Dimensions: 525 x 290 x 68 mm (without LNB)
- Dimensions: 525 x 290 x 145 mm (with LNB)
Weight 4.5 kg
Scope of delivery
- Flat antenna
- LNB
- Wall bracket
- Mast/balcony bracket
- Window bracket
- Tools
- Screw set
- Compass
- Operating instructions
| Number | |
|---|---|
| Number | 1 |
| Connection type | |
| Connection type | LNB |
