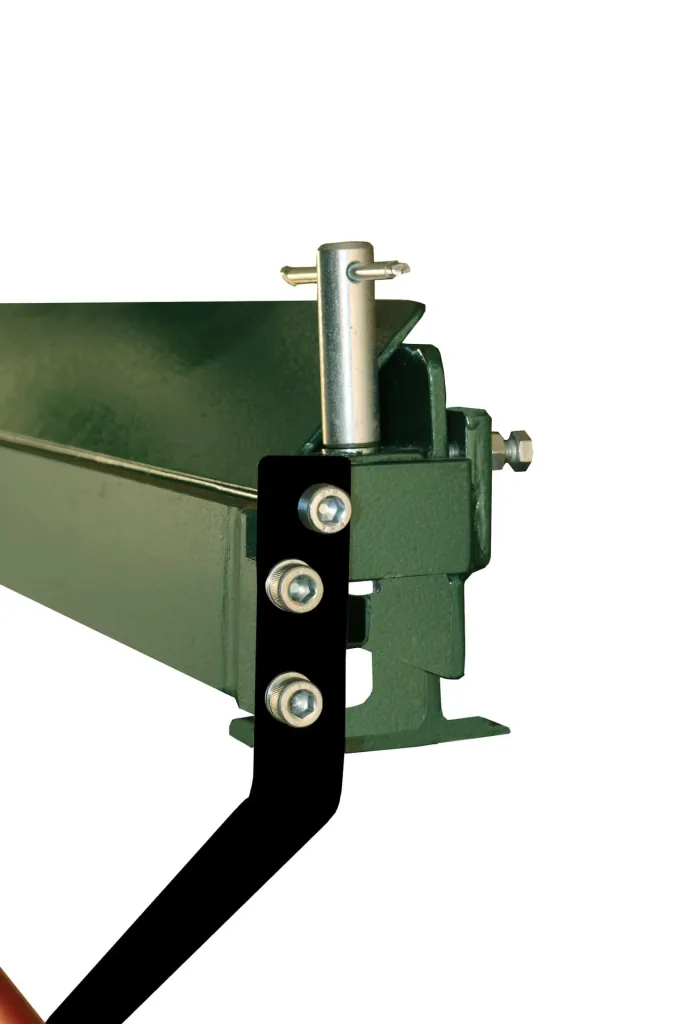

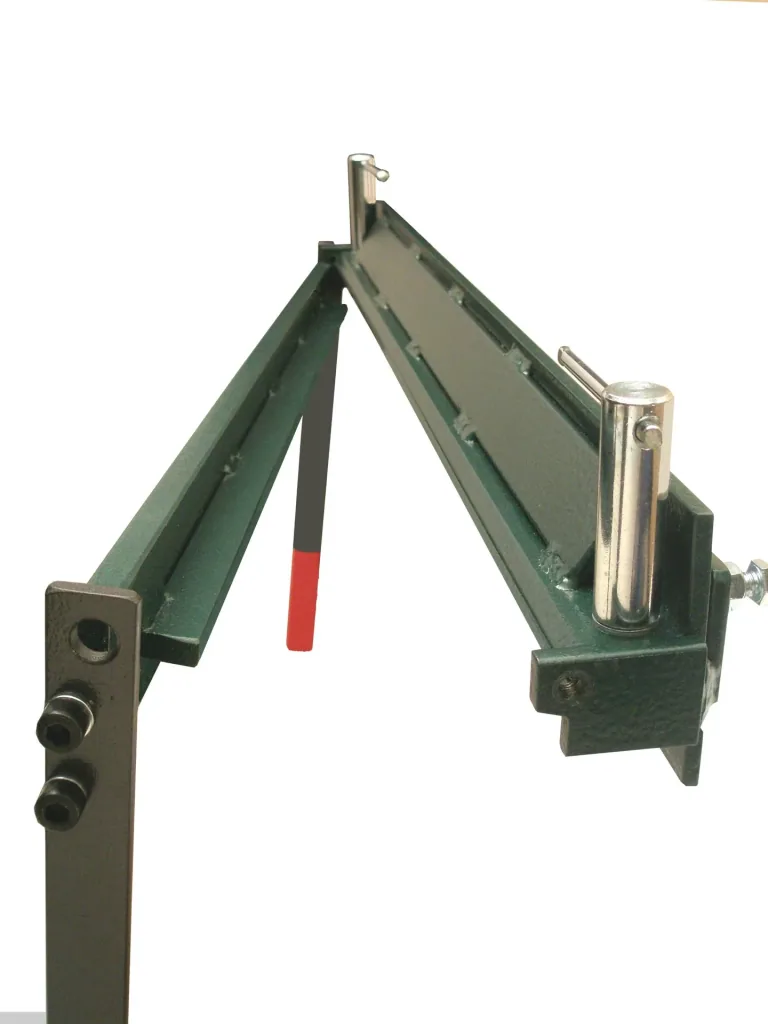

Bending machine with bending beam, degree scale and guillotine shears
| Artikelnummer | WF-922822 |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
The craftsman's folding machine is designed for use by craftsmen and do-it-yourselfers.
With reinforced bending beam, degree scale, and special bracket for the bending beam.
Simple and quick assembly by clamping in a vice or attaching without a vice to the workbench.
Easy removal, even of closed workpieces. Multiple bending operations are possible without removing the workpiece.
Technical Data
• Working width 1000 mm
• Reinforced bending beam
• Max. bending angle 135°
• Bending operations: Only for galvanized sheet steel up to max. 0.6 mm
• Weight: 35 KG
Delivered without vice.
Guiding shears
• For quick work, clamp in a vice or mount firmly on a workbench.
• Cuts sheet steel up to 1.5 mm and zinc, copper, and aluminum sheets up to 2.0 mm and stainless steel up to 1.0 mm.
• Blade length 140 mm
• Allows easy sheet passage while working.
• Weight: 6.5 kg
| Working width | |
|---|---|
| Working width | 1,000 mm |
| Maximum bending angle | |
| Maximum bending angle | 135° |
| External dimensions | |
| External dimensions | 1,160 x 280 x 120 |
| Weight | |
| Weight | 35 kg |
