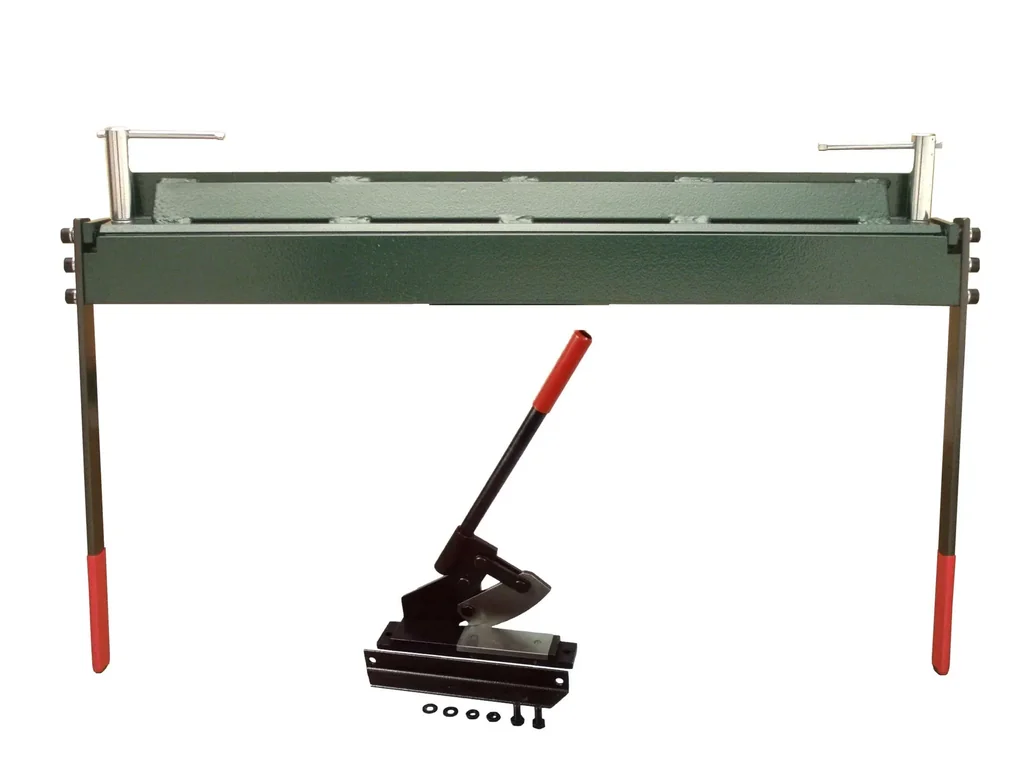

Folding machine with guillotine shears
| Artikelnummer | WF-922820 |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
For automotive sector, ventilation technicians, installers, plumbers, do-it-yourselfers.
Easy and quick removal of a closed profile by removing the thumb screws
Repeated bending at different distances is possible without removing the sheet from the device
Technical specifications

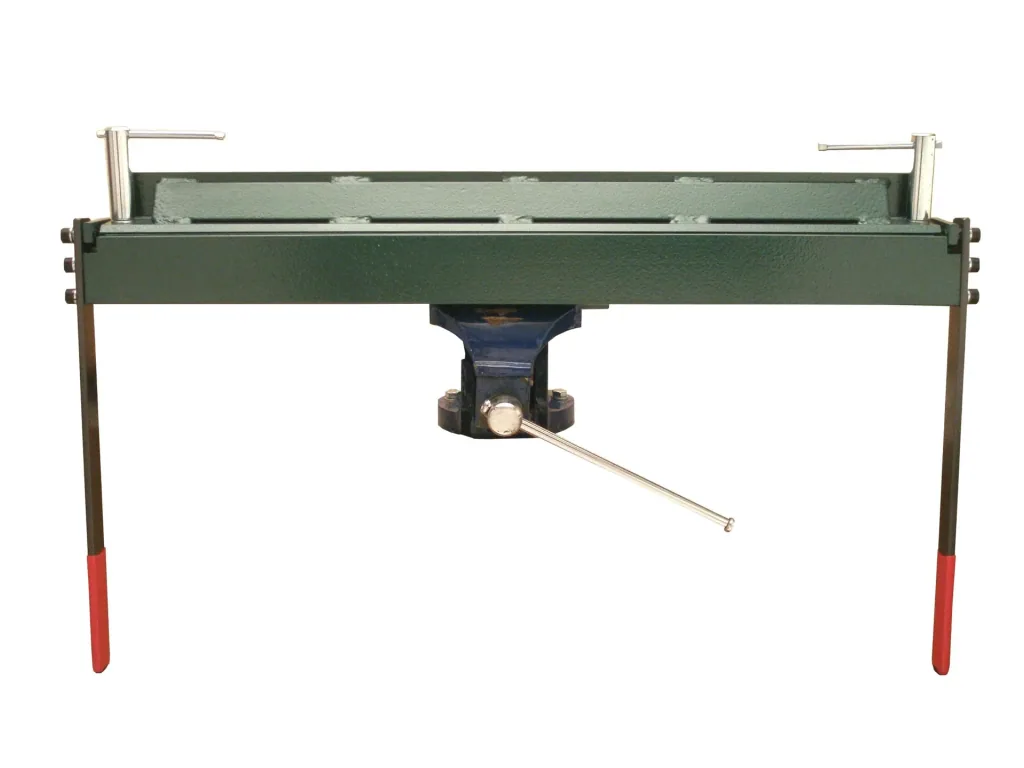

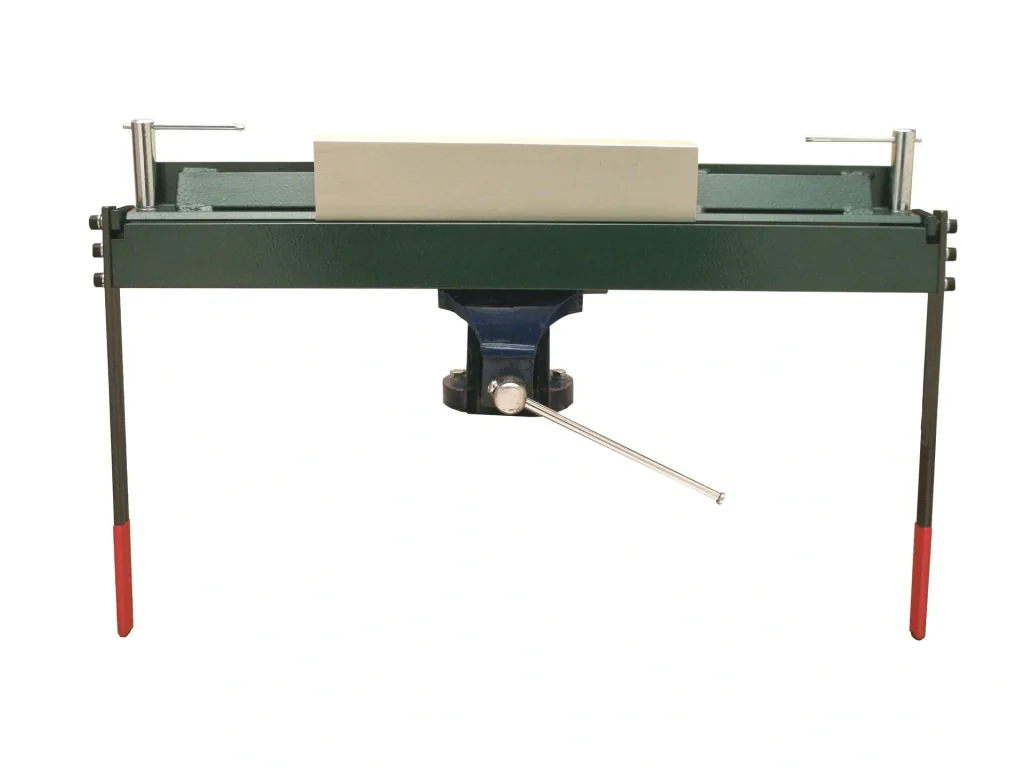

Bending machine

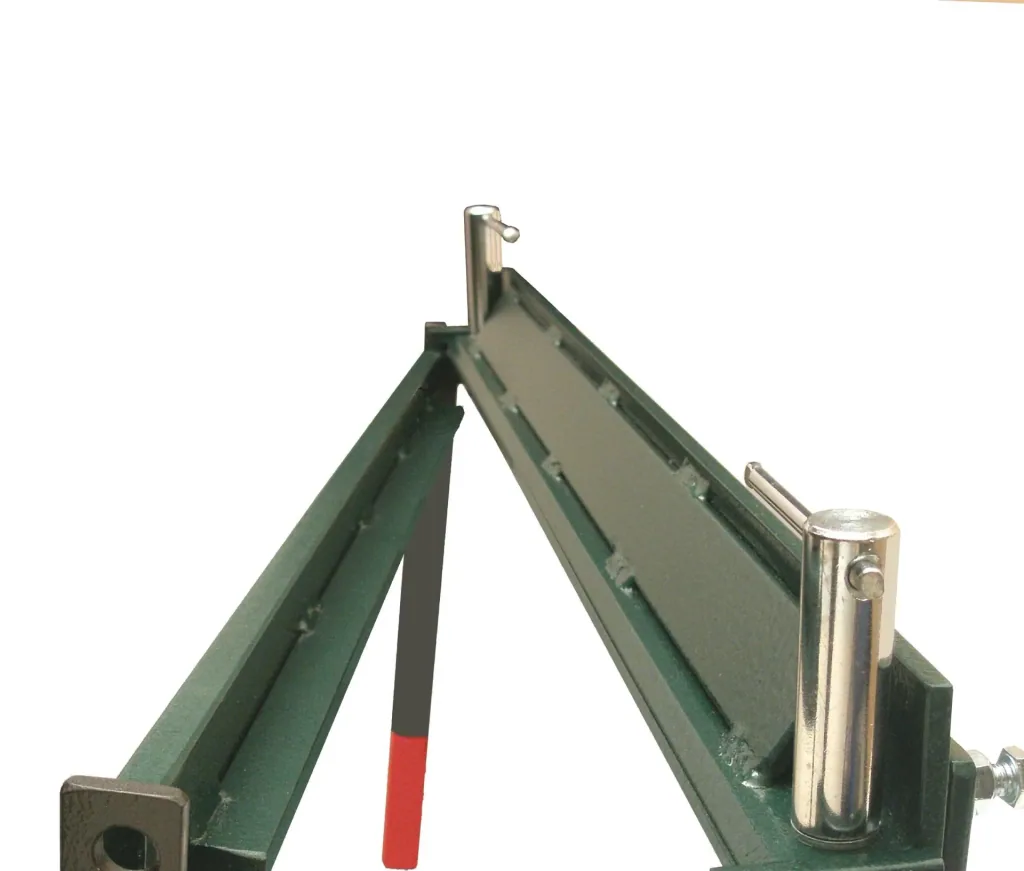

• Reinforced bending beam
• Working width 630 mm
• Max. bending angle 120°
• Bending:
Steel sheet up to 1.2 mm, zinc sheet up to 1.5 mm, copper sheet up to 1.5 mm, aluminum up to 1.5 mm, stainless steel sheet up to 0.8 mm
Weight: 15.0 kg
Supplied without vice

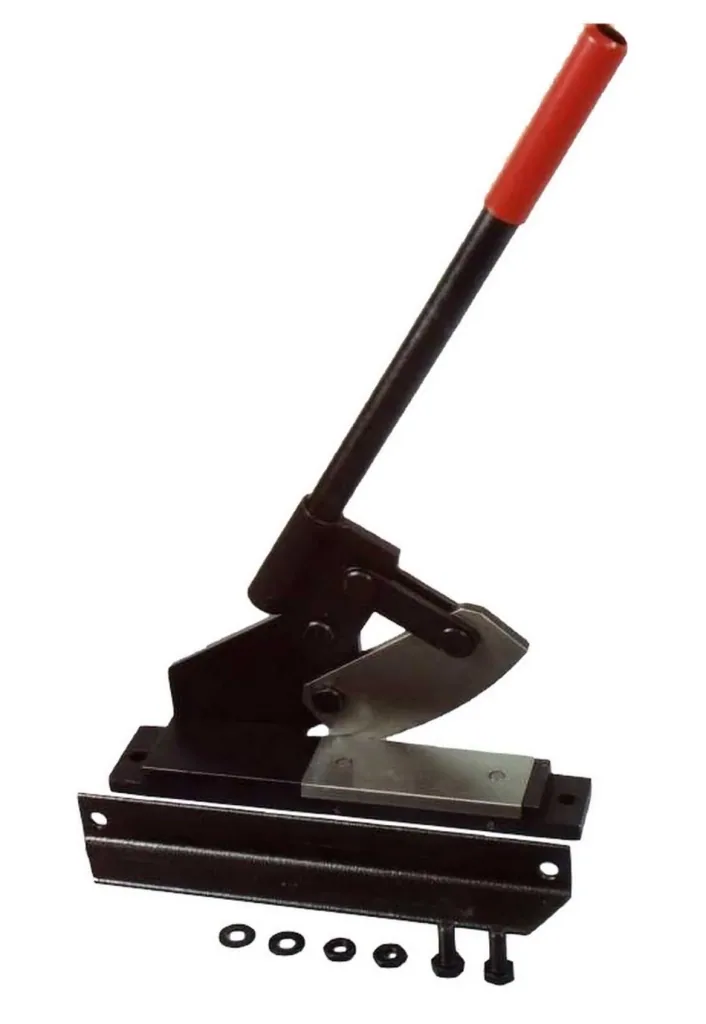

Guiding shears
• For quick work, clamp in a vice or fix on a workbench mount..
• Cuts steel sheet up to 1.5 mm and zinc, copper and aluminum sheets up to 2.0 mm in length.
• Blade length 140 mm
• Allows easy sheet passage during work.
Weight: 6.5 kg
| Working width | |
|---|---|
| Working width | 630 mm |
| Drive | |
| Drive | Manual |
| Maximum bending angle | |
| Maximum bending angle | 120 |
| Material thickness | |
| Material thickness | 1.5 mm |
| Weight | |
| Weight | 21.5 kg |
| Carrying case | |
| Carrying case | No |
