CrystalSky 5,5" 1000cd Android Monitor mit GO App

DJI CrystalSky

Designed specifically for outdoor aerial photography, the new integrated CrystalSky monitor features an ultra-bright, crystal-clear screen that's easy to read even in direct sunlight. It's been designed from the ground up to work seamlessly with the DJI GO app for complete control.

Ultra-Bright

Up to 1000 cd/m²* brightness gives the CrystalSky more than twice as bright as regular mobile devices.

On-screen details are clear and crisp, and colors are extremely vibrant.

A dedicated mode for increased brightness under direct sunlight has been specially designed to ensure comfortable viewing even in direct sunlight.

Smooth Video Playback

The CrystalSky monitor uses optimized video decoding to decode videos in real time.

Due to limited access to software on smartphones and tablets, their video decoding is often suboptimal.

During the playback of photos and videos transmitted by the camera, issues such as image instability and long latency can occur.

The CrystalSky monitor features optimized decoding for smooth, real-time videos with minimal latency.

Customizable UI and DJI GO

A completely redesigned UI removes unnecessary apps and software in Android and is resistant to viruses and malware.

This ensures constant optimal performance of the CrystalSky monitor.

The embedded DJI GO app has all the features of DJI GO, including aircraft parameters, camera control, footage manager, and playback.

By using offline maps, maps can now be used outside of Wi-Fi range.

*Supports DJI GO, DJI GO 4, and DJI Pilot.

Power Supply

A secondary external 4920 mAh battery gives the CrystalSky monitor a longer operating time than comparable devices.

The battery supports Quick Charge and controls the discharge rate even in low temperatures.

When used with the 7.85" and 5.5" screens, a maximum operating time of 4-5 and 5-6 hours is possible, respectively.

Dual SD Card Slot

Equipped with a dual micro SD card slot, the CrystalSky monitor's memory is expandable, and recordings saved to the SD card can be played back directly.

The micro SD cards also serve as data backup.

With the integrated editing tools in the DJI GO app, high-quality post-production can be performed quickly and the final results can be shared on social networks.

The CrystalSky monitor supports H.264 and H.265 video decoding, allowing playback of files at 60 and 30 frames per second, respectively.

The videos can be accessed directly via the HDMI port.

Connections and Network

The HDMI port on the CrystalSky monitor enables playback of videos in 4K on VR headsets and other display devices.

Integrated dual-band WiFi is capable of connecting to mobile device Wi-Fi networks and Wi-Fi hotspots, and is also compatible with 4G dongles and USB storage devices through the integrated USB-A port.

When connected to the internet, the CrystalSky monitor has easy access to updates, live streaming, data synchronization, and much more.

File sizes are optimized to reduce mobile data consumption.

Integrated Micro-USB and USB-C ports make it extremely easy to connect the CrystalSky monitor to remote controls and other devices.

Optimized for Extreme Temperatures

Most devices are designed for operation in conventional temperatures. The CrystalSky monitor's external battery is specifically designed for extreme temperatures. The monitor is capable of operating in temperatures as low as -20°C and, thanks to its internal cooling system, even at temperatures as high as 40°C.

Compatibility with DJI Flight Systems

The CrystalSky monitor connects instantly to the Inspire 2, the Inspire 1, the Phantom 4 series, the Phantom 3 Professional and Advanced, the Matrice series, the Mavic, and the Osmo series (except the Osmo Mobile).

This is possible via USB or Wi-Fi.*

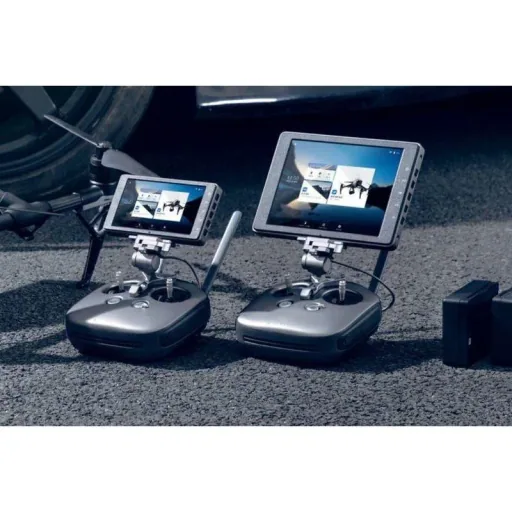

The CrystalSky can also be easily attached to the Cendence remote controller without the need for an additional mount.

* Mount for remote control recommended.

Technical specifications

• Display: Multi-touch display with IPS panel

• Resolution: 1920x1080

• Brightness: 1000 cd/m2

• Operating system: Android

• App: DJI GO, DJI GO 4, DJI Pilot

• Memory: ROM 32GB + RAM 4GB

• Connections: HDMI, SD card slot, USB Type-C

• Connection: WiFi: 2.4GHz, 5.2&5.8GHz, 802.11b, 802.11g, 802.11n (HT20), 802.11a 4G dongle support

• GPS: GPS/GLONASS

• Gyroscope: Yes

• Compass: Yes

• Speaker: Yes

• Brightness sensor: Yes

• Microphone: Yes

• Built-in battery: 980 mAh, 3.7 V

• External battery: 4920 mAh, 7.6 V (removable)

• Operating temperature: -20°C to 40°C

• 4K video decoding: H.264 4k 30fps / H.265 4k 60fps

Scope of delivery

• 1x CrystalSky monitor

• 1x battery

• 1x charging hub

Note: There is no charger for the charging hub included in the delivery included.

Compatible chargers for CrystalSky:

• Inspire 2 Charger (IN2C180)

• Inspire 2 Charger Part 7 (ADE018)

• Inspire 2 Car Charger Part 37 (C6S90-2)

• Inspire 1 Charger Part 3 (A14-100P1A)

• Inspire 1 Charger Part 13 (ADE018)

• Inspire 1 Car Charger Part 71 (C6S90)

• Phantom 4 Charger Part 9 (PH4C100)

• Phantom 4 Car Charger Part 42 (C6S90)

• Phantom 3 Professional Charger (ADE019)

• Phantom 3 Car Charger Part 109 (C4S90)
