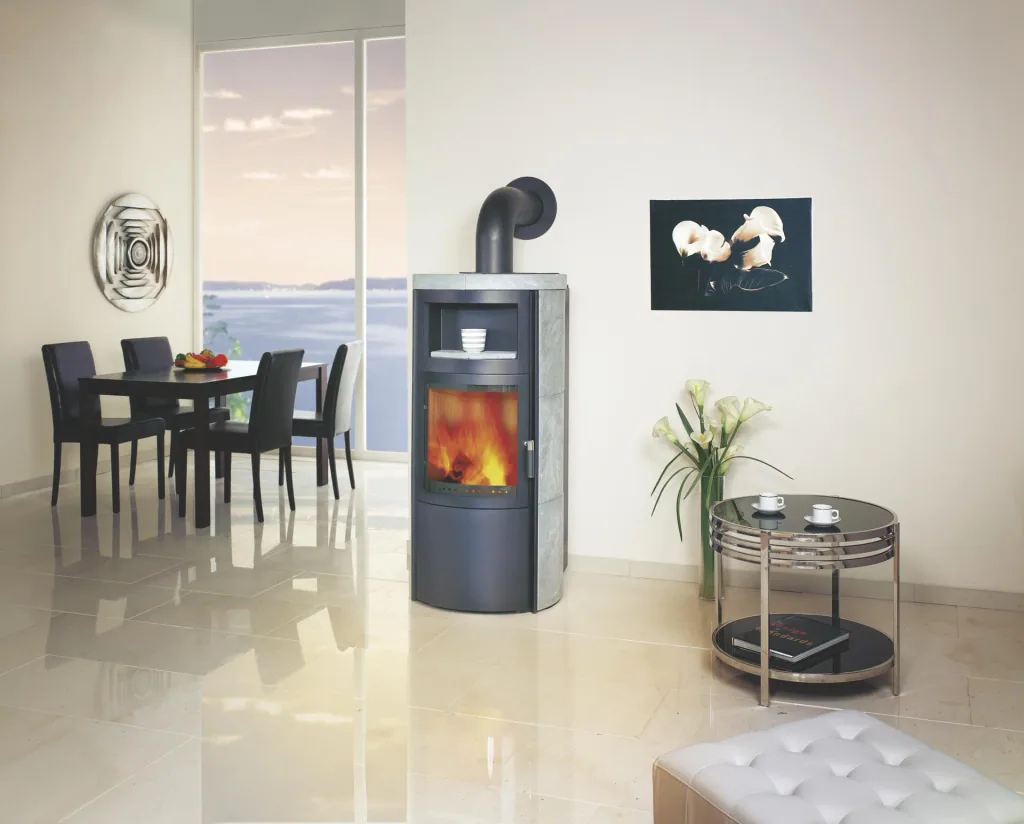

Vito WW ECOplus (8.4 kW) natural stone stove, fine dust filter, continuous burning, automatic, external air supply, hot water

Fire and water in harmony. The water-bearing stove combines the advantages of both elements and, thanks to its integrated hot water tank, optimally complements your home heating system. This is achieved technically by installing a so-called water tank around the combustion chamber, in which the circulating water is heated and then fed into a buffer tank for domestic and heating water. This not only prevents overheating of the rooms in which it is installed, but also utilizes a large portion of the heat generated by the stove throughout the entire house. While enjoying the cozy, warm atmosphere of the stove, you not only reduce your heating costs; the outside world also benefits from the efficient and gentle combustion technology.

Visually, the water-bearing stove is indistinguishable from conventional steel stoves. Thanks to modern ECOplus technology, including a fine dust filter, pollutants in the exhaust gas are reduced to a minimum. The continuously adjustable automatic system ensures convenient operation of the fireplace and optimal combustion. You'll enjoy a high level of comfort even when burning for hours:

Continuous burning

The fireplace is tested for continuous burning. Equipped with anthracite-nut 3 coal or anthracite briquettes, the fireplace can heat your living space for several hours without the need to add new fuel.

External combustion air supply

A room-air-dependent fireplace can draw the required combustion air directly from the outside. If there are negative pressure ventilation systems in the house, additional measures may be necessary; these must be coordinated with the chimney sweep or ventilation system installer.

Automatic operation

The combustion air supply is automatically regulated via a capillary sensor depending on the convection heat. The set heat output is automatically maintained during the combustion of a fuel load.

Water-conducting

With a built-in water heat exchanger, the stove is able to efficiently support the central heating system in the provision of domestic water and conventional heating.

Technical data

• Continuous burning/intermittent burning: Continuous burning

• Nominal heat output: 8 kW

• Total heat output: 8.4 kW

• Water heat output: 5.1 kW

• Air heat output: 3.3 kW

• Design: A1

• Room heating capacity with intermittent burning up to: 66 m³

• Efficiency: 84.6%

• Dust based on 13% O2: 15 mg/m³

• CO emission: 1,250 g/m³

• NOX content: 84 mg/Nm³

• Exhaust gas mass flow: 6.4 g/s

• Required. Delivery pressure: 0.12 mbar

• Flue gas temperature: 232 °C

• 2nd stage 1. BImSchV: yes

• Aachener, Düsseldorfer: yes

• Municher, Regensburger: yes

• § 15a B-VG (Austria) yes

• § 1 VKF (Switzerland): yes

• External air supply: yes

• Independent of room air: no

• Automatic: yes

• Flue pipe: 150 mm

• Flue pipe connection height: top 161 cm, rear -/

• External air supply: 125 mm, connections 26.8 cm

• Combustion chamber lining: special ceramic, fine dust filter

• Cast iron trough: yes

• Rigged grate/flat grate: Rigged grate

• Ash container: Drawer below the firebox

• Primary air: Yes

• Secondary air (rear ventilation of the glass): Yes

• Tertiary air: No

• Dimensions: Height 131.5 cm, Width 62 cm, Depth 63 cm

• Weight with ceramic: 285 kg

• Weight with natural stone: 347 kg

• Visible glass dimensions: W x H, 385 x 430 mm

• Clear firebox interior dimensions: W x D x H, 374 x 365 x 470 mm
