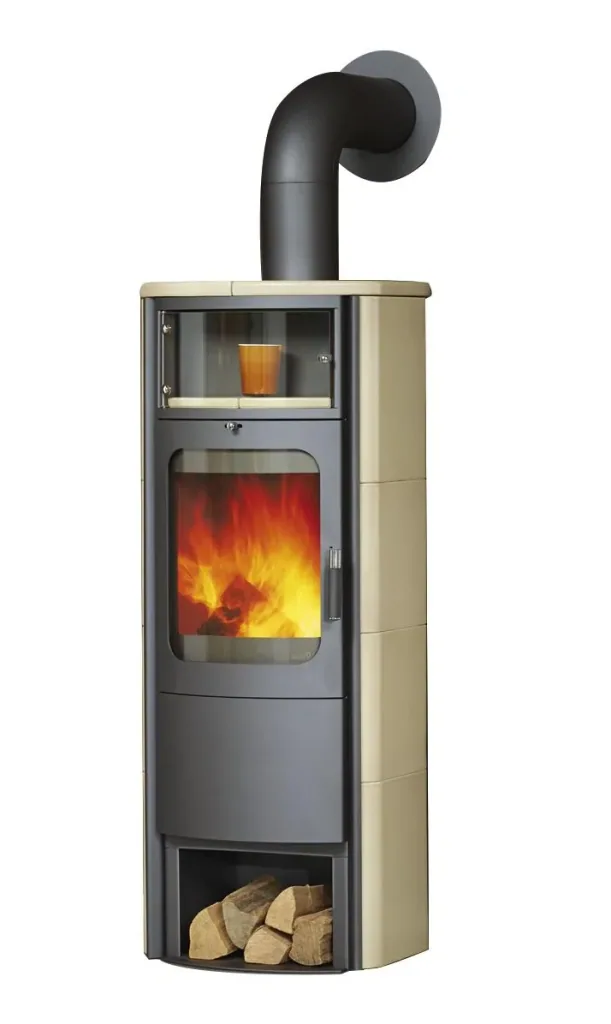

Fireplace Opera-B Grande (5 kW) cream, continuous burning, automatic

Bring warmth into your life and spend relaxing evenings by the fire. Whether with a book or a family evening, the Opera B Grande stove skillfully showcases your fire and creates a pleasant, comfortable atmosphere within your home. You can create a true eye-catcher with your choice of cladding. Naturally, in addition to sophisticated designs, you can also expect state-of-the-art technology. The modern technology inside the fireplace and its ease of use provide you with a completely worry-free fireplace experience. With an output of 5 kW, the stove is impressive and becomes a good and powerful heat source in the room where it is installed. The stove is equipped with a cast iron firebox with a riddling grate. The Opera B Grande (5 kW) is available in cream-white, meteor black, natural stone, and cream.

Continuous burning

The fireplace is tested for continuous burning. Equipped with Anthracite-Nut 3 coal or Anthracite briquettes, the fireplace can heat your living space for several hours—even at night—and remain in operation without the need to add new fuel.

Automatic

A capillary sensor automatically regulates the combustion air supply based on the convection heat. The set heat output is thus automatically maintained throughout the combustion of a fuel load.

3-in-1 control

Unique operating convenience thanks to the HARK "3-in-1 comfort control." Heating up, burning wood, burning coal—each of these combustion processes requires a separate air supply. The 3 in 1 comfort control automatically supplies the required amount of air depending on the selected setting and thus ensures optimal combustion.

Technical data

• Continuous burning/timed burning: Continuous burning

• Nominal heat output: 5 kW

• Type: A1

• Room heating capacity with timed burning up to: 99 m3

• Efficiency: 80.6%

• Dust related to 13% O2*: 29 mg/m3

• CO emissions*: 0.750 g/m3

• NOx content*: 101 mg/Nm3

• Flue gas mass flow*: 4.7 g/s

• Required Delivery pressure*: 0.12 mbar

• Flue gas temperature*: 348°C

• 2nd stage 1. BImSchV: yes

• Aachener, Düsseldorfer: yes

• Municher, Regensburger: yes

• §15a B-VG (Austria) yes1 VKF (Switzerland: yes

• External air supply: no

• Independent of room air: no

• Automatic: yes

• Ø flue pipe: 150 mm

• Connection height flue pipe: top 171 cm, rear -/

• Combustion chamber lining: Vermiculite

• Cast iron trough: yes

• Riddling grate/flat grate: Riddling grate

• Ash container: Drawer below the Combustion chamber

• Secondary air (rear ventilation of the glass): yes

• Primary air: yes

• Tertiary air: no

• Dimensions: Height 135 cm Width 53 cm Depth 47 cm

• Weight with ceramic: 182 kg

• Weight with natural stone: 244 kg

• Visible glass dimensions: W x H 333 x 420 mm

• Clear combustion chamber interior dimensions: W x D x H 340 x 360 x 430 mm
