Kapp-Zugsäge KS 60 E-Set-UG

• Compact, lightweight, with ergonomic carrying handles and cable storage
• LED spotlight for precise cutting line display (included in the set and available as an accessory)
• Angle bevel for measuring inside and outside angles

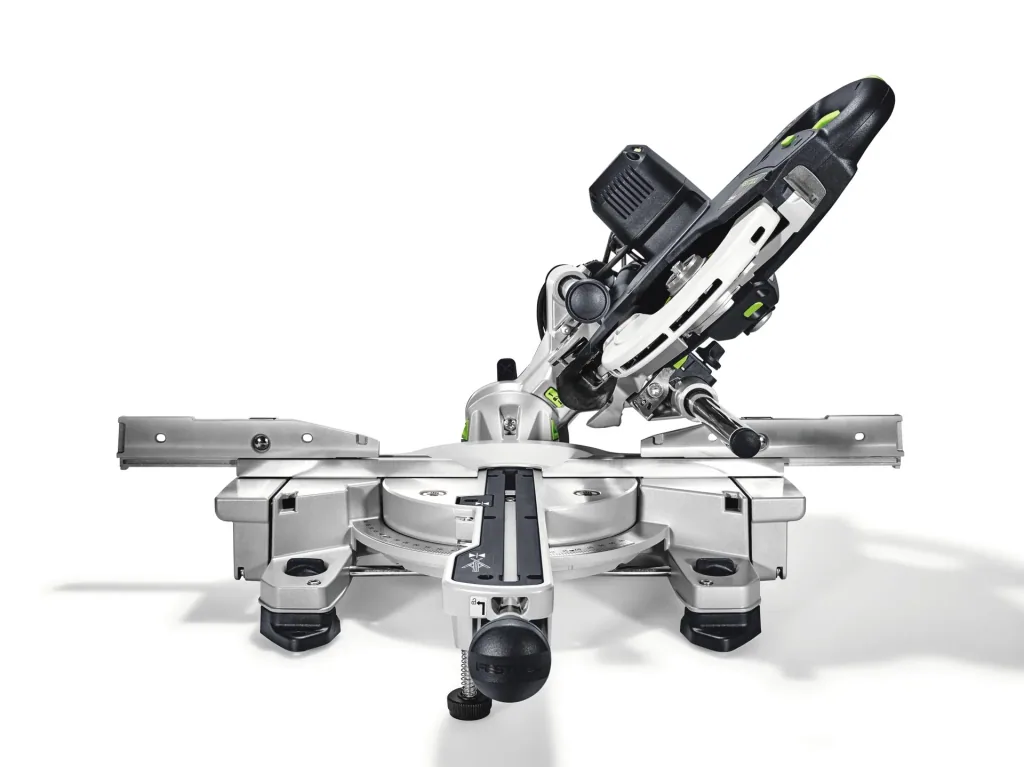

• Tilt angles on both sides of up to 47°/46° and miter angles on both sides of up to 60°

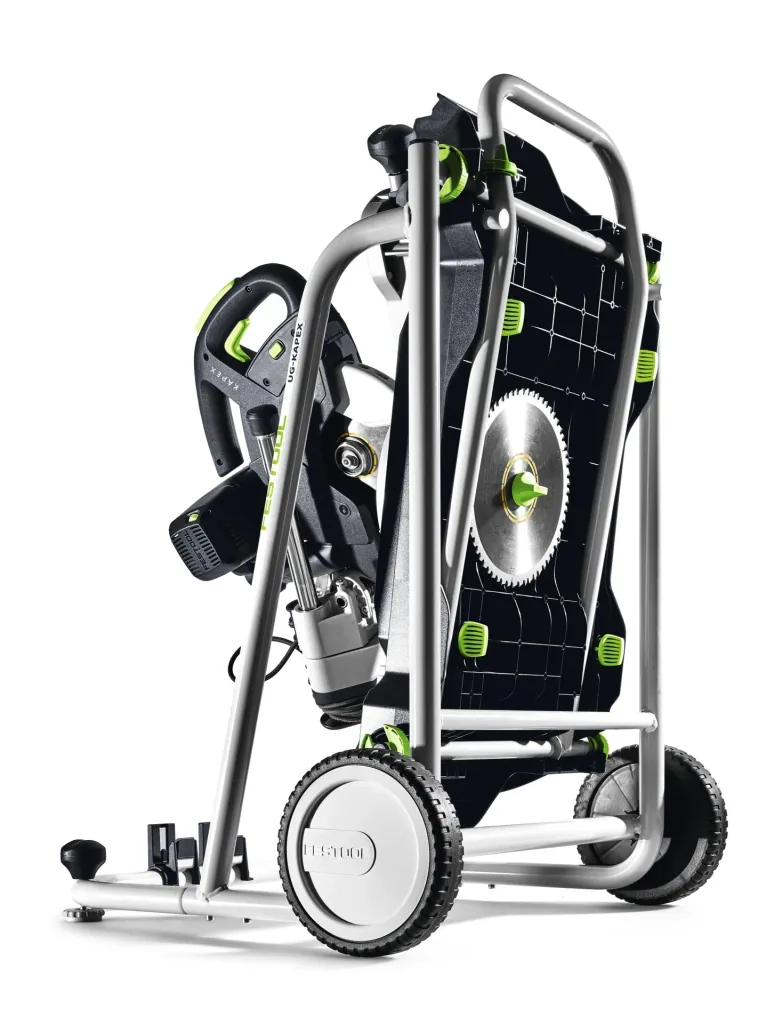

• Even more mobile with the base frame: The UG-KAPEX base frame is a stand and transport frame in one
• Cutting depth limiter for quickly creating grooves
• For clean air and a healthy working environment: In combination with a Festool mobile dust extractor, the dust extraction system extracts dust where it is created
• Always work according to the material: The Festool saw blades are ideally matched to the KAPEX KS 60 and the materials

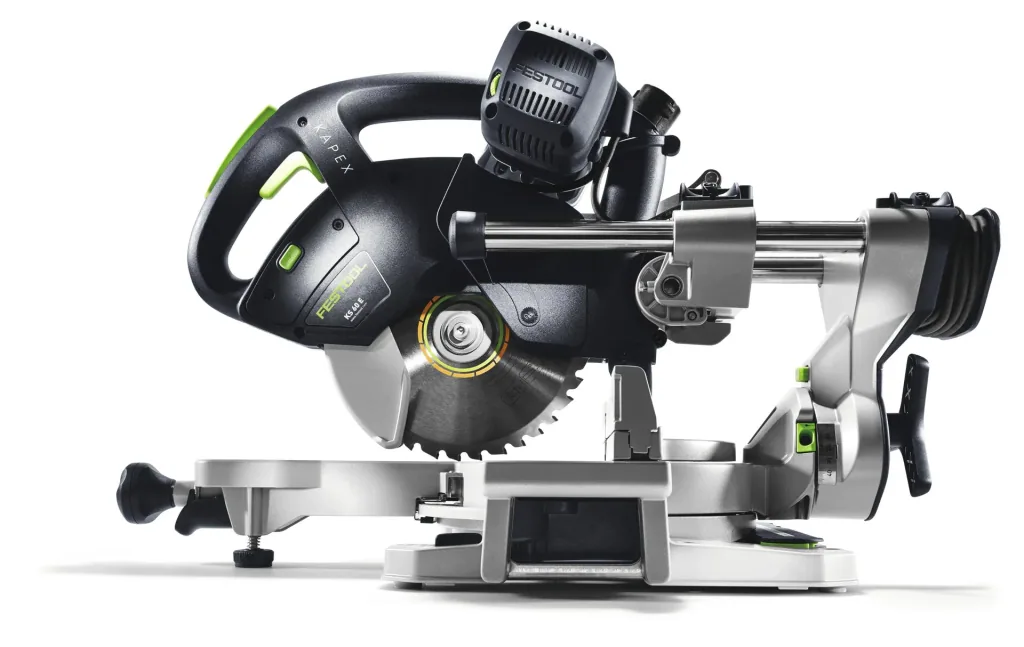

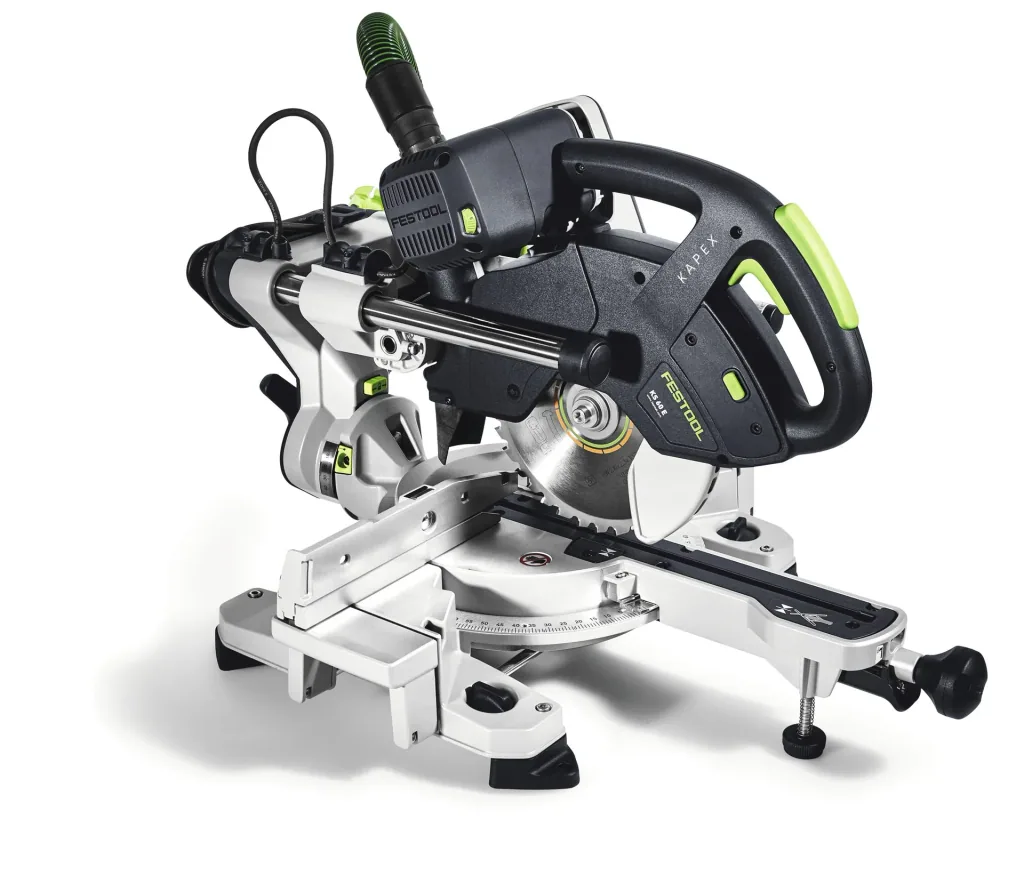

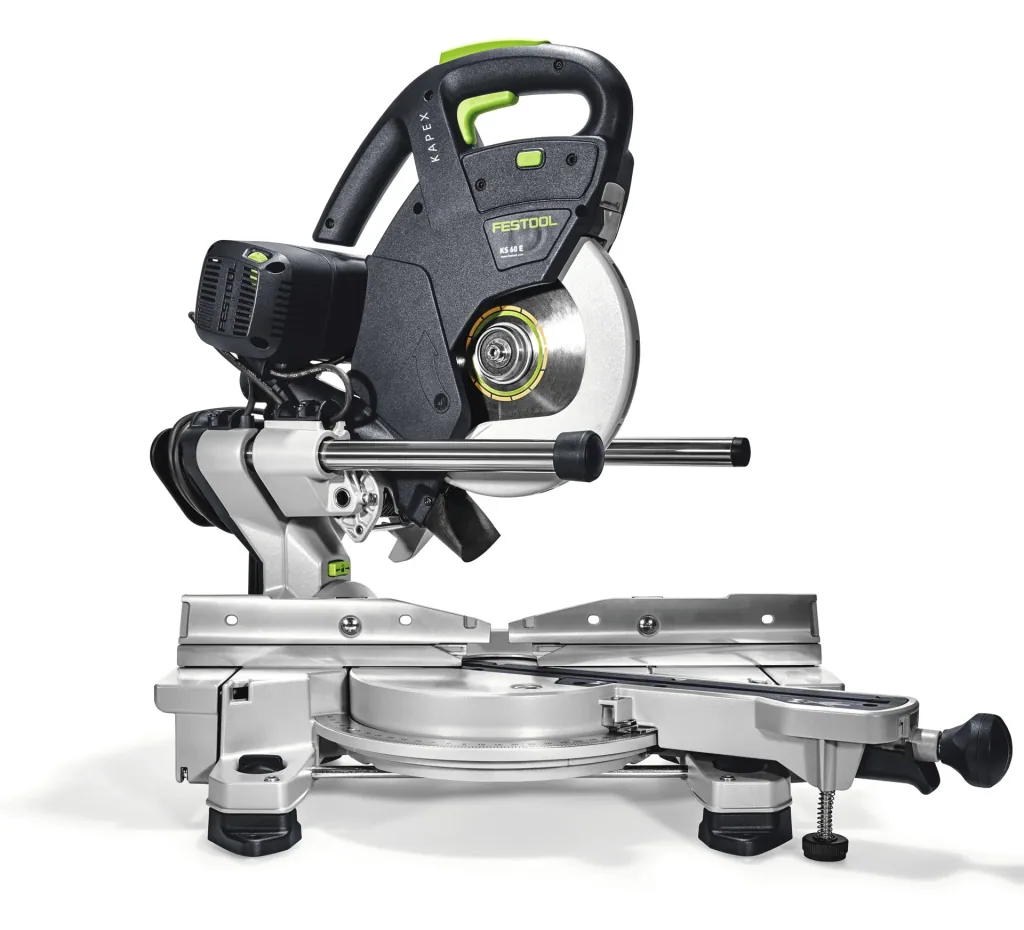

The new KAPEX KS 60. Eliminates everything that is superfluous during assembly. For example, every gram of weight. It impresses with ergonomically positioned carrying handles, cable storage, and transport lock. And an extremely compact design thanks to flush-fitting guide rods. And it makes no compromises when it comes to precision and application versatility: with a miter angle of up to 60 degrees on both sides and a tilt angle of up to 46 or 47 degrees on both sides. The Festool double-column guide with its dual bearings guarantees safe and smooth guidance of the saw blade. And many other clever details such as the LED spotlight, the extendable table extension, the additional grooving function, and the angle bevel complement the KAPEX KS 60, creating the perfect combination of mobility, application versatility, and the best results.

Product highlights

Achieve the best results faster:

• Minimizes waste – minimizes material costs. Through flawless transfer of the angles with the protractor and LED spotlight (included in the set and available as an accessory) for an optimal view of the marking

Comfortable and safe

• Ideal for use on the move - whether on the ground floor or on the third floor. Thanks to the compact design, low weight, ergonomically arranged recessed grips, integrated cable winding and transport lock

Innovative down to the last detail

• No need to convert the saw and no material acrobatics. Especially for long workpieces thanks to the swiveling on both sides to 60°, tilting on both sides to 47°/46°, including integrated table extension

Performance Features

CLEANTEC

• Integrated bayonet lock as a connecting element between the extractor and the tool

MMC Electronic Digital

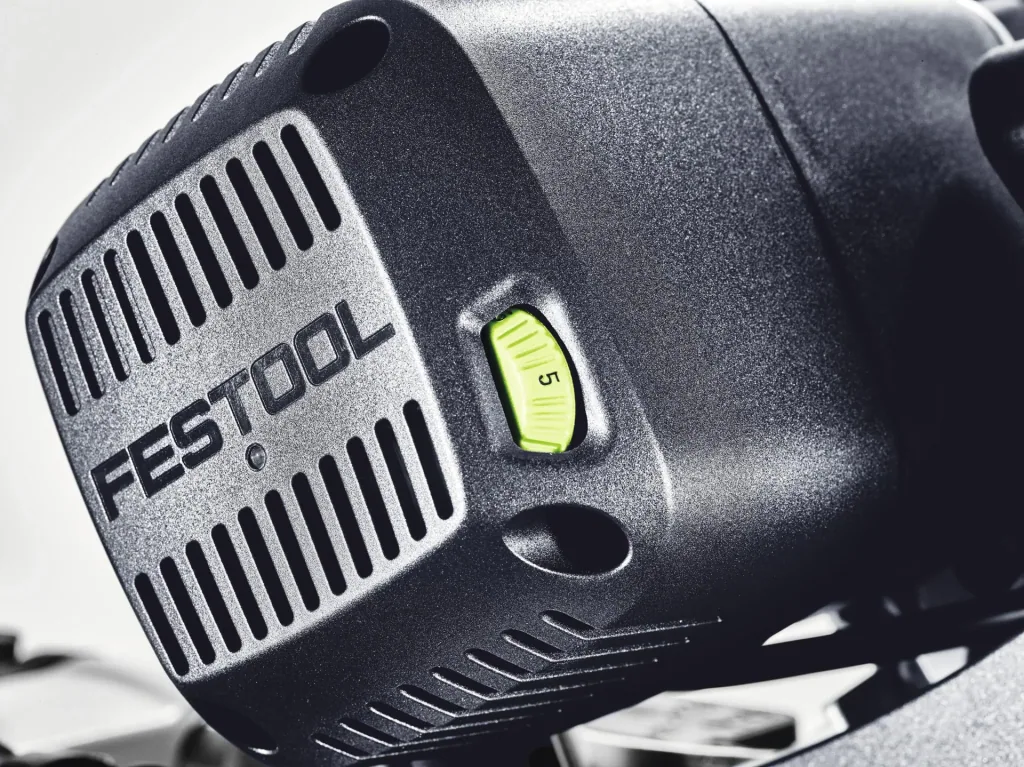

• Processor-controlled power electronics "Multi Material Control" with adjustable and constant speed and temperature monitoring for material-appropriate work

Antistatic function

• Mobile extractors and machines with antistatic function to prevent static charging while working

Spotlight

• LED light for simple and precise positioning on the scribe mark

Technical Data

• Cutting depth 60°/90°: 150 x 60 mm
• Idle speed: 1300 - 3500 min
• Power consumption: 1200 W
• Weight: 17.80 kg
• Saw blade diameter: 216.00 mm
• Cutting depth 45°/90°: 215 x 60 mm
• Cutting depth 90°/90°: 305 x 60 mm
• Cutting depth 45°/45° (right): 215 x 20 mm
• Inclination angle: 47/46 °
• Dimensions (W x D x H): 661 x 475 x 430 mm
• Cutting depth 45°/45° (left): 215 x 40 mm
• Mitre angle: 60/60 °
• Dust extraction connection Ø: 27/36 mm

Noise and vibration values ​​

• Sawing: Uncertainty (vibration) K: 1.50 m/s²
• Sawing: A-weighted sound pressure level Lp: 91.00 dB(A)
• Sawing: A-weighted sound power level Lw: 100.00 dB(A)
• Sawing: Total mean vibration value ah: 2.50 m/s²
• Sawing: Standard series EN 60745: EN 62841
• Sawing: Uncertainty (noise) K: 3.00 dB

Main areas of application

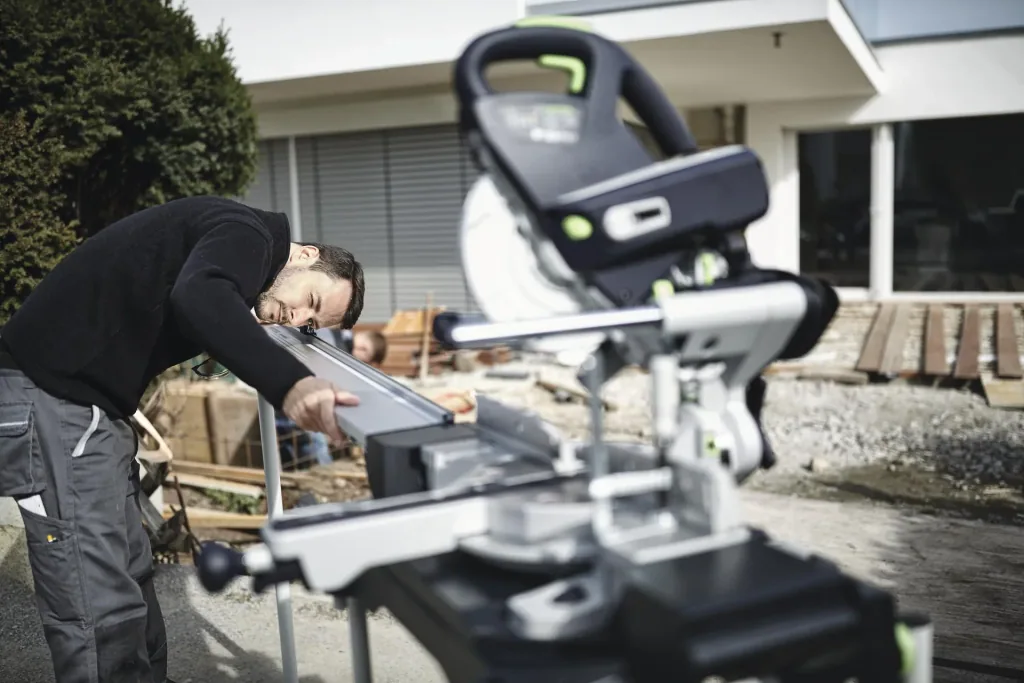

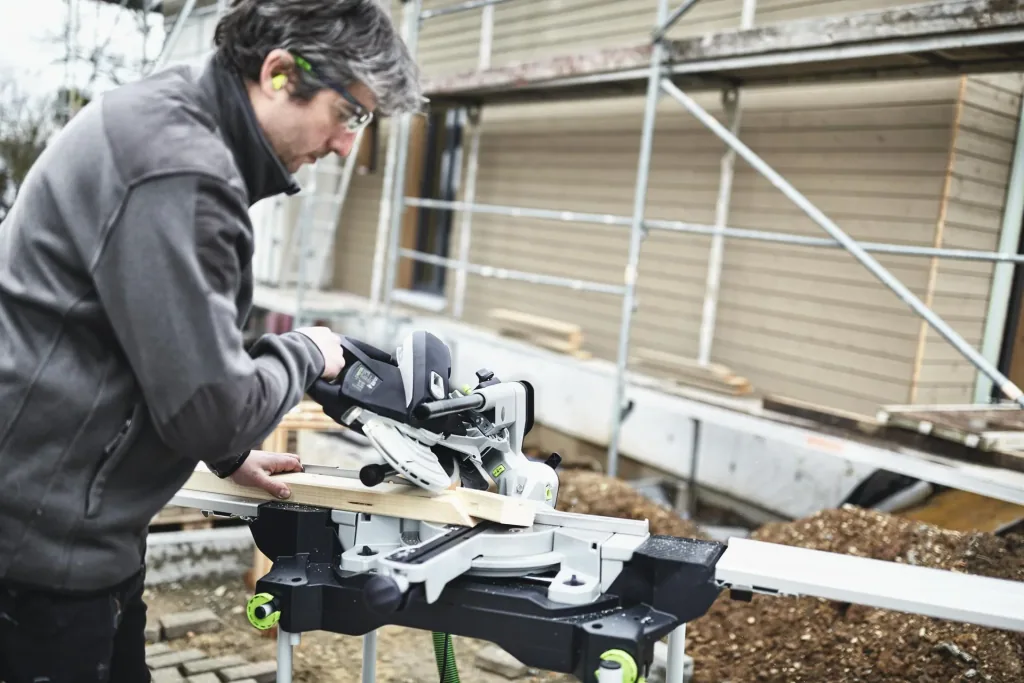

• Ideal for mobile use during assembly
• Cutting to length Boards and panels up to 305 x 60 mm
• Cutting strips, profiles and squared timber up to 60 mm thick
• Precise angle fitting of skirting boards and cover strips without any calculations - in combination with the angle bevel
• Base frame facilitates and supports the applications of the KAPEX

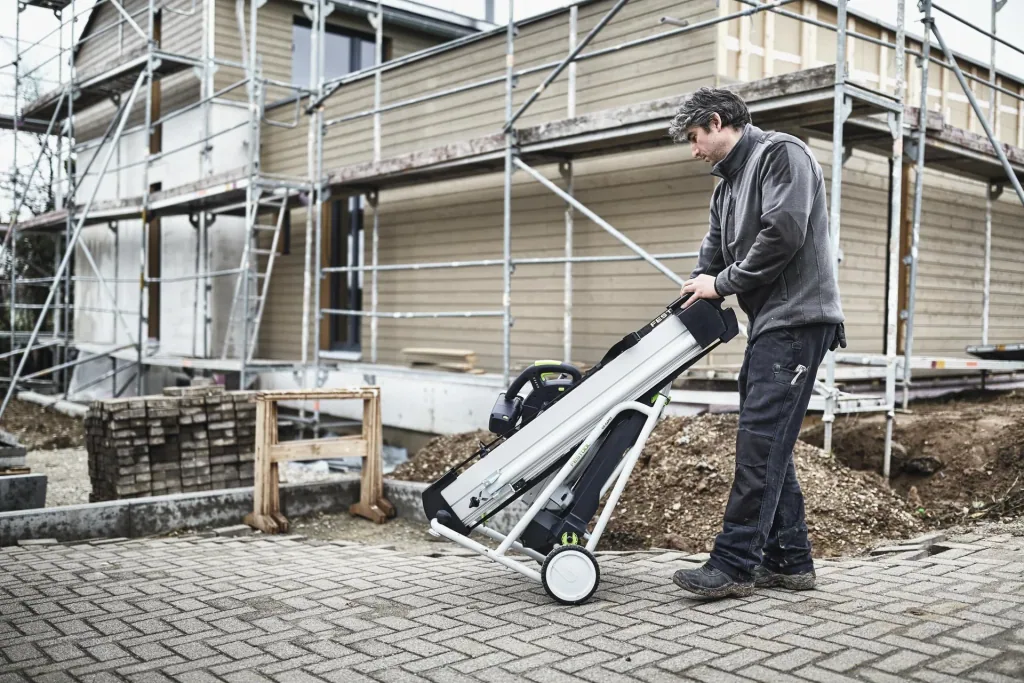

• Convenient transport to the construction site and during assembly thanks to the KAPEX base frame

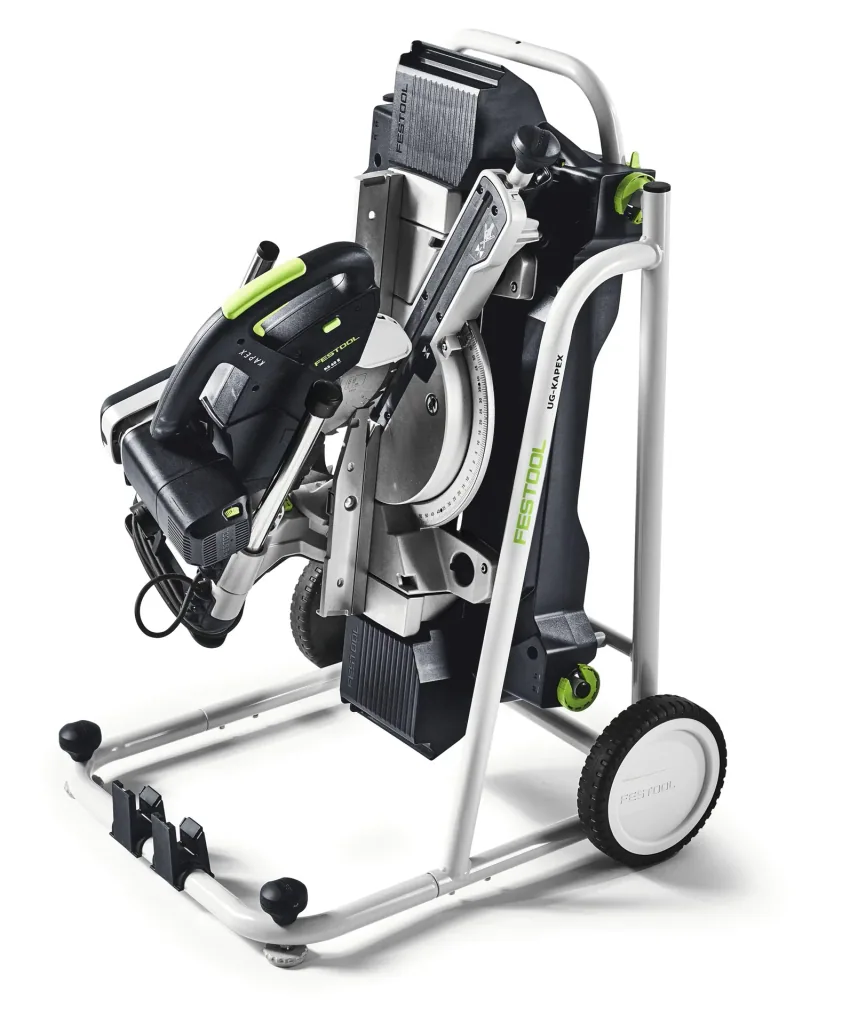

• KAPEX base frame enables easy folding for transport

Festool SERVICE all-inclusive

Four services so that you can concentrate fully on your work.

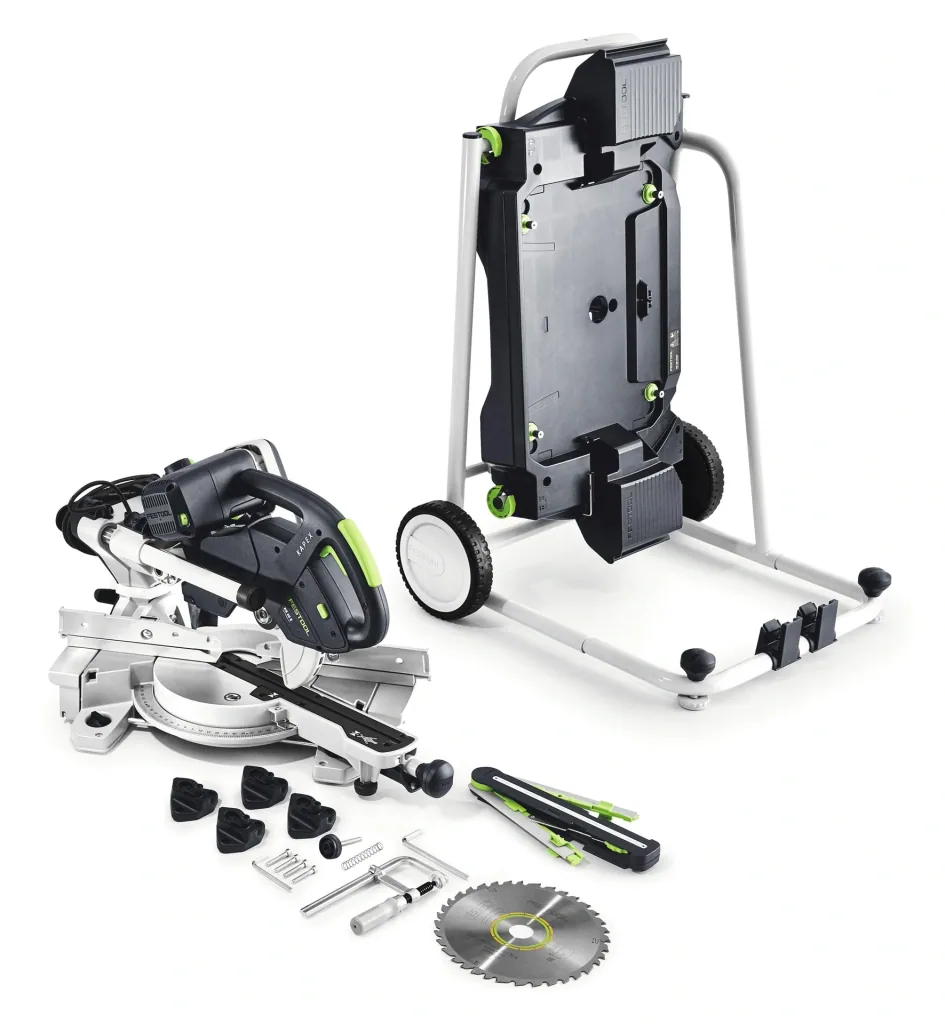

Scope of delivery

• HW universal saw blade W36
• Screw clamp FSZ 120
• LED spotlight
• Angle bevel
• Raiser
• Base frame
• Operating tools
• In the box
