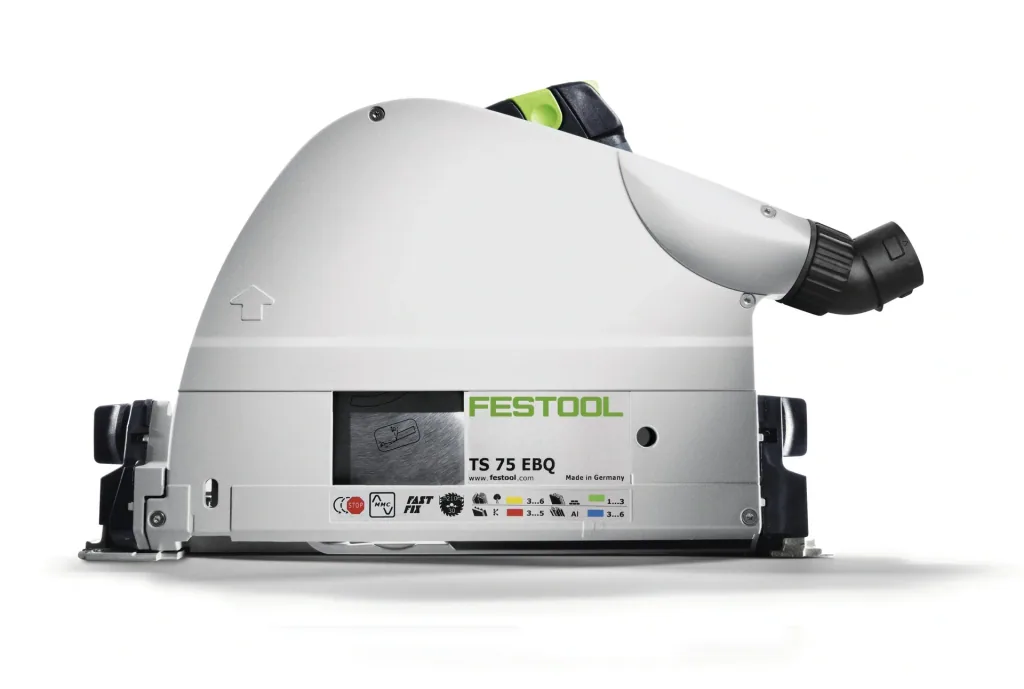

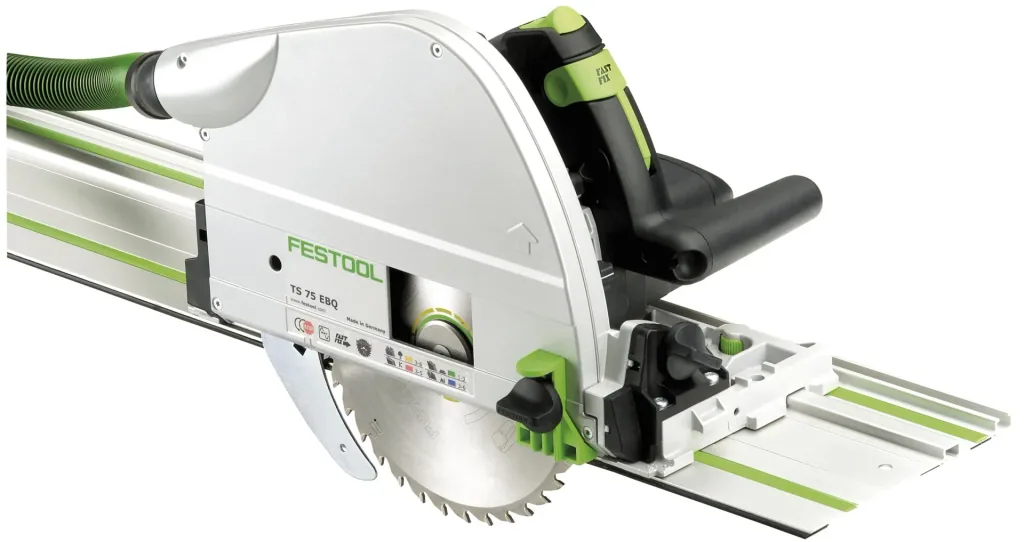

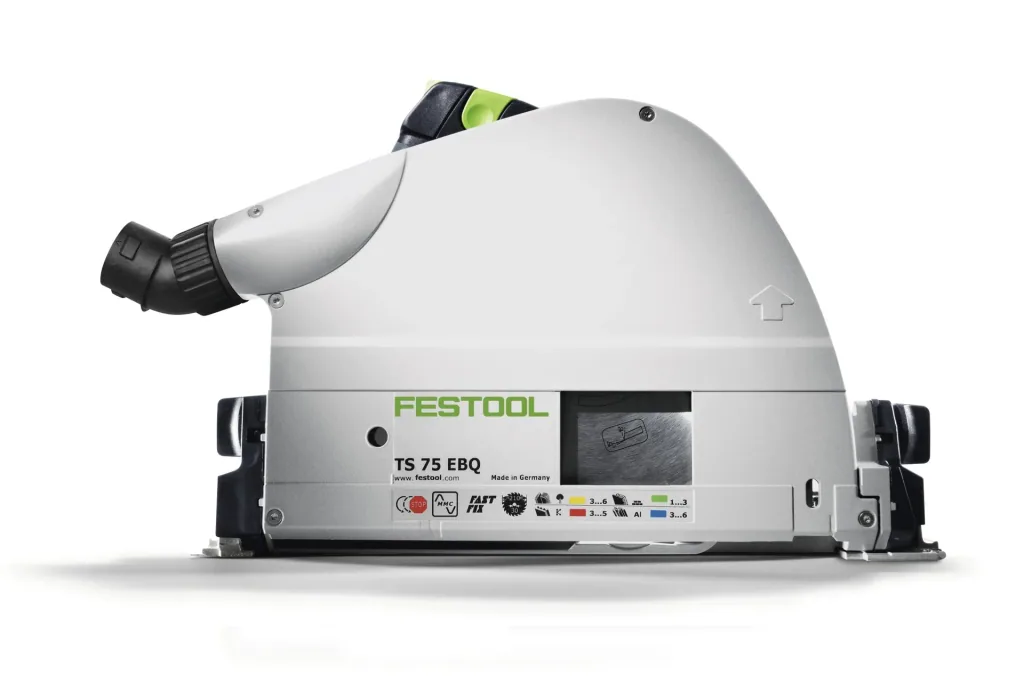

Plunge saw TS 75 EBQ-PLUS-FS 230V

• Spring-loaded riving knife for unhindered plunge cuts
• Tool-free play adjustment on the guide rail
• Quick-action brake for safe and comfortable working
• FastFix for quick and easy sawblade changes and material-specific working
• Attachable splinter guard for high-quality work results

For greater cutting depths of up to 75 mm. Staying true to one line. Accurate to the millimeter and splinter-free. With the necessary strength for every material, yet lightweight and easy to handle. And with a triple-bearing motor including MMC electronics for an outstanding service life. The TS 75 combines a lot of power and easy handling in a compact tool. Together with the guide rail, the TS 75 enables flexible, fast and precise working.

Product highlights

Best results faster

• With a cutting depth of 75 mm and 1,600 watts, even thick workpieces can be sawn in one cut

Comfortable and safe

• Spring-loaded guide wedge prevents kickback and thus minimizes the risk of injury

Better in the system

• Optimizes workflows and saves time. With guide rails, individual saw blades and mobile dust extractor for dust-free results

Features

plug it

• Removable, replaceable power cable with safety lock for quick conversion

CLEANTEC

• Integrated bayonet lock as a connecting element between the vacuum cleaner and the tool

MMC Electronic Multi-Material-Control

• Material-appropriate work: "Multi Material Control" power electronics with adjustable, constant speed and temperature monitoring

Antistatic function

• Mobile extractors and machines with antistatic function to prevent static charging during work

Quick brake

• For safe work when planing, sawing and milling

FastFix

• Facilitates the changing of insert tools when milling, sawing, planing, sanding, drilling and screwing

Guide system

• Patented guide system for safe guidance of sawing and milling tools

Splinter guard

• The patented splinter guard for tear-free cuts on both sides when sawing

Technical data

• Cutting depth 45°: 55 mm
• Idle speed: 1350 - 3550 min
• Power consumption: 1600 W
• Weight: 6.20 kg
• Saw blade Ø: 210.00 mm
• Angle range: 0 - 47 °
• Cutting depth: 0 - 75 mm
• Dust extraction connection Ø: 27/36 mm

Noise and vibration values ​​

• Sawing metal: Total mean vibration value ah: 2.50 m/s²
• Sawing metal: Standard series EN 60745: 60745-2-5
• Sawing metal: Uncertainty (noise) K: 3.00 dB
• Sawing metal: Uncertainty (vibration) K: 1.50 m/s²
• Sawing metal: A-weighted sound pressure level Lp: 95.00 dB(A)
• Sawing metal: A-weighted sound power level Lw: 106.00 dB(A)

Main areas of application

• Precise plunge cuts up to 75 mm material thickness
• Perfect cutting of front doors - guide rail with plunge saw
• Cutting and machining conservatory profiles
• Cutting cable ducts cleanly and easily
• Safely sawing office raised floors
• Machining sandwich panels in hall construction

Festool SERVICE all-inclusive

Four services so you can concentrate fully on your work.

Scope of delivery

• HW universal saw blade W36
• Kickback stop FS-RSP
• Guide rail FS 1400/2
• Splinter protection
• Operating tool
• SYSTAINER SYS 5 T-LOC
