Domestic waterworks HWW 1000/25 Plus F with pre-filter
| Artikelnummer | WF-912189 |
| Merk | T.I.P. |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0

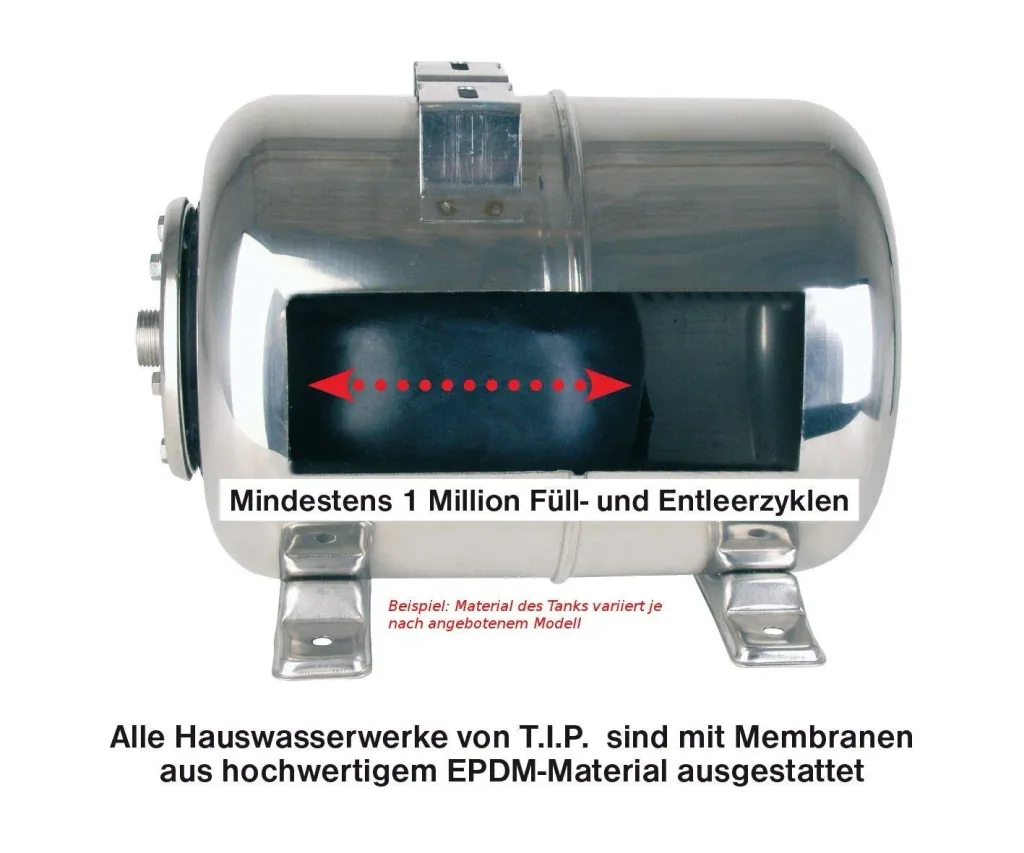

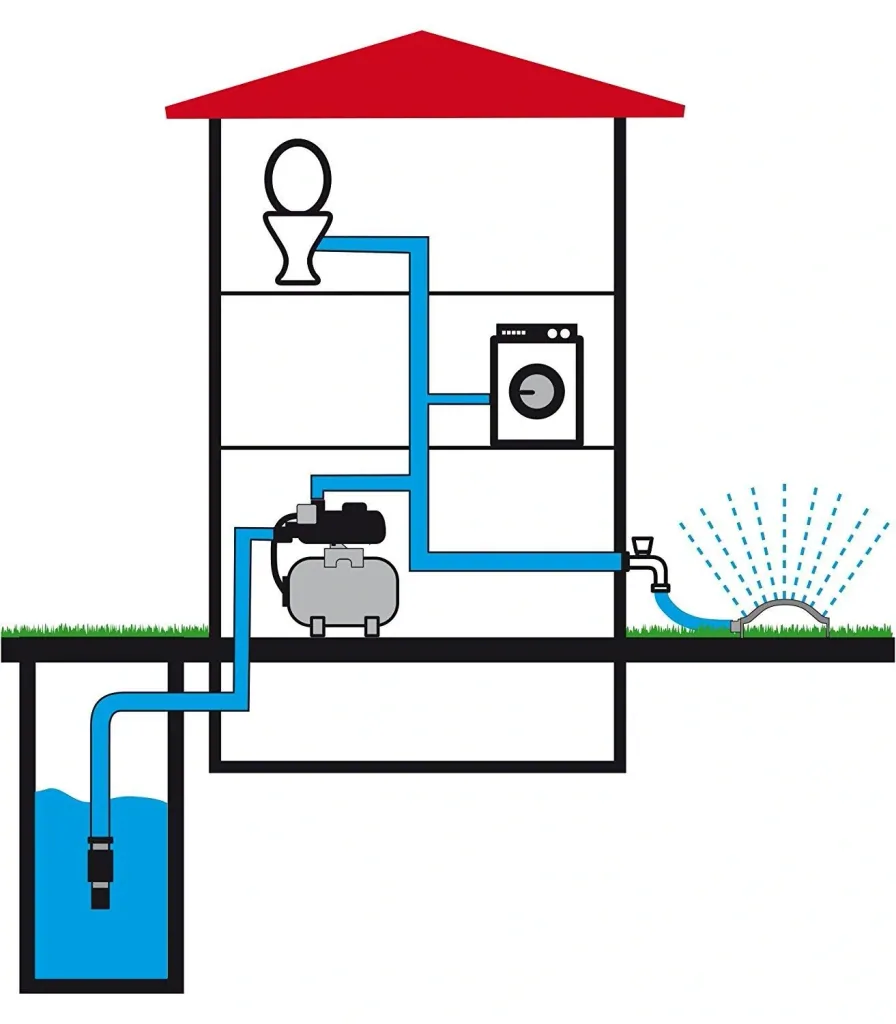

This powerful domestic waterworks features a self-priming, powerful jet pump with a high-quality stainless steel pump housing and a 22 l steel pressure vessel. The hydraulic unit is made of Noryl, and the maintenance-free capacitor motor is equipped with thermal overload protection. The pressure circuit is preset to 2 bar cut-in pressure and 3 bar cut-out pressure, ready for installation, and can be adjusted to suit local conditions. The domestic waterworks is equipped with a high-quality EPDM membrane. Areas of application include: automatic domestic water supply from wells and cisterns, garden irrigation, and automatic sprinkler systems. The device is also equipped with a washable G5 pre-filter.
Technical Specifications
Dimensions
Weight: 12.8 kg
| Output power | |
|---|---|
| Output power | 800 W |
| Material | |
| Material | V2A stainless steel |
| Suction head | |
| Suction head | 9 m |
| Tank capacity | |
| Tank capacity | 22 l |
| Flow rate | |
| Flow rate | 3,300 l/h |
| Voltage | |
| Voltage | 230 V |
| Cable length | |
| Cable length | 1.5 m |
| Weight | |
| Weight | 12.8 kg |
| Cable | |
| Cable | H07RN-F |
| Drive | |
| Drive | 230 V motor |
| Maximum water temperature | |
| Maximum water temperature | 35 °C |
| Technical features | |
| Technical features | Thermal protection switch |
| External dimensions | |
| External dimensions | 51 x 29 x 58 cm x cm x cm |
| Delivery head | |
| Delivery head | 46 m |
| Connection size | |
| Connection size | 1 |
