Domestic waterworks HWW 3600 I
Gegarandeerd Veilig afrekenen
| Artikelnummer | WF-912186 |
| Merk | T.I.P. |
Recensies
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te maken
Vragen
Er zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
0 reviews

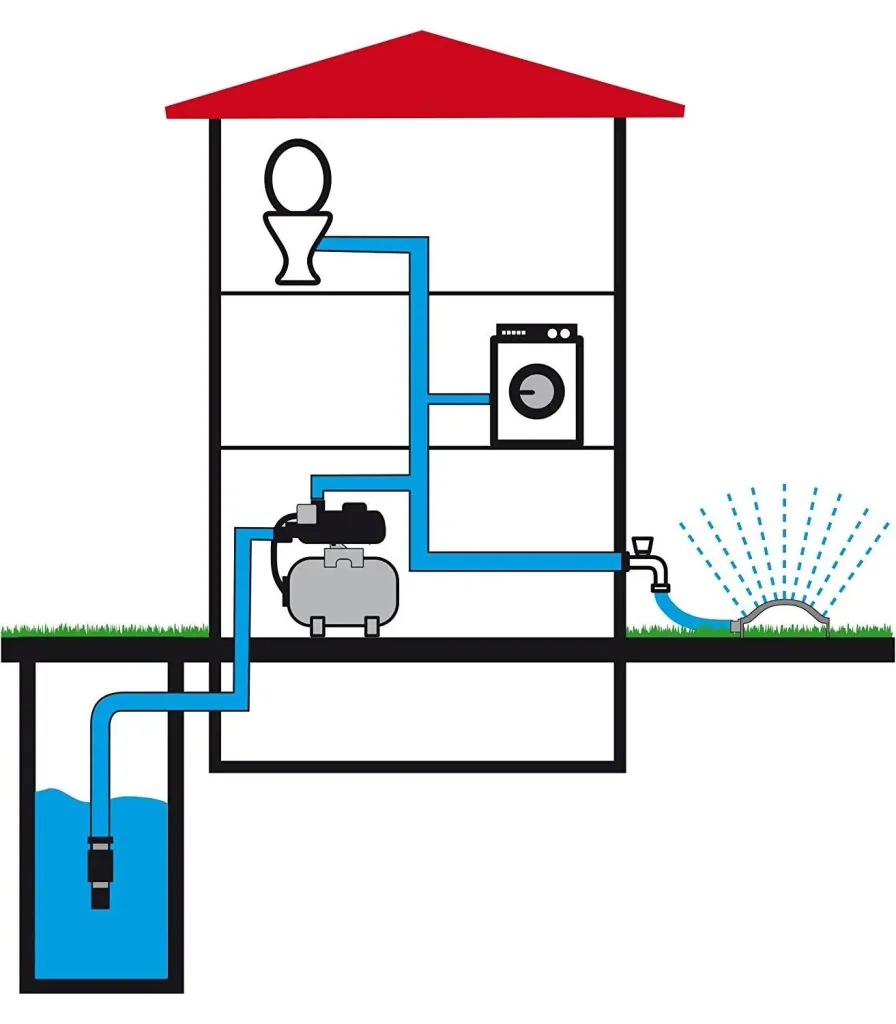

- High-performance basic model with stainless steel pump housing, ideal for automatic domestic water supply with domestic water from wells and cisterns; for garden watering, automatic sprinkling and rainwater harvesting
- 18 l steel pressure vessel in a compact design

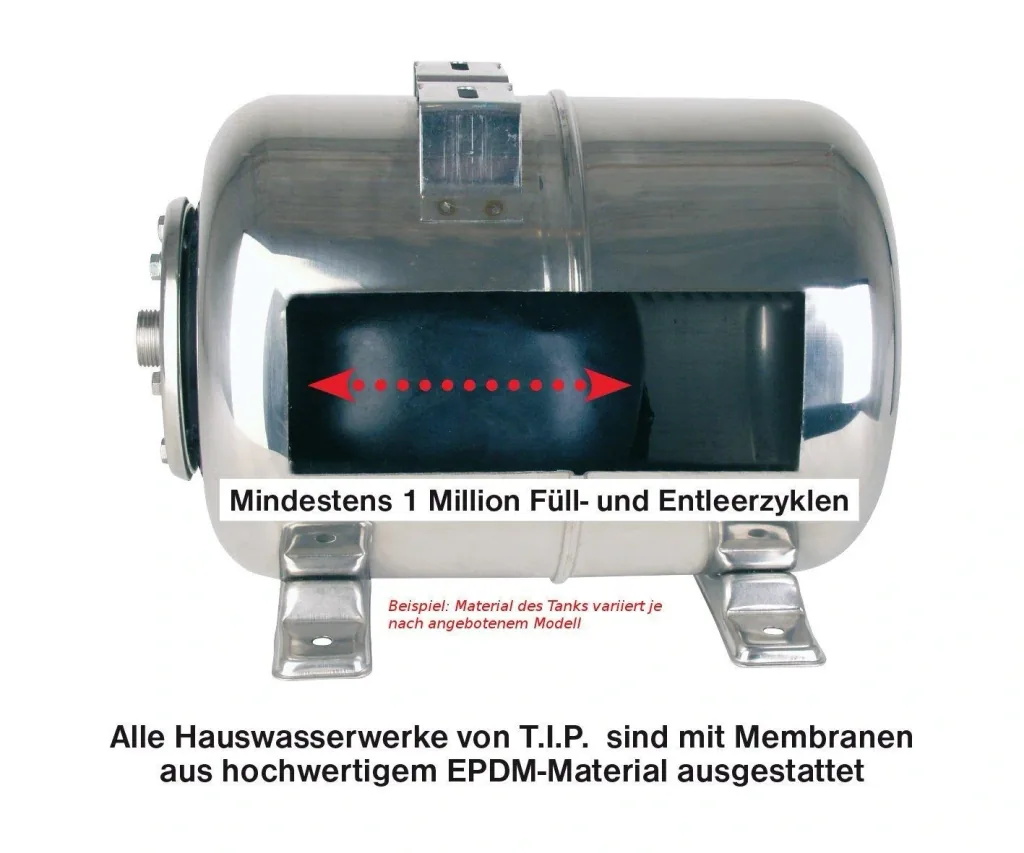

- Pressure vessel with high-quality EDPM diaphragm and maintenance-free capacitor motor with thermal overload protection
The HWW 3600 I is a powerful, compact all-round model that is suitable for a wide range of applications: Ideal for automatic domestic water supply with domestic water from wells and cisterns, for garden watering, automatic sprinkling and rainwater harvesting. Equipped with a stainless steel pump housing and an 18 l pressure vessel with a high-quality EPDM membrane.
Technical Specifications
- Rated power: 650 watts
- Maximum flow rate: 3,600 l/h
- Maximum discharge head/pressure: 40 m/4.0 bar
- Maximum suction head: 9 m
- Pump housing: stainless steel
- Pressure vessel/volume: steel/18 l
- Discharge connection: 30.93 mm (1" IG)
- Suction connection: 30.93 mm (1" IG)
- Maximum temperature: 35 °C
- Connection cable: 1.5 m / H07RN-F
Dimensions
- Width: 48.5 cm
- Depth: 29.0 cm
- Height: 50.0 cm
Weight: 11.8 kg
| Suction height | |
|---|---|
| Suction height | 9 m |
| Tank capacity | |
| Tank capacity | 18 l |
| Flow rate | |
| Flow rate | 3,600 l/h |
| Voltage | |
| Voltage | 230 V |
| Cable length | |
| Cable length | 1.5 m |
| External dimensions | |
| External dimensions | 48.5 x 29 x |
| Delivery head | |
| Delivery head | 40 m |
| Connection size | |
| Connection size | 1 |
| Cable | |
| Cable | H07RN-F |
| Output power | |
| Output power | 650 W |
| Material | |
| Material | V2A stainless steel |
| Drive | |
| Drive | 230 V motor |
| Maximum water temperature | |
| Maximum water temperature | 35 °C |
| Technical features | |
| Technical features | Thermal protection switch |
| Weight | |
| Weight | 11.8 kg |
