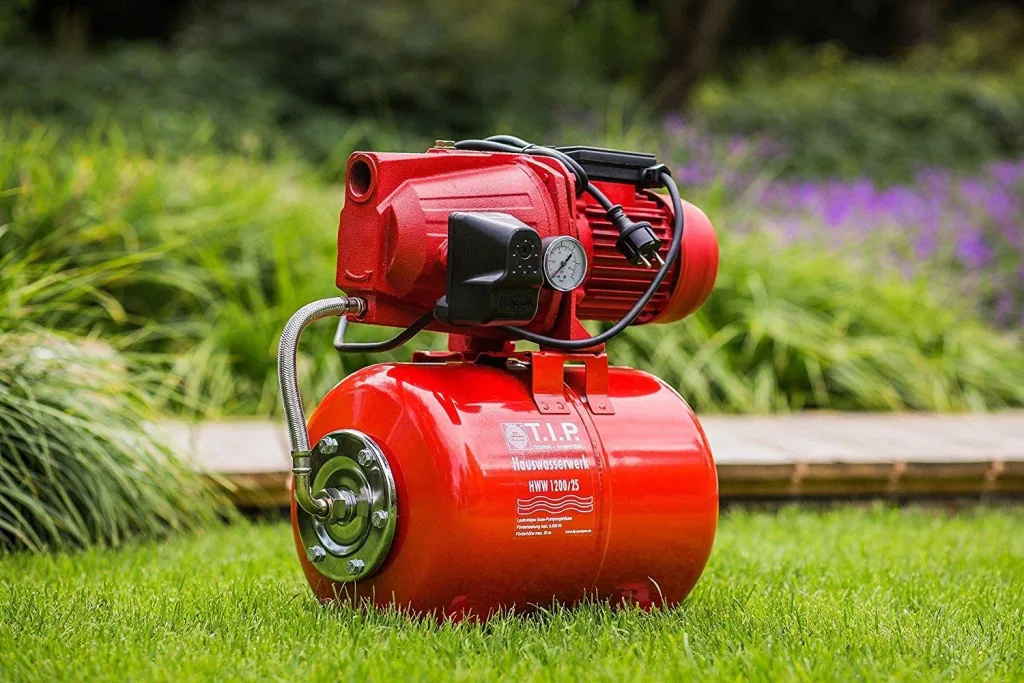

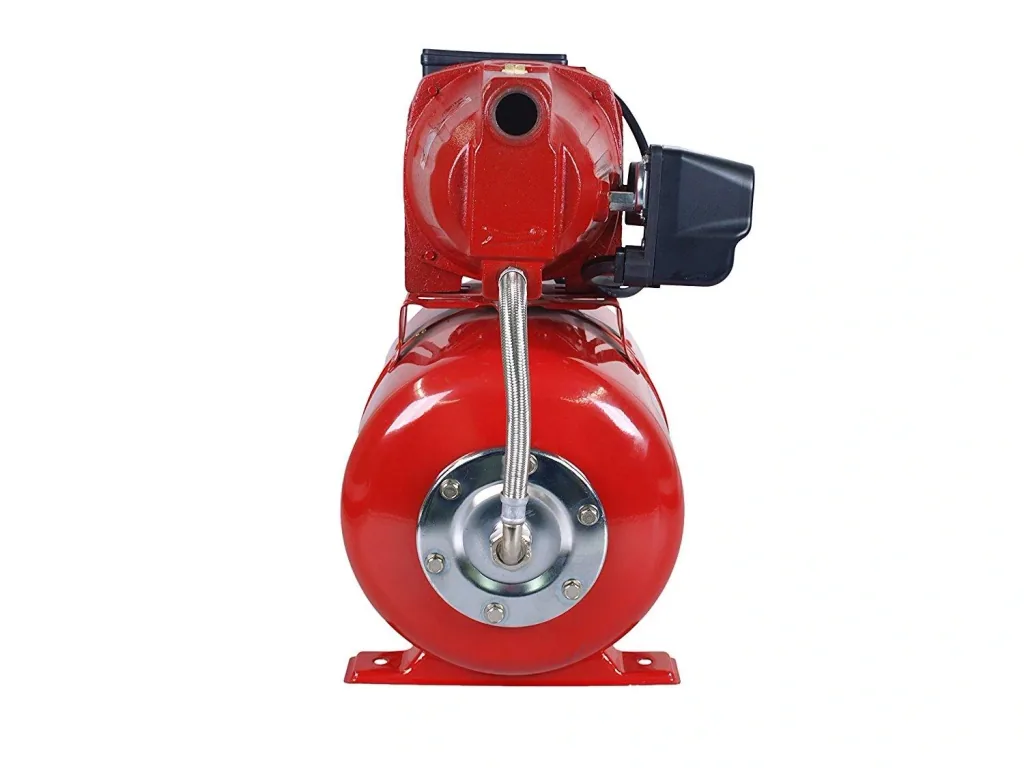

Hauswasserwerk HWW 1200/25
Gegarandeerd Veilig afrekenen
| Artikelnummer | WF-912185 |
| Merk | T.I.P. |
Recensies
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te maken
Vragen
Er zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
0 reviews
- Robust, self-priming jet pump with a large cast iron pump housing. Particularly high delivery head. Very smooth and quiet operation thanks to the heavy cast iron pump housing.

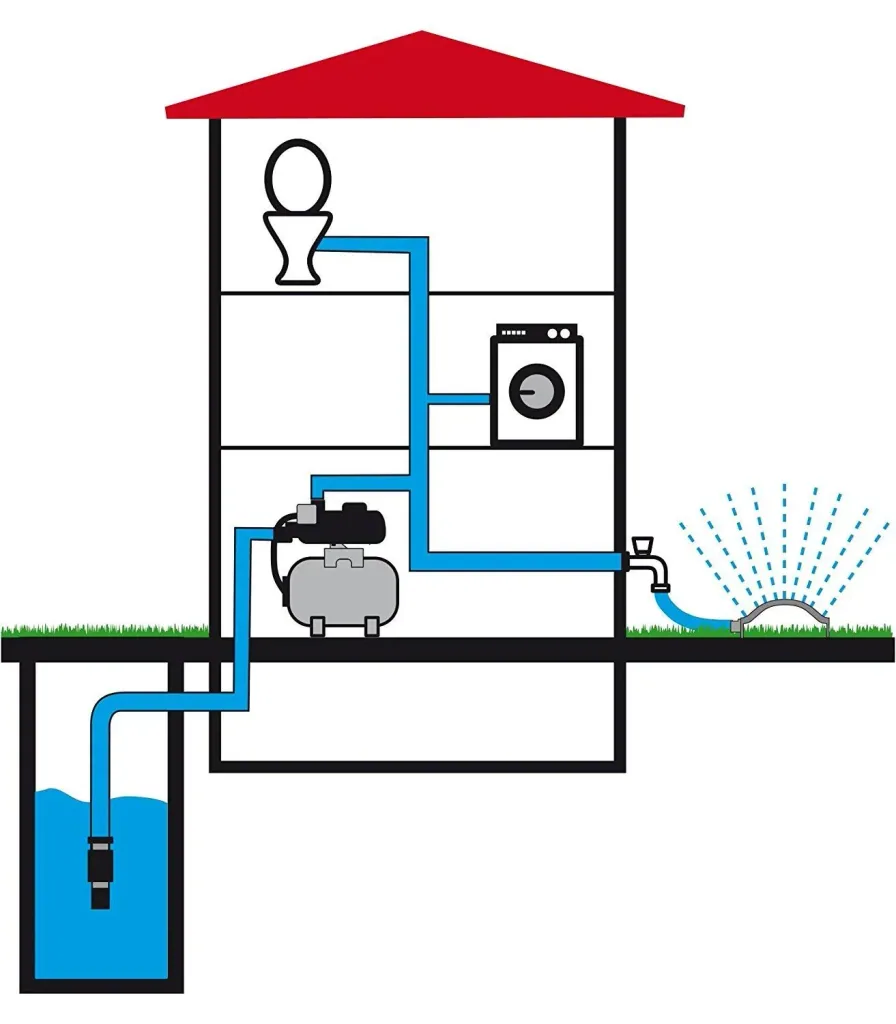

- For automatic domestic water supply with domestic water from wells and cisterns, for garden watering and automatic irrigation - ideal as a pressure boosting system.
- Ideal for increasing pressure by installing it in the existing water network.
Robust, self-priming jet pump with a large cast iron pump housing. Particularly high delivery head. Very smooth and quiet operation thanks to the heavy cast iron pump housing. For automatic domestic water supply with domestic water from wells and cisterns, for garden watering and automatic irrigation. Ideally suited as a pressure booster system.
Technical Data
- Rated power: 1200 watts
- Maximum flow rate: 83 l/min / 5,000 l/h
- Maximum discharge head / pressure: 50 m / 5.0 bar
- Maximum suction head: 9 m
- Pump housing: Cast iron
- Pressure vessel / volume: Steel / 22 l
- Discharge connection: 30.93 mm (1" IG)
- Suction connection: 30.93 mm (1" IG)
- Maximum temperature: 35 °C
- Connection cable: 1.5 m / H07RN-F
Dimensions
- Width: 58.8 cm
- Depth: 31.2 m
- Height: 56.5 cm
Weight: 23.4 kg
| Cable | |
|---|---|
| Cable | H07RN-F |
| Output power | |
| Output power | 1,200 W |
| Material | |
| Material | Cast iron |
| Delivery head | |
| Delivery head | 50 m |
| Connection size | |
| Connection size | 1 |
| External dimensions | |
| External dimensions | 58.8 x 31.2 x 56.5 cm x cm x cm |
| Weight | |
| Weight | 23.4 kg |
| Drive | |
| Drive | 230 V motor |
| Maximum water temperature | |
| Maximum water temperature | 35 °C |
| Delivery rate | |
| Delivery rate | 5,000 l/h |
| Voltage | |
| Voltage | 230 V |
| Cable length | |
| Cable length | 1.5 m |
| Suction head | |
| Suction head | 9 m |
| Tank capacity | |
| Tank capacity | 22 l |
