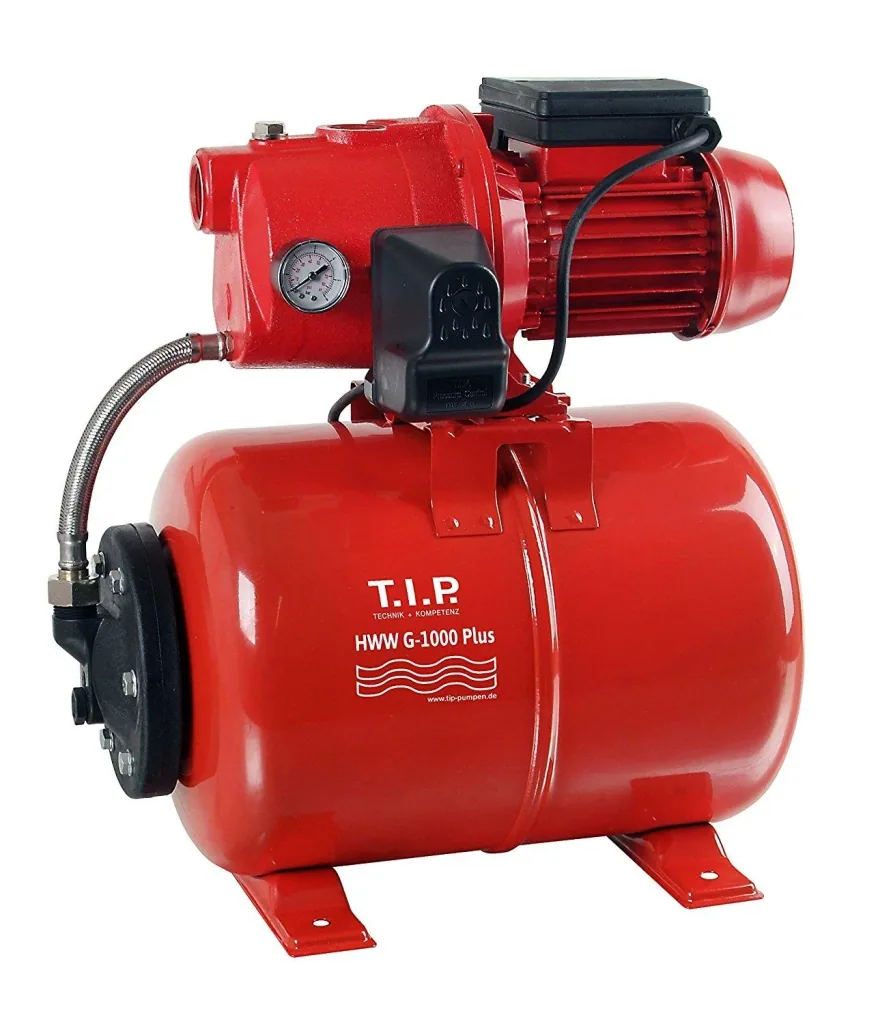

Domestic waterworks HWW G-1000 Plus
Gegarandeerd Veilig afrekenen
| Artikelnummer | WF-912184 |
| Merk | T.I.P. |
Recensies
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te maken
Vragen
Er zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
0 reviews
- Domestic waterworks 22 liter steel pressure vessel with self-priming, powerful jet pump and high-quality cast iron pump housing
- Maintenance-free capacitor motor with thermal overload protection
- For automatic domestic water supply from wells and cisterns, garden irrigation, and automatic sprinkling
- This powerful domestic waterworks features a self-priming, powerful jet pump with high-quality cast iron pump housing and a 22 liter steel pressure vessel
The hydraulic unit is made of Noryl, and the maintenance-free capacitor motor is equipped with thermal overload protection.
The pressure circuit is preset to 1.6 bar cut-in and 3 bar cut-out pressure ready for installation and can be adjusted to local conditions.
The domestic waterworks is equipped with a high-quality EPDM diaphragm.
Areas of application include: automatic domestic water supply from wells and Cisterns, garden irrigation, and automatic irrigation.
Technical Specifications
- Rated power: 800 watts
- Maximum flow rate: 3,500 l/h
- Maximum discharge head / pressure: 46 m / 4.6 bar
- Maximum suction head: 9 m
- Pump housing: cast iron
- Pressure vessel / volume: steel / 22 l
- Discharge connection: 30.93 mm (1" IG)
- Suction connection: 30.93 mm (1" IG)
- Maximum temperature: 35 °C
- Connection cable: 1.5 m / H07RN-F
Dimensions
- Width: 49.0 cm
- Depth: 31.0 m
- Height: 51.0 cm
Weight: 16.7 kg
| Connection size | |
|---|---|
| Connection size | 1 |
| Switch-on pressure | |
| Switch-on pressure | 1.6 bar |
| External dimensions | |
| External dimensions | 49 x 31 x 51 cm x cm x cm |
| Delivery head | |
| Delivery head | 46 m |
| Weight | |
| Weight | 16.7 kg |
| Output power | |
| Output power | 800 W |
| Suction head | |
| Suction head | 9 m |
| Tank capacity | |
| Tank capacity | 22 l |
| Delivery rate | |
| Delivery rate | 3,500 l/h |
| Voltage | |
| Voltage | 230 V |
| Cable length | |
| Cable length | 1.5 m |
| Maximum water temperature | |
| Maximum water temperature | 35 °C |
| Switch-off pressure | |
| Switch-off pressure | 3 |
| Cable | |
| Cable | H07RN-F |
