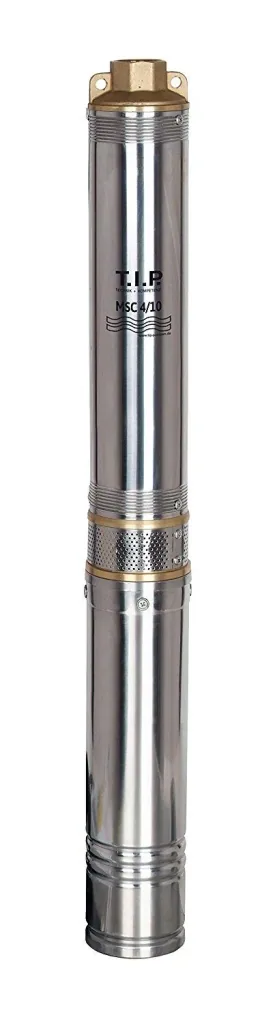

Deep well pump MSC 4/10, stainless steel, 4 inches, up to 5,500 l/h flow rate, up to 72 m delivery head

Prijs:

291,76 €
🇩🇪  Duitse kwaliteit sinds 1923
 Gratis verzending bij bestellingen boven 99 €*
 Beveiligde betaling op factuur
  2. Winkel
  3. Garden
  4. Pump
  5. Deep Well Pumps

Deep well pump MSC 4/10, stainless steel, 4 inches, up to 5,500 l/h flow rate, up to 72 m delivery head

https://www.westfalia-shop.nl/web/image/product.template/103260/image_1920?unique=914a915
0 beoordeling

291,76 € 291.76 EUR 291,76 € Betaal nu 97,25 € met Klarna

347,20 € 583,30 €

(0,00 € / Stuks)
* incl. btw,  incl. Verzendkosten

4 mensen bekijken dit op dit moment
14,59 € Cashback met deze aankoop · 5 %
You might also like
Uitverkocht
Ongeldige e-mail
We sturen u een melding zodra het product weer op voorraad is.
Veilig afrekenen
Gegarandeerd Veilig afrekenen
Ons contacteren
Artikelnummer WF-912161
Merk T.I.P.
  • Robust and highly efficient submersible pressure pump
  • For pumping water from great depths and for conveying water at high pressure
  • Due to its design, it is also perfectly suited for narrow boreholes with a minimum diameter of 4"
  • Stainless steel pump housing, brass inlet and outlet, and a 10-stage pump impeller
The MSC 4/10 is a very robust and highly efficient submersible pressure pump and is ideally suited for pumping water from great depths and for conveying water at high pressure. Thanks to its clever design, the deep well pump can also be used in very narrow boreholes with a minimum diameter of 4" and shafts. The standard equipment, namely a long connection cable and a special lowering rope, makes it perfectly suited for this purpose. The MSC 4/10 has a stainless steel pump housing with a brass inlet and outlet. It is also equipped with a 10-stage pump impeller. Thanks to the extremely powerful 1,300 watt motor and the 10-stage pump drive, it achieves an enormous delivery head of 72 meters.

Technical data
  • Rated power: 1,300 watts
  • Max. delivery rate 5,500 l/h
  • Delivery head / pressure max: 72 m / 7.2 bar
  • Max. Immersion depth: 20 m
  • Max. temperature of medium: 35 °C
  • Pump housing: stainless steel/brass
  • Connection cable: 23 m / H07RN-F
  • Pressure connection: 1 1/4 " female thread
  • Control box: Yes

Dimensions
  • Width: 129.0 cm
  • Depth: 20.0 cm
  • Height: 15.0 cm
  • Weight: 18.0 kg

Scope of delivery

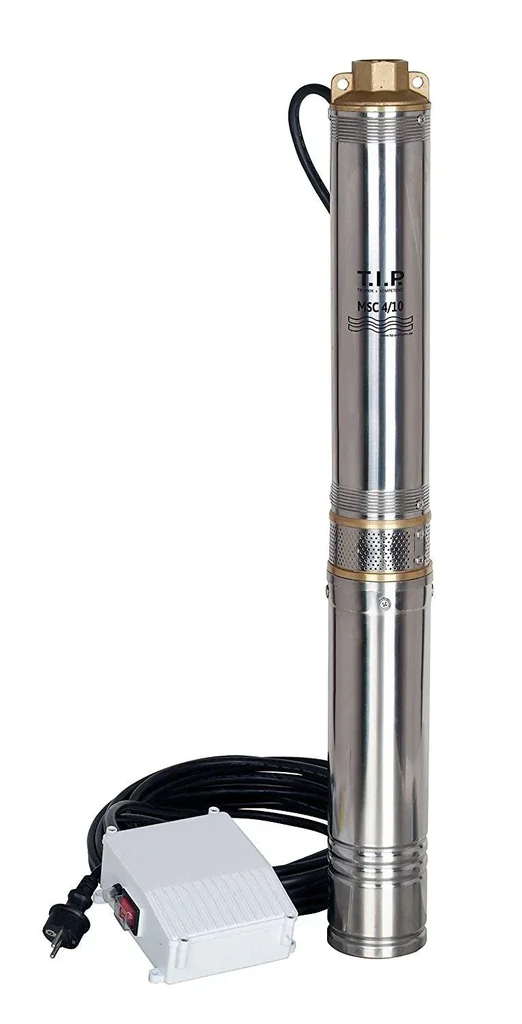

21 m lowering rope, 23 m cable, control box with overload protection.
Output power
Output power 1,300 W
Flow rate
Flow rate 5,500 l/h
Voltage
Voltage 230 V
Cable length
Cable length 23 m
Weight
Weight 18 kg
Maximum immersion depth
Maximum immersion depth 20 m
Switching speeds
Switching speeds 10
Connection size
Connection size 1 1/4
External dimensions
External dimensions 129 x 20 x 15 cm x cm x cm
Delivery head
Delivery head 72 m
Naam EU-verantwoordelijke: T.I.P. Technische Industrie Produkte GmbH
EU-verantwoordelijke straat: Siemensstraße
EU-verantwoordelijke Huisnummer: 17
Postcode EU-verantwoordelijke: 74915
EU-verantwoordelijke gemeente: Waibstadt
EU-verantwoordelijk land: Germany
EU-verantwoordelijke e-mail: [email protected]
EU-verantwoordelijk telefoonnummer: +4907263912562

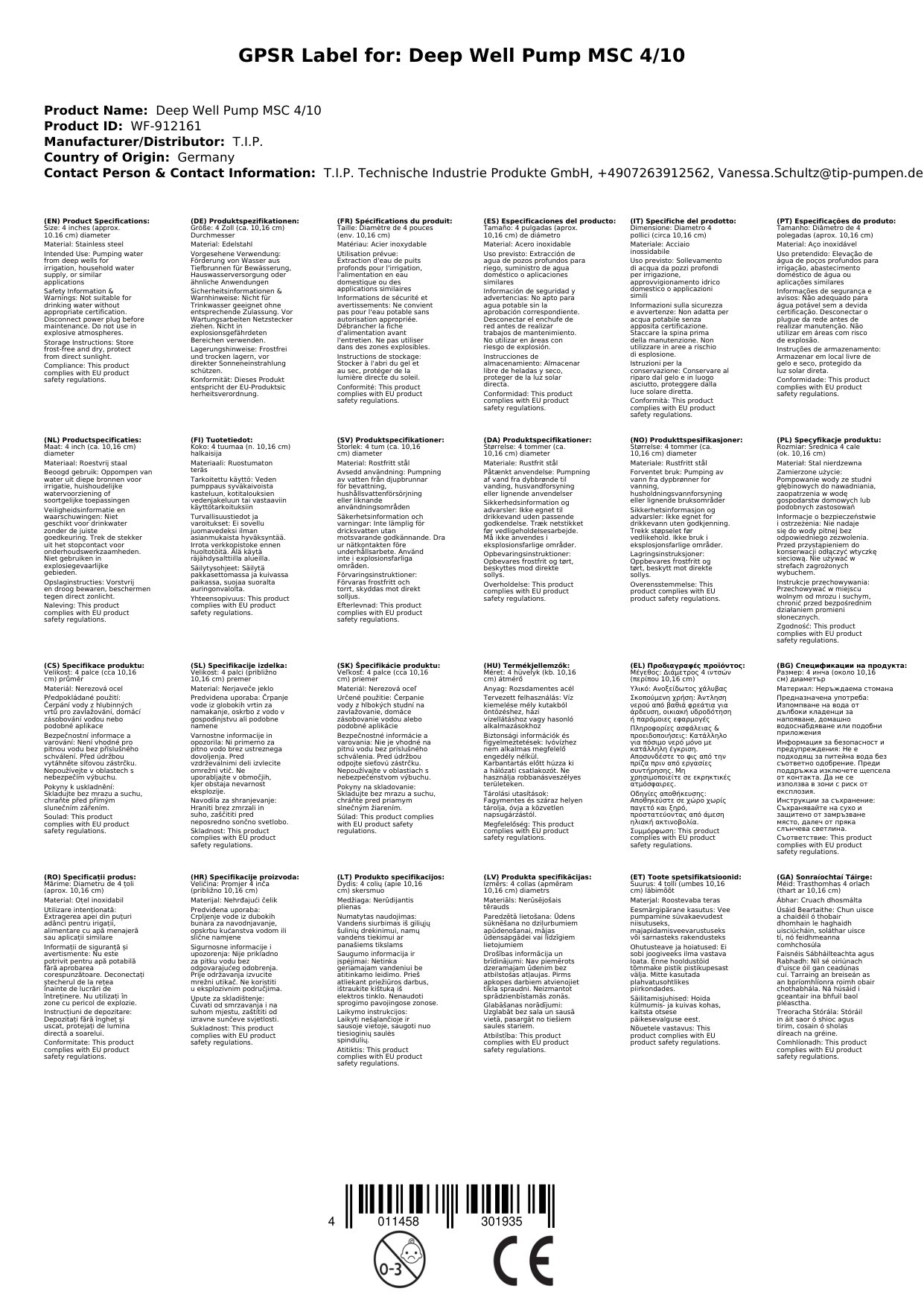

GPSR bijlage:
