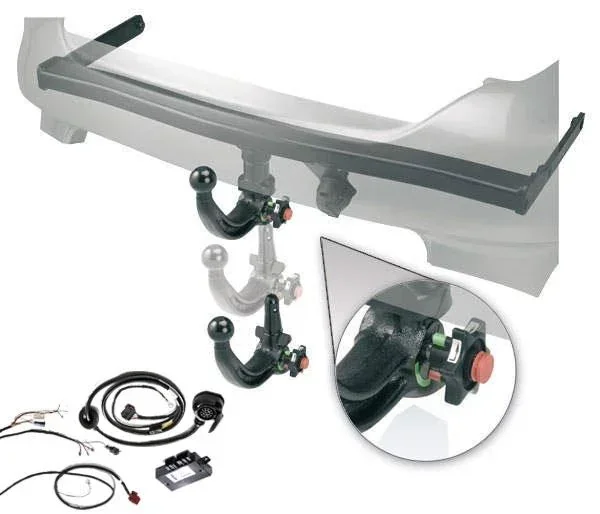

Trailer coupling kit HYUNDAI i30 Coupe from build 11/15
| Artikelnummer | WF-910245 |
| Merk | Westfalia-Automotive |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
With this tow bar and the matching electrical kit from WESTFALIA-Automotive, you receive a branded product of high precision and quality.
Each tow bar can be installed on your own vehicle using the enclosed installation instructions.
Thanks to the EC approval, which all tow bar types from WESTFALIA-Automotive have, there is no registration requirement, and therefore no additional costs for TÜV inspection are incurred.
Each tow bar is protected against weather and environmental influences by a special dipping process, cathodic dip painting.
The scope of delivery of the tow bar includes all screws, cables, plugs, etc. necessary for installation, as well as the installation instructions.
Special features:
also for I30 Coupe 03/13- not for GT, not for Turbo
| Coding/activation | |
|---|---|
| Coding/activation | not necessary |
| EPH deactivation | |
| EPH deactivation | no |
| Electrical kit installation time | |
| Electrical kit installation time | 75 |
| Electrical kit type | |
| Electrical kit type | vehicle-specific |
| Vehicle model | |
| Vehicle model | i30 Coupe |
| Cutout | |
| Cutout | invisible cutout |
| Towing capacity | |
| Towing capacity | 1,500 |
| Installation time | |
| Installation time | 60 min |
| Number of poles | |
| Number of poles | 13 |
| Permanent plus | |
| Permanent plus | optional |
| Tow bar system | |
| Tow bar system | removable KIT, automatic system vertical (A40V) |
| Make | |
| Make | Hyundai |
| Charging cable | |
| Charging cable | no |
| Flasher monitoring | |
| Flasher monitoring | A |
| D-value | |
| D-value | 8.3 KN |
| Tow bar weight | |
| Tow bar weight | 22 kg |
| Tow bar ECE No. | |
| Tow bar ECE No. | 0205 |
| Support load | |
| Support load | 75 kg |
| Year of manufacture | |
| Year of manufacture | 11/2015 |
| Power connection | |
| Power connection | front |
