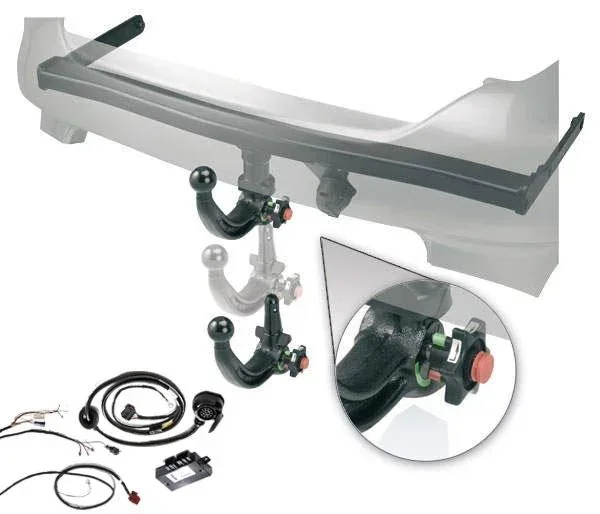

Towbar kit SEAT ALTEA (5P1) from build 09/09
| Artikelnummer | WF-910086 |
| Merk | Westfalia-Automotive |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
With this tow bar and the matching electrical kit from WESTFALIA-Automotive, you receive a branded product of high precision and quality.
Each tow bar can be installed on your own vehicle using the enclosed installation instructions.
Thanks to the EC approval, which all tow bar types from WESTFALIA-Automotive have, there is no registration requirement, and therefore no additional costs for TÜV inspection are incurred.
Each tow bar is protected against weather and environmental influences by a special dipping process, cathodic dip painting.
The scope of delivery of the tow bar includes all screws, cables, plugs, etc. necessary for installation, as well as the installation instructions.
Special features:
also for FR
Please order the flap for the bumper cutout from your Seat dealer, item no. 5P0 803 595.
| Trailer couplings ECE No. | |
|---|---|
| Trailer couplings ECE No. | 3446 |
| Trailer coupling weight | |
| Trailer coupling weight | 20 kg |
| D-value | |
| D-value | 9.3 KN |
| Make | |
| Make | Seat |
| Charging cable | |
| Charging cable | optional |
| Turn signal monitoring | |
| Turn signal monitoring | CAN |
| Installation time | |
| Installation time | 60 min |
| Trailer load | |
| Trailer load | 1,650 |
| Number of poles | |
| Number of poles | 13 |
| Cutout | |
| Cutout | visible cutout |
| Permanent positive | |
| Permanent positive | optional |
| Tow bar system | |
| Tow bar system | removable KIT, automatic system vertical (A40V) |
| Coding/activation | |
| Coding/activation | required |
| Electrical kit installation time | |
| Electrical kit installation time | 90 minutes |
| EPH deactivation | |
| EPH deactivation | yes |
| Year of manufacture | |
| Year of manufacture | 09/2009 |
| Power connection | |
| Power connection | front |
| Drawbar load | |
| Drawbar load | 100 kg |
| Vehicle model | |
| Vehicle model | ALTEA (5P1) |
| Electrical kit type | |
| Electrical kit type | vehicle-specific |
