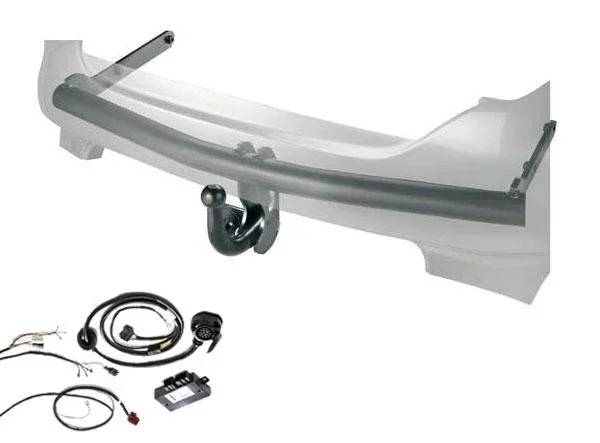

Anhängerkupplungs-Kit VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)
| Artikelnummer | WF-909752 |
| Merk | Westfalia-Automotive |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
With this tow bar and the matching electrical kit from WESTFALIA-Automotive, you receive a branded product of high precision and quality.
Each tow bar can be installed on your own vehicle using the enclosed installation instructions.
Thanks to the EC approval, which all tow bar types from WESTFALIA-Automotive have, there is no registration requirement, and therefore no additional costs for TÜV inspection are incurred.
Each tow bar is protected against weather and environmental influences by a special dipping process, cathodic dip painting.
The delivery scope of the tow bar includes all screws, cables, plugs, etc. necessary for installation, as well as the installation instructions.
Special features:
also for 4-Motion, not for Rockton
To ensure the optimal fit of the bumper, we recommend the installation of two foam supports 7H0 807 252 A, available from your VW dealer
Panel van (without rear side windows) 10/09-: To ensure the optimal fit of the bumper, we recommend the installation of: 1 x plastic strip 7H0 807 723 8 x grommet 357 853 586 B 8 x clip 701 867 299
| Number of poles | |
|---|---|
| Number of poles | 13 |
| Year of manufacture to | |
| Year of manufacture to | 08/2015 |
| Towing capacity | |
| Towing capacity | 2,800 |
| Permanent positive | |
| Permanent positive | included |
| Cutout | |
| Cutout | no cutout |
| EPH deactivation | |
| EPH deactivation | yes |
| Coding/activation | |
| Coding/activation | required |
| Electrical kit installation time | |
| Electrical kit installation time | 180 |
| Electrical kit type | |
| Electrical kit type | vehicle-specific |
| Vehicle model | |
| Vehicle model | MULTIVAN V (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) |
| Make | |
| Make | VW |
| D-value | |
| D-value | 14 KN |
| Trailer coupling weight | |
| Trailer coupling weight | 23 kg |
| Installation time | |
| Installation time | 115 min |
| Trailer coupling ECE No. | |
| Trailer coupling ECE No. | 1870 |
| Charging cable | |
| Charging cable | optional |
| Turn signal monitoring | |
| Turn signal monitoring | CAN |
| Power connection | |
| Power connection | front |
| Year of manufacture from | |
| Year of manufacture from | 10/2009 |
| Tow bar load | |
| Tow bar load | 100 kg |
| Tow bar system | |
| Tow bar system | KIT fixed, welded ball bar (F10) |
