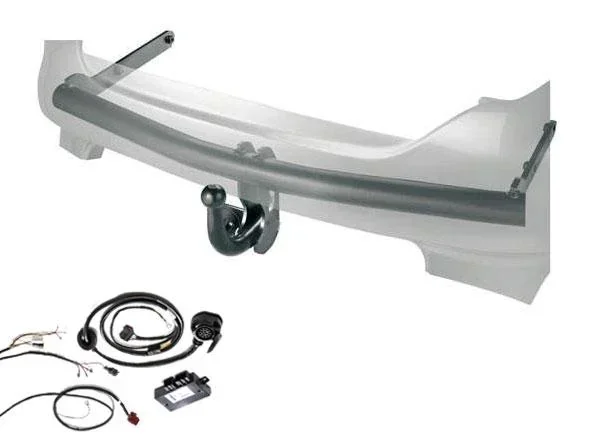

Towbar kit VW TRANSPORTER T5 Box (7HA, 7HH, 7EA, 7EH)
| Artikelnummer | WF-909310 |
| Merk | Westfalia-Automotive |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
With this tow bar and the matching electrical kit from WESTFALIA-Automotive, you receive a branded product of high precision and quality.
Each tow bar can be installed on your own vehicle using the enclosed installation instructions.
Thanks to the EC approval, which all tow bar types from WESTFALIA-Automotive have, there is no registration requirement and therefore no additional costs for TÜV inspection are incurred.
Each tow bar is protected against weather and environmental influences by a special dipping process, cathodic dip painting.
The scope of delivery of the tow bar includes all screws, cables, plugs, etc. necessary for installation and the installation instructions.
Special features:
also for 4-Motion, not for Rockton
To ensure the optimal fit of the bumper, we recommend installing a foam carrier (VW No. 7H0 807 252 A), available from your VAG partner.
Please order from your VW dealer:
Tow bar mount: 7H0 804 897 A, clamping strap: 7H0 867 749
Panel van (without rear side windows) 10/09: To ensure the optimal fit of the bumper, we recommend installing - 1 x plastic strip 7H0 807 723 - 8 x grommets 357 853 586 B - clip 701 867 299
| Vehicle model | |
|---|---|
| Vehicle model | TRANSPORTER T5 Box (7HA, 7HH, 7EA, 7EH) |
| Electrical kit type | |
| Electrical kit type | vehicle-specific |
| Electrical kit installation time | |
| Electrical kit installation time | 45 minutes |
| EPH deactivation | |
| EPH deactivation | yes |
| Coding/activation | |
| Coding/activation | required |
| Make | |
| Make | VW |
| Installation time | |
| Installation time | 115 minutes |
| Trailer coupling ECE No. | |
| Trailer coupling ECE No. | 1870 |
| D-value | |
| D-value | 14 kN |
| Trailer coupling weight | |
| Trailer coupling weight | 22 kg |
| Charging cable | |
| Charging cable | optional |
| Turn signal monitoring | |
| Turn signal monitoring | C2 |
| Nose load | |
| Nose load | 100 kg |
| Year of manufacture from | |
| Year of manufacture from | 04/2003 |
| Power connection | |
| Power connection | rear |
| Tow bar system | |
| Tow bar system | KIT fixed, welded ball bar (F10) |
| Year of manufacture to | |
| Year of manufacture to | 10/2009 |
| Permanent plus | |
| Permanent plus | optional |
| Number of poles | |
| Number of poles | 13 |
| Cutout | |
| Cutout | no cutout |
| Towing capacity | |
| Towing capacity | 2,800 kg |
