Tow bar kit VW GOLF VI (5K1) model 11/09 -11/13
| Artikelnummer | WF-909196 |
| Merk | Westfalia-Automotive |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0

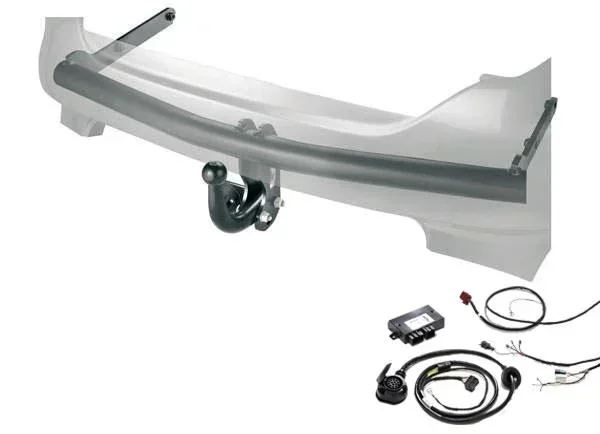

With this tow bar and the matching electrical kit from WESTFALIA-Automotive, you receive a branded product of high precision and quality.
Each tow bar can be installed on your own vehicle using the enclosed installation instructions.
Thanks to the EC approval, which all tow bar types from WESTFALIA-Automotive have, there is no registration requirement, and therefore no additional costs for TÜV inspection are incurred.
Each tow bar is protected against weather and environmental influences by a special dipping process, cathodic dip painting.
The scope of delivery of the tow bar includes all screws, cables, plugs, etc. necessary for installation, as well as the installation instructions.
Special features:
not for R/RS32 09/05- not for R/R20 / 270 HP 09- also for 4-Motion / Gti
| D-value | |
|---|---|
| D-value | 9.4 KN |
| Trailer coupling ECE No. | |
| Trailer coupling ECE No. | 2950 |
| Charging cable | |
| Charging cable | optional |
| Make | |
| Make | VW |
| Turn signal monitoring | |
| Turn signal monitoring | FRE |
| Trailer coupling weight | |
| Trailer coupling weight | 19 kg |
| Vehicle model | |
| Vehicle model | GOLF VI (5K1) |
| Electrical kit type | |
| Electrical kit type | vehicle-specific |
| Coding/activation | |
| Coding/activation | required |
| EPH deactivation | |
| EPH deactivation | yes |
| Electrical kit installation time | |
| Electrical kit installation time | 105 |
| Tow bar system | |
| Tow bar system | KIT fixed, bolted ball bar (F20) |
| Drawbar load | |
| Drawbar load | 100 kg |
| Year of manufacture from | |
| Year of manufacture from | 11/2009 |
| Power connection | |
| Power connection | front |
| Cutout | |
| Cutout | visible cutout |
| Number of poles | |
| Number of poles | 13 |
| Year of manufacture to | |
| Year of manufacture to | 11/2013 |
| Trailer load | |
| Trailer load | 1,800 |
| Installation time | |
| Installation time | 60 min |
| Permanent plus | |
| Permanent plus | included |
