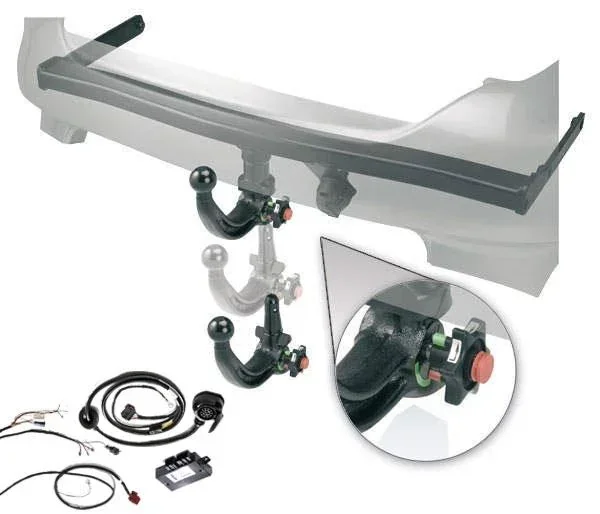

Towbar kit SEAT LEON ST(5F8) from build 11/13
| Artikelnummer | WF-907601 |
| Merk | Westfalia-Automotive |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
With this tow bar and the matching electrical kit from WESTFALIA-Automotive, you receive a branded product of high precision and quality.
Each tow bar can be installed on your own vehicle using the enclosed installation instructions.
Thanks to the EC approval, which all tow bar types from WESTFALIA-Automotive have, there is no registration requirement, and therefore no additional costs for TÜV inspection are incurred.
Each tow bar is protected against weather and environmental influences by a special dipping process, cathodic dip painting.
The tow bar delivery includes all screws, cables, plugs, etc. necessary for installation, as well as the installation instructions.
Special features:
5-door Seat Leon SC, 3-door Seat Leon ST, station wagon also for FR not for Cupra
Please order the flap for the bumper cutout from your Seat dealer.
| Vehicle model | |
|---|---|
| Vehicle model | LEON ST (5F8) |
| Electrical kit type | |
| Electrical kit type | vehicle-specific |
| Drawbar load | |
| Drawbar load | 80 kg |
| Year of manufacture | |
| Year of manufacture | 11/2013 |
| Power connection | |
| Power connection | front |
| Tow bar system | |
| Tow bar system | removable KIT, automatic vertical system (A40V) |
| Charging cable | |
| Charging cable | optional |
| Make | |
| Make | Seat |
| D-value | |
| D-value | 10.3 KN |
| Trailer coupling weight | |
| Trailer coupling weight | 21 kg |
| Flasher monitoring | |
| Flasher monitoring | CAN |
| Coding/activation | |
| Coding/activation | required |
| EPH deactivation | |
| EPH deactivation | yes |
| Electrical kit installation time | |
| Electrical kit installation time | 150 |
| Permanent plus | |
| Permanent plus | included |
| Cutout | |
| Cutout | visible cutout |
| Installation time | |
| Installation time | 60 min |
| Trailer load | |
| Trailer load | 2,000 |
| Number of poles | |
| Number of poles | 13 |
