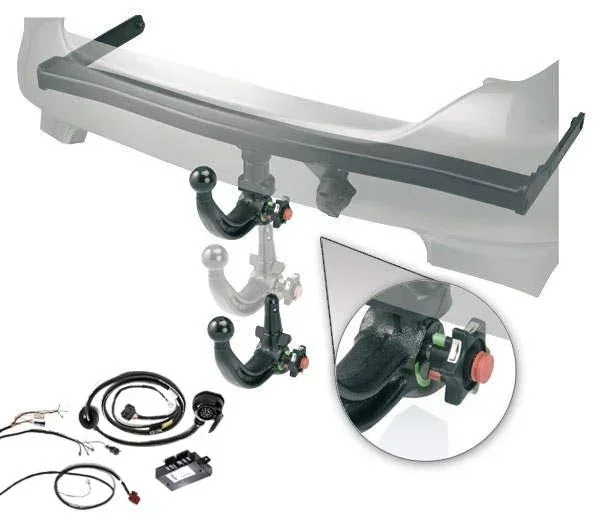

Trailer hitch kit AUDI A3 (8V1, 8VK) from model year 05/14
| Artikelnummer | WF-907560 |
| Merk | Westfalia-Automotive |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
With this tow bar and the matching electrical kit from WESTFALIA-Automotive, you receive a branded product of high precision and quality.
Each tow bar can be installed on your own vehicle using the enclosed installation instructions.
Thanks to the EC approval, which all tow bar types from WESTFALIA-Automotive have, there is no registration requirement and therefore no additional costs for TÜV inspection are incurred.
Each tow bar is protected against weather and environmental influences using a special dipping process, cathodic dip painting.
The scope of delivery of the tow bar includes all screws, cables, plugs, etc. necessary for installation and the installation instructions.
Special features:
Spoiler incl. Please order the cover from your Audi dealer. Also for S-Line, not for S3.
Please note: Depending on the engine variant, modifications to the vehicle's cooling system may be necessary.
| Support load | |
|---|---|
| Support load | 80 kg |
| Year of manufacture | |
| Year of manufacture | 05/2014 |
| Power connection | |
| Power connection | front |
| Vehicle model | |
| Vehicle model | A3 (8V1, 8VK) |
| Electrical kit type | |
| Electrical kit type | vehicle-specific |
| Tow bar system | |
| Tow bar system | removable KIT, automatic system vertical (A40V) |
| Trailer coupling weight | |
| Trailer coupling weight | 21 kg |
| Turn signal monitoring | |
| Turn signal monitoring | CAN |
| Make | |
| Make | Audi |
| D-value | |
| D-value | 10.3 kN |
| Charging cable | |
| Charging cable | optional |
| Coding/activation | |
| Coding/activation | required |
| Electrical kit installation time | |
| Electrical kit installation time | 150 |
| EPH disconnection | |
| EPH disconnection | yes |
| Permanent plus | |
| Permanent plus | included |
| Number of poles | |
| Number of poles | 13 |
| Towing capacity | |
| Towing capacity | 2,000 |
| Installation time | |
| Installation time | 60 min |
| Cutout | |
| Cutout | visible cutout |
