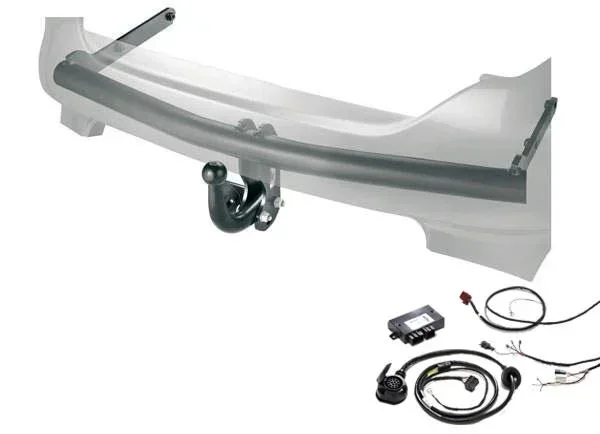

Trailer coupling kit FORD MONDEO V hatchback from build 03/15
| Artikelnummer | WF-906989 |
| Merk | Westfalia-Automotive |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
With this tow bar and the matching electrical kit from WESTFALIA-Automotive, you receive a branded product of high precision and quality.
Each tow bar can be installed on your own vehicle using the enclosed installation instructions.
Thanks to the EC approval, which all tow bar types from WESTFALIA-Automotive have, there is no registration requirement and therefore no additional costs for TÜV inspection are incurred.
Each tow bar is protected against weather and environmental influences by a special dipping process, cathodic dip painting.
The scope of delivery of the tow bar includes all screws, cables, plugs, etc. necessary for installation, as well as the installation instructions.
Special features:
not for vehicles. with level control, not for Vignale model
| Trailer hitch weight | |
|---|---|
| Trailer hitch weight | 25 kg |
| charging cable | |
| charging cable | optional |
| D-value | |
| D-value | 11.9 kN |
| indicator monitoring | |
| indicator monitoring | A |
| Make | |
| Make | Ford |
| Vehicle model | |
| Vehicle model | MONDEO V Saloon (CD) | FUSION |
| Electrical kit type | |
| Electrical kit type | vehicle-specific |
| Year of manufacture | |
| Year of manufacture | 03/2015 |
| Tow bar system | |
| Tow bar system | fixed KIT, bolted ball bar (F20) |
| Power connection | |
| Power connection | rear |
| Drawbar load | |
| Drawbar load | 100 kg |
| Technical features | |
| Technical features | not for vehicles with leveling system |
| Number of poles | |
| Number of poles | 13 |
| Installation time | |
| Installation time | 90 min |
| Trailer load | |
| Trailer load | 2,500 kg |
| Cutout | |
| Cutout | invisible cutout |
| Permanent positive | |
| Permanent positive | optional |
| Electrical kit installation time | |
| Electrical kit installation time | 90 min |
| EPH deactivation | |
| EPH deactivation | button in the dashboard |
| Coding/activation | |
| Coding/activation | possible without coding |
