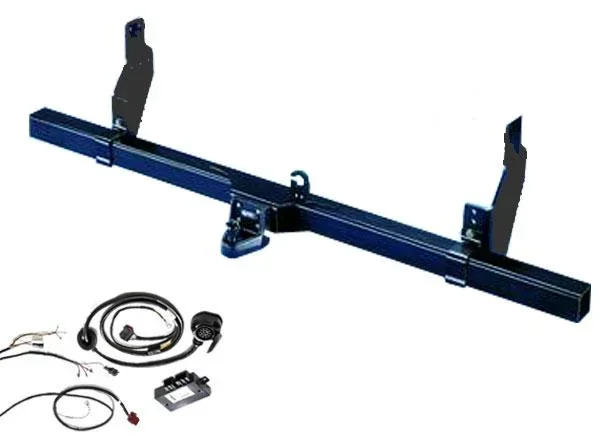

Trailer coupling kit MERCEDES-BENZ SPRINTER 3.5-t flatbed/chassis
| Artikelnummer | WF-903411 |
| Merk | Westfalia-Automotive |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
With this tow bar and the matching electrical kit from WESTFALIA-Automotive, you receive a branded product of high precision and quality.
Each tow bar can be installed on your own vehicle using the enclosed installation instructions.
Thanks to the EC approval, which all tow bar types from WESTFALIA-Automotive have, there is no registration requirement, and therefore no additional costs for TÜV inspection are incurred.
Each tow bar is protected against weather and environmental influences by a special dipping process, cathodic dip painting.
The delivery scope of the tow bar includes all screws, cables, plugs, etc. necessary for installation, as well as the installation instructions.
Special features:
Types 209-224 and 309-324 vehicles with 3.0 and 3.5 t GVW, upgrading to 3.8 t GVW possible, not for vehicles with underrun protection including ball plate.
| Towbar system | |
|---|---|
| Towbar system | KIT tow bar with 4-hole ball plate (F40) |
| Make | |
| Make | Mercedes-Benz |
| Towbar ECE No. | |
| Towbar ECE No. | 2201 |
| D-value | |
| D-value | 18.1 KN |
| Towbar weight | |
| Towbar weight | 22 kg |
| Charging cable | |
| Charging cable | no |
| Turn signal monitoring | |
| Turn signal monitoring | CAN |
| Permanent positive | |
| Permanent positive | optional |
| Towing capacity | |
| Towing capacity | 3,500 |
| Installation time | |
| Installation time | 90 min |
| Number of poles | |
| Number of poles | 13 |
| Cutout | |
| Cutout | no cutout |
| Vehicle model | |
| Vehicle model | SPRINTER 3.5-t flatbed/chassis (906) |
| Electrical kit type | |
| Electrical kit type | vehicle-specific |
| Year of manufacture | |
| Year of manufacture | 05/2016 |
| Drawbar load | |
| Drawbar load | 150 kg |
| Power connection | |
| Power connection | front |
| Coding/activation | |
| Coding/activation | required |
| Electrical kit installation time | |
| Electrical kit installation time | 90 min |
| EPH deactivation | |
| EPH deactivation | yes |
