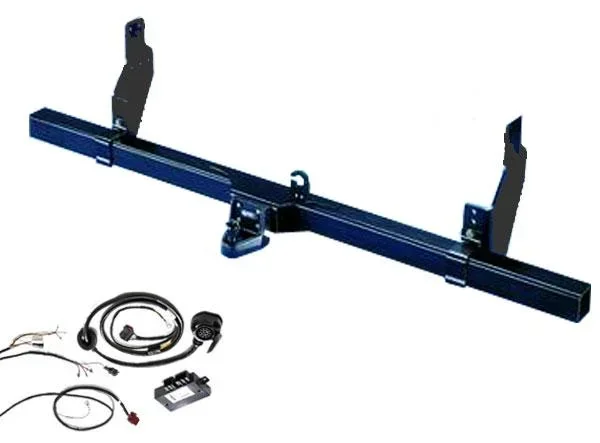

Trailer coupling kit MERCEDES-BENZ SPRINTER 3.5-t Box (906) from
| Artikelnummer | WF-903371 |
| Merk | Westfalia-Automotive |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
With this tow bar and the matching electrical kit from WESTFALIA-Automotive, you receive a branded product of high precision and quality.
Each tow bar can be installed on your own vehicle using the enclosed installation instructions.
Thanks to the EC approval, which all tow bar types from WESTFALIA-Automotive have, there is no registration requirement, and therefore no additional costs for TÜV inspection are incurred.
Each tow bar is protected against weather and environmental influences by a special dipping process, cathodic dip painting.
The delivery scope of the tow bar includes all screws, cables, plugs, etc. necessary for installation, as well as the installation instructions.
Special features:
Types 209-224 and 309-324 vehicles with 3.0 and 3.5 t GVW, upgrading to 3.8 t GVW is possible. For vehicles with bumpers with integrated step, the middle section of the outer skin must be replaced (available from your Mercedes dealer). The DC-IR A906 520 0531 step, including the ball plate, cannot be used. Suitable step: 313285600001 / 313440600001
| Towing capacity | |
|---|---|
| Towing capacity | 3,500 |
| Permanent positive | |
| Permanent positive | optional |
| Cutout | |
| Cutout | no cutout |
| Installation time | |
| Installation time | 120 min |
| Number of poles | |
| Number of poles | 13 |
| Electrical kit type | |
| Electrical kit type | vehicle-specific |
| Vehicle model | |
| Vehicle model | SPRINTER 3.5-t Bus (906) |
| Charging cable | |
| Charging cable | no |
| Turn signal monitoring | |
| Turn signal monitoring | CAN |
| D-value | |
| D-value | 18.1 kN |
| Trailer coupling weight | |
| Trailer coupling weight | 22 kg |
| Make | |
| Make | Mercedes-Benz |
| Trailer coupling ECE No. | |
| Trailer coupling ECE No. | 2200 |
| Coding/activation | |
| Coding/activation | required |
| EPH deactivation | |
| EPH deactivation | yes |
| Electrical kit installation time | |
| Electrical kit installation time | 90 |
| Nose load | |
| Nose load | 150 kg |
| Power connection | |
| Power connection | front |
| Year of manufacture | |
| Year of manufacture | 05/2009 |
| Tow bar system | |
| Tow bar system | KIT tow bar with 4-hole ball plate (F40) |
