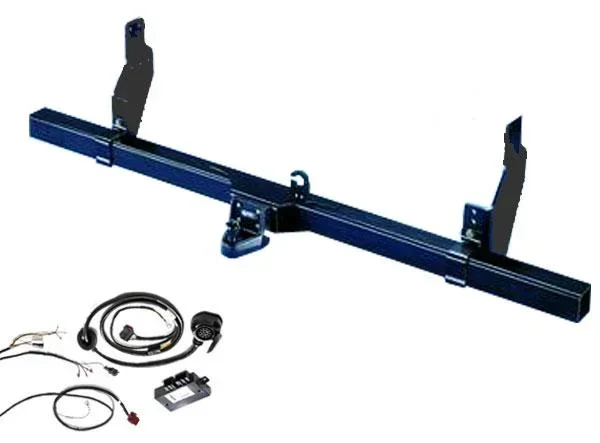

Trailer coupling kit MERCEDES-BENZ SPRINTER 5-t flatbed/chassis
| Artikelnummer | WF-903267 |
| Merk | Westfalia-Automotive |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
With this tow bar and the matching electrical kit from WESTFALIA-Automotive, you receive a branded product of high precision and quality.
Each tow bar can be installed on your own vehicle using the enclosed installation instructions.
Thanks to the EC approval, which all tow bar types from WESTFALIA-Automotive have, there is no registration requirement, and therefore no additional costs for TÜV inspection are incurred.
Each tow bar is protected against weather and environmental influences by a special dipping process, cathodic dip painting.
The delivery scope of the tow bar includes all screws, cables, plugs, etc. necessary for installation, as well as the installation instructions.
Special features:
Types 411-424 and 509-524 vehicles with 5.0 t GVW, reduction to 4.6 t GVW possible Wheelbase: 3665 + 4325 mm including ball plate
| Trailer coupling ECE No. | |
|---|---|
| Trailer coupling ECE No. | 2253 |
| Charging cable | |
| Charging cable | no |
| Turn signal monitoring | |
| Turn signal monitoring | CAN |
| Trailer coupling weight | |
| Trailer coupling weight | 20 kg |
| Make | |
| Make | Mercedes-Benz |
| D-value | |
| D-value | 20.2 KN |
| Vehicle model | |
| Vehicle model | SPRINTER 5-t Platform/Chassis (906) |
| Electrical kit type | |
| Electrical kit type | vehicle-specific |
| Cutout | |
| Cutout | no cutout |
| Installation time | |
| Installation time | 90 min |
| Trailer load | |
| Trailer load | 3,500 kg |
| Year of manufacture to | |
| Year of manufacture to | 12/2009 |
| Permanent plus | |
| Permanent plus | optional |
| Number of poles | |
| Number of poles | 13 |
| Tow bar system | |
| Tow bar system | KIT towing bracket with 4-hole ball plate (F40) |
| Year of manufacture from | |
| Year of manufacture from | 06/2006 |
| Power connection | |
| Power connection | front |
| Drawbar load | |
| Drawbar load | 150 kg |
| Coding/activation | |
| Coding/activation | required |
| Installation time for electrical kit | |
| Installation time for electrical kit | 90 min |
| EPH deactivation | |
| EPH deactivation | yes |
