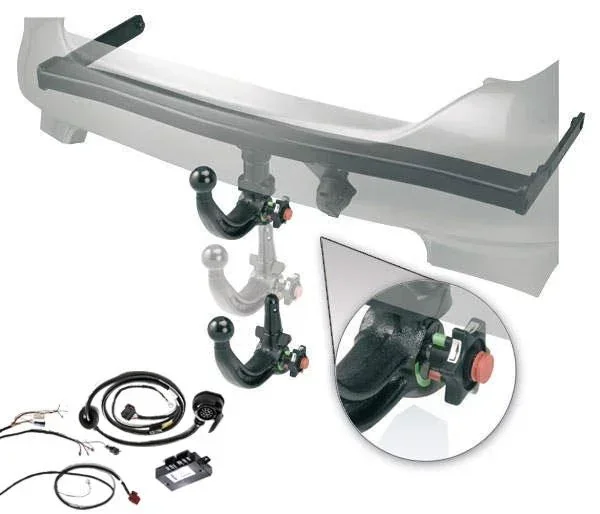

Trailer coupling kit FORD FOCUS III from build 09/14
| Artikelnummer | WF-903042 |
| Merk | Westfalia-Automotive |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
With this tow bar and the matching electrical kit from WESTFALIA-Automotive, you receive a branded product of high precision and quality.
Each tow bar can be installed on your own vehicle using the enclosed installation instructions.
Thanks to the EC approval, which all tow bar types from WESTFALIA-Automotive have, there is no registration requirement, and therefore no additional costs for TÜV inspection are incurred.
Each tow bar is protected against weather and environmental influences by a special dipping process, cathodic dipping.
The delivery scope of the tow bar includes all screws, cables, plugs, etc. necessary for installation, as well as the installation instructions.
Special features:
06/12-: For vehicles with a 1.0 GTDi engine, an auxiliary water pump may need to be retrofitted when installing the tow bar. Details are listed in TSB 35/2012. Not for EcoBoost S / Individual Styling Package, also for facelift 11/2014-.
| Power connection | |
|---|---|
| Power connection | rear |
| Drawbar load | |
| Drawbar load | 75 kg |
| Year of manufacture | |
| Year of manufacture | 09/2014 |
| Tow bar system | |
| Tow bar system | removable KIT, automatic system vertical (A40V) |
| Coding/activation | |
| Coding/activation | required |
| Electrical kit installation time | |
| Electrical kit installation time | 45 minutes |
| EPH deactivation | |
| EPH deactivation | yes |
| Permanent plus | |
| Permanent plus | included |
| Towing capacity | |
| Towing capacity | 1,500 |
| Number of poles | |
| Number of poles | 13 |
| Installation time | |
| Installation time | 60 minutes |
| Cutout | |
| Cutout | invisible cutout |
| D-value | |
| D-value | 10 kN |
| Tow bar weight | |
| Tow bar weight | 23 kg |
| Charging cable | |
| Charging cable | optional |
| Make | |
| Make | Ford |
| Turn signal monitoring | |
| Turn signal monitoring | CAN |
| Tow bar ECE No. | |
| Tow bar ECE No. | 3264 |
| Vehicle model | |
| Vehicle model | FOCUS III |
| Electrical kit type | |
| Electrical kit type | vehicle-specific |
