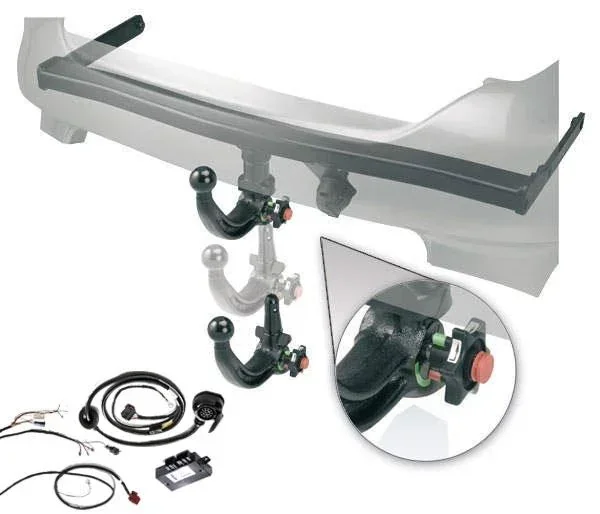

Trailer coupling kit FORD C-MAX (DM2) Build. 02/07 - 09/10
Gegarandeerd Veilig afrekenen
| Artikelnummer | WF-902929 |
| Merk | Westfalia-Automotive |
Recensies
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te maken
Vragen
Er zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
0 reviews
With this tow bar and the matching electrical kit from WESTFALIA-Automotive, you receive a branded product of high precision and quality.
Each tow bar can be installed on your own vehicle using the enclosed installation instructions.
Thanks to the EC approval, which all tow bar types from WESTFALIA-Automotive have, there is no registration requirement and therefore no additional costs for TÜV inspection are incurred.
Each tow bar is protected against weather and environmental influences by a special dipping process, cathodic dip painting.
The scope of delivery of the tow bar includes all screws, cables, plugs, etc. necessary for installation and the Assembly instructions.
Special features:
Van
| Cutout | |
|---|---|
| Cutout | invisible cutout |
| Permanent power | |
| Permanent power | optional |
| Installation time | |
| Installation time | 90 min |
| Trailer load | |
| Trailer load | 1,590 |
| Number of poles | |
| Number of poles | 13 |
| Year of manufacture until | |
| Year of manufacture until | 09/2010 |
| Vehicle model | |
| Vehicle model | C-MAX (DM2) |
| Electrical kit type | |
| Electrical kit type | vehicle-specific |
| Tow bar system | |
| Tow bar system | removable KIT, automatic system vertical (A40V) |
| Year of manufacture from | |
| Year of manufacture from | 02/2007 |
| Power connection | |
| Power connection | rear |
| Nose load | |
| Nose load | 75 kg |
| D-value | |
| D-value | 8.7 KN |
| Trailer coupling ECE No. | |
| Trailer coupling ECE No. | 1783 |
| Trailer coupling weight | |
| Trailer coupling weight | 23 kg |
| Charging cable | |
| Charging cable | no |
| Turn signal monitoring | |
| Turn signal monitoring | FRE |
| Make | |
| Make | Ford |
| Electrical kit installation time | |
| Electrical kit installation time | 45 min |
| EPH deactivation | |
| EPH deactivation | yes |
| Coding/activation | |
| Coding/activation | not necessary |
