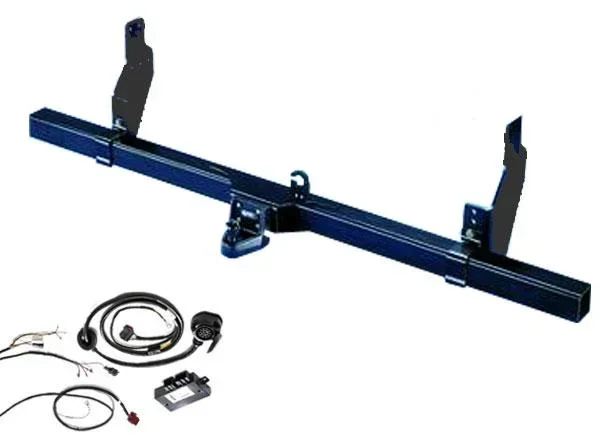

Towbar kit PEUGEOT BOXER platform/chassis from model year 04/
| Artikelnummer | WF-902529 |
| Merk | Westfalia-Automotive |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
With this tow bar and the matching electrical kit from WESTFALIA-Automotive, you receive a branded product of high precision and quality.
Each tow bar can be installed on your own vehicle using the enclosed installation instructions.
Thanks to the EC approval, which all tow bar types from WESTFALIA-Automotive have, there is no registration requirement and therefore no additional costs for TÜV inspection are incurred.
Each tow bar is protected against weather and environmental influences using a special dipping process, cathodic dip painting.
The scope of delivery of the tow bar includes all screws, cables, plugs, etc. necessary for installation and the installation instructions.
Special features:
Incl. ball plate For vehicles. With long overhang L4/XL, please order a set of spacer tubes for frame reinforcement, item no. 906270650003.
| Trailer coupling ECE No. | |
|---|---|
| Trailer coupling ECE No. | 2390 |
| Trailer coupling weight | |
| Trailer coupling weight | 33 kg |
| Charging cable | |
| Charging cable | no |
| Turn signal monitoring | |
| Turn signal monitoring | FRE |
| D-value | |
| D-value | 15.9 kN |
| Make | |
| Make | Peugeot |
| Electrical kit installation time | |
| Electrical kit installation time | 90 minutes |
| EPH deactivation | |
| EPH deactivation | no |
| Coding/activation | |
| Coding/activation | not necessary |
| Electrical kit type | |
| Electrical kit type | vehicle-specific |
| Vehicle model | |
| Vehicle model | Boxer flatbed/chassis |
| AHK system | |
| AHK system | KIT towing bracket with 4-hole ball plate (F40) |
| Number of poles | |
| Number of poles | 13 |
| Towing capacity | |
| Towing capacity | 3,000 kg |
| Permanent power | |
| Permanent power | included |
| Installation time | |
| Installation time | 120 minutes |
| Cutout | |
| Cutout | no cutout |
| Power connection | |
| Power connection | front |
| Year of manufacture | |
| Year of manufacture | 04/2006 |
| Drawbar load | |
| Drawbar load | 150 kg |
