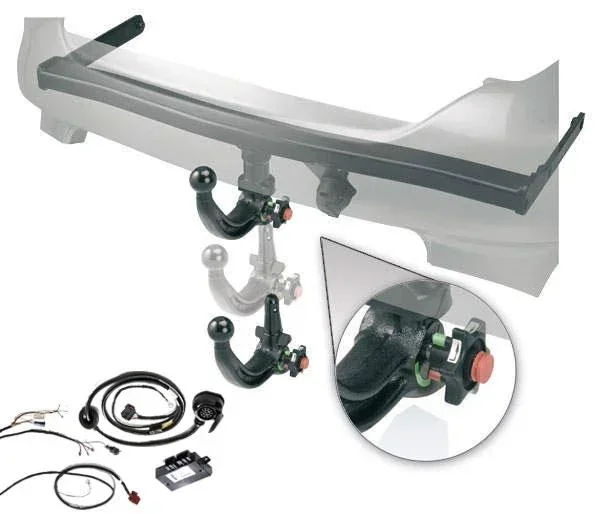

Towbar kit AUDI Q5 (8R) from build 09/15
| Artikelnummer | WF-902250 |
| Merk | Westfalia-Automotive |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
With this tow bar and the matching electrical kit from WESTFALIA-Automotive, you receive a branded product of high precision and quality.
Each tow bar can be installed on your own vehicle using the enclosed installation instructions.
Thanks to the EC approval, which all tow bar types from WESTFALIA-Automotive have, there is no registration requirement and therefore no additional costs for TÜV inspection are incurred.
Each tow bar is protected against weather and environmental influences by a special dipping process, cathodic dip painting.
The scope of delivery of the tow bar includes all screws, cables, plugs, etc. necessary for installation and the installation instructions.
Special features:
also for S-Line, also for SQ5 Attention: Depending on the engine variant, changes to the vehicle's cooling system may be necessary.
| Electrical kit installation time | |
|---|---|
| Electrical kit installation time | 60 minutes |
| EPH deactivation | |
| EPH deactivation | yes |
| Coding/activation | |
| Coding/activation | required |
| Tow bar system | |
| Tow bar system | removable KIT, automatic vertical system (A40V) |
| Power connection | |
| Power connection | rear |
| Year of manufacture | |
| Year of manufacture | 09/2015 |
| Drawbar load | |
| Drawbar load | 100 kg |
| D-value | |
| D-value | 12.08 KN |
| Tow bar ECE No. | |
| Tow bar ECE No. | 4271 |
| Make | |
| Make | Audi |
| Tow bar weight | |
| Tow bar weight | 26 kg |
| Charging cable | |
| Charging cable | optional |
| Turn signal monitoring | |
| Turn signal monitoring | CAN |
| Permanent plus | |
| Permanent plus | included |
| Towing capacity | |
| Towing capacity | 2,400 |
| Number of poles | |
| Number of poles | 13 |
| Installation time | |
| Installation time | 90 minutes |
| Cutout | |
| Cutout | invisible cutout |
| Vehicle model | |
| Vehicle model | Q5 (8RB) |
| Electrical kit type | |
| Electrical kit type | vehicle-specific |
