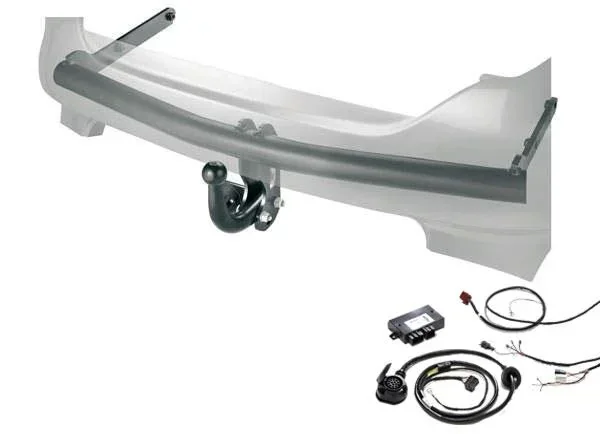

Trailer coupling kit BMW X1 (E84) Bauj. 10/09 -06/15
| Artikelnummer | WF-901092 |
| Merk | Westfalia-Automotive |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
With this tow bar and the matching electrical kit from WESTFALIA-Automotive, you receive a branded product of high precision and quality.
Each tow bar can be installed on your own vehicle using the enclosed installation instructions.
Thanks to the EC approval, which all tow bar types from WESTFALIA-Automotive have, there is no registration requirement and therefore no additional costs for TÜV inspection are incurred.
Each tow bar is protected against weather and environmental influences by a special dipping process, cathodic dip painting.
The delivery scope of the tow bar includes all screws, cables, plugs, etc. necessary for installation, as well as the installation instructions.
Trailer hitch special features:
E84 Not for vehicles with factory-fitted bicycle carrier,
also for M-Sport package / X-drive
| Vehicle model | |
|---|---|
| Vehicle model | X1 (E84) |
| Electrical kit type | |
| Electrical kit type | vehicle-specific |
| Power connection | |
| Power connection | rear |
| Tow bar system | |
| Tow bar system | KIT fixed, bolted ball bar (F20) |
| Drawbar load | |
| Drawbar load | 80 kg |
| Year of manufacture | |
| Year of manufacture | 10/2009 |
| Technical features | |
| Technical features | not for vehicles with factory-fitted bike rack |
| Tow bar ECE No. | |
| Tow bar ECE No. | 3254 |
| Tow bar weight | |
| Tow bar weight | 19 kg |
| Charging cable | |
| Charging cable | optional |
| Flasher monitoring | |
| Flasher monitoring | CAN |
| Make | |
| Make | BMW |
| D-value | |
| D-value | 10.3 KN |
| EPH deactivation | |
| EPH deactivation | button in the dashboard |
| Coding/activation | |
| Coding/activation | not necessary |
| Electrical kit installation time | |
| Electrical kit installation time | 60 minutes |
| Permanent plus | |
| Permanent plus | included |
| Cutout | |
| Cutout | no cutout |
| Towing capacity | |
| Towing capacity | 2,000 kg |
| Installation time | |
| Installation time | 90 minutes |
| Number of poles | |
| Number of poles | 13 |
| Year of manufacture to | |
| Year of manufacture to | 06/2015 |
