- Maximum comfort: Open swing gates comfortably and easily – from the driver's seat of your car!
- Swing gate operator for swing gates with 2 leaves (max. leaf width: 2 x 2.5 m)
- Obstacle detection, pedestrian function, soft start and soft stop function, automatic force adjustment, data retention in the event of a power failure, and much more.
- Numerous functions can be individually adjusted (easy adjustment via clearly assigned switches for each function).
- Includes 2 remote controls (4-channel handheld transmitter) and emergency release for inside
The powerful swing gate operator with a strong 2000 N pulling force per drive arm relieves you of this annoying chore. You simply control the gate opener using the remote control (included) – and can stay comfortably seated in your car.
You remain flexible: The practical pedestrian function allows partial opening of the swing gate to allow pedestrians to pass.
- Automatic end position programming: The TWIN 300 swing gate opener automatically sets the exact end positions of your gate leaves.
- The swing gate opener features a linear spindle drive with a long service life (maintenance-free).
- Numerous functions can be individually adjusted.
- Includes two Schellenberg handheld transmitters with a range of up to 40 m (up to four handheld transmitters can be programmed in total).
- Includes emergency release for manual operation in the event of a power failure.
- A signal light can be connected to the swing gate opener (not included).
Individual adjustment of functions:
With the TWIN 300 swing gate operator from Schellenberg, you can adapt numerous functions to your individual needs. It's very easy: There is a clearly assigned toggle switch on the control board for each setting option.
The following setting options are available:
- Adjustment of the travel speed
- Adjustment of the travel speed for soft start and soft stop
- Automatic closing function (Caution: You must connect a light barrier for this!)
- Adjustment of the opening and closing delay
- Adjustment of the opening angle for the pedestrian function
Additional information on the TWIN 300 swing gate operator:
Please note the distance dimensions of the drive motors when attaching. The gate system must be limited by a stop in the ground when closed. The gates must not bend or twist under load. The drive arms must be attached to a point on the gate that can withstand loads.
Technical Data
- Supply voltage: 220 to 240 Volt / 50 Hz
- Control voltage: 24 Volt DC
- Tensile force per drive arm: 2000 N
- Power: 100 Watts
- Drive length retracted: 799 mm
- Drive length extended: 1199 mm
- Temperature range: -20°C to + 50°C
- Radio frequency: 433.92 MHz
- Handheld transmitter range: max. 40 m (outdoors)
- Protection class: IP 44

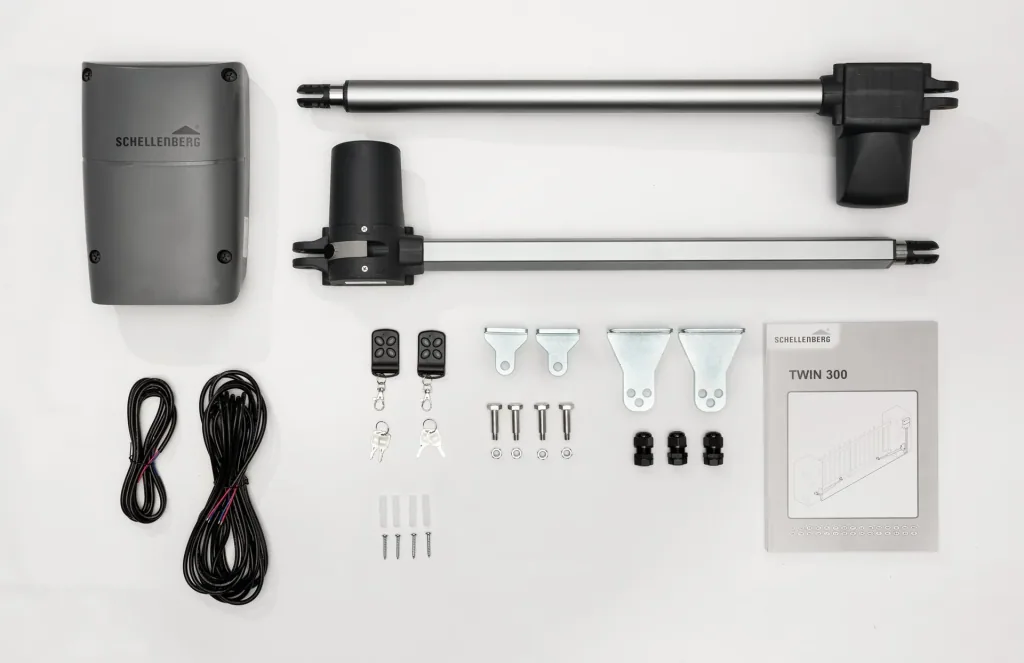

Scope of delivery
- 2 drive motors
- 1 control box
- 1 connection cable for motor arm (7 m)
- 1 connection cable for motor arm (2 m)
- 3 cable glands with strain relief
- 2 fastening brackets for posts
- 2 fastening brackets for gates
- 4 connecting bolts with nuts
- 4 fastening screws and dowels for the control unit
- 2 hand-held transmitters
- 2 x 2 emergency release keys
- 1 assembly instructions
| Voltage | |
|---|---|
| Voltage | 230 V |
| IP protection class | |
| IP protection class | IP44 |
| Output power | |
| Output power | 100 W |
| Number of batteries | |
| Number of batteries | 2 |
| Maximum force | |
| Maximum force | 2000 N |
| Battery type | |
| Battery type | Primary alkaline manganese (AlMn) cells up to 50 g |
| Frequency | |
| Frequency | 433.92 |
| External dimensions | |
| External dimensions | 779-1199 mm |
| Temperature range | |
| Temperature range | -20 to +50 °C |
