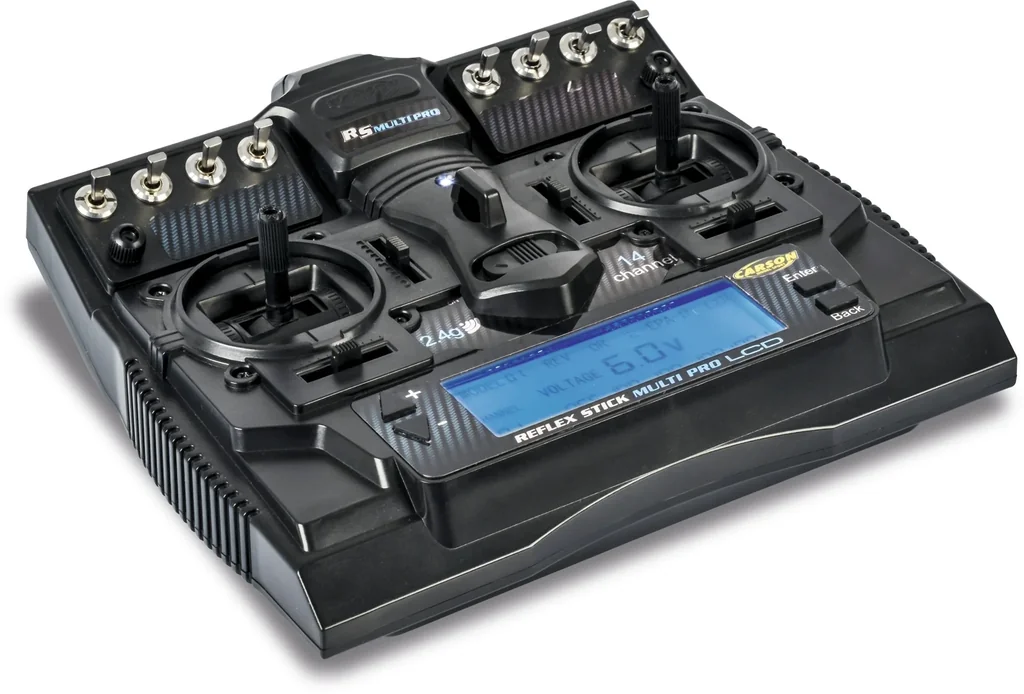

Remote control Reflex Stick Multi Pro LCD 2.4G 14CH

• 14 controllable channels
• 15 model memories
• 2.4G servo reverse (reversal of the running direction) and trim function for channels
• 100% compatible with TAMIYA MFC 01/03 and DMD unit
• Blue illuminated LCD display
• Includes charging socket

Reflex Stick Multi Pro LCD - Professional, modern and technically high-quality 14-channel remote control system with 15 model memories for universal use in many RC vehicles and ships. 14 channels can be controlled independently via 2 control sticks and 10 switches (4x buttons / 4x step switches / 2x rotary potentiometers), for example functions such as light/sound, horn, cable winch, support legs, water pump and fire monitor. The REFLEX STICK Multi Pro 14 Channel LCD system is fully compatible with the MFC 01/03 and DMD unit from TAMIYA.

Technical Specifications

• Transmitter operating voltage 4.8 - 6 V (4 AA cells)
• 2.4G FHSS system (Frequency Hopping Spread Spectrum)
• 2.4G servo reverse (reversing the direction of rotation) and trim function for channels
• 4x buttons ON/OFF/ON, 4x switches ON/OFF/ON, 2x rotary potentiometers
• Receiver power supply 4.8 - 6 V
• Connector system Graupner J/R
• Dual Rate channels 1-4 (servo travel limitation)
• EPA channels 1-4 (Servo travel limit)
• EXP function channels 1-4 (exponential)
• Failsafe function

Required accessories

• AA battery set

Scope of delivery

• 14-channel 2.4 GHz transmitter
• 14-channel 2.4 GHz receiver
• Multilingual manual

Safety information

Not suitable for children under 14 years of age. The packaging must be retained as it contains important information. The illustrations may differ from the product inside the packaging. TAMIYA-CARSON reserves the right to make improvements and changes at any time.
