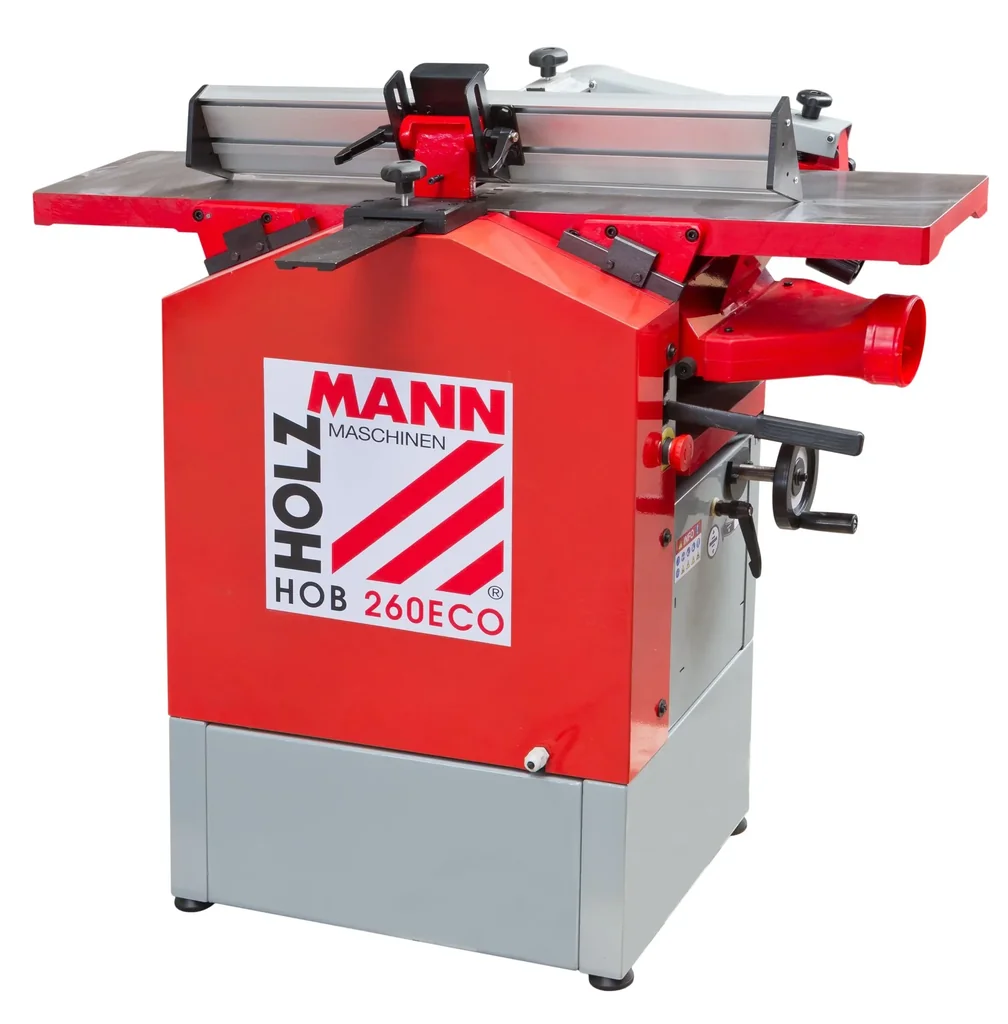

Abricht-/ Dickenhobel HOB260ECO 400 Volt
| Artikelnummer | WF-891813 |
| Merk | Holzmann |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
With laterally hinged cast iron tables for comfortable thickness planing
• Stable base ensures high stability
• Pivoting jointer stop
• Extraction connection enables dust and chip-free working
• Feed can be switched off optionally
Technical data
• Jointer stop max. clamping distance 3mm
• Jointer stop 700x130mm
• Pivoting range jointer stop 90-45°
• Jointer table size 1085x256mm
• Motor power S1 1500 W
• Motor power S6 2100 W
• Feed speed 5.5
• Installation dimensions 1084x472x1050 mm
• Table height 850mm
• Extraction connection 100 mm
• Thicknesser table size 245x590 mm
• Thicknesser max. clamping removal 2 mm
• Planer shaft diameter 75 mm
• Planer shaft speed 4000 min-1
• Number of planer knives 3
• Sound power level 93 dB(A)
Scope of delivery
• Strip planer knives 3 pcs. (250x30x3mm)
• Jointer stop
• Operating tool
• Shaft cover
| Weight | |
|---|---|
| Weight | 140 kg |
| Noise level | |
| Noise level | 93 |
| Voltage | |
| Voltage | 400 V |
| Chip removal | |
| Chip removal | 3 mm |
| Swivel range | |
| Swivel range | 90 - 45 degrees |
| External dimensions | |
| External dimensions | 1084 x 472 x 1050 |
| Table size | |
| Table size | 1085 x 256 |
| Feed rate | |
| Feed rate | 5.5 m/min |
| Drive | |
| Drive | 230 V motor |
