Platte zuigpomp GFS 401 S
Gegarandeerd Veilig afrekenen
| Artikelnummer | WF-890834 |
| Merk | Güde |
Recensies
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te maken
Vragen
Er zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
0 reviews
- Variably adjustable float switch
- Housing made of impact-resistant plastic
- Impeller made of Noryl
- Mechanical seal
- 10 m connection cable
- Carrying handle
- Thermal protection
- Min. switch-on height 30 mm
- Integrated check valve

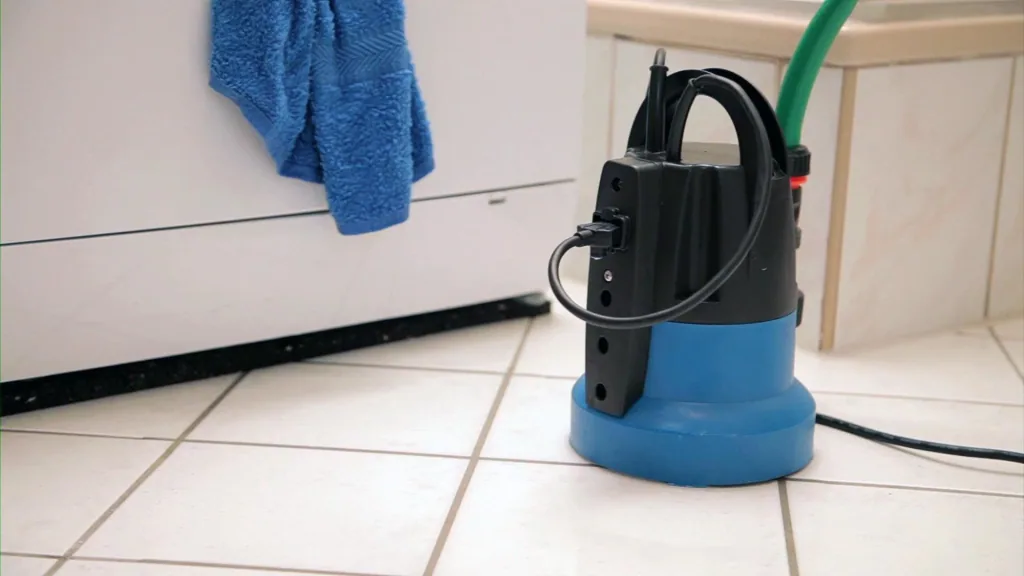

This submersible pump is ideal for draining flat surfaces until they are wipe-dry. For pumping from containers or cisterns. The sensor automatic switch-off allows different suction heights to be selected.
Automatic switch-off via integrated electronic control
Sensor switch can be fixed in 3 positions and for continuous operation
Technical data
- Mains voltage: 230 Volt
- Frequency: 50 Hz
- Motor power (P1): 400
- Protection class (IP): X8
- Delivery volume: 7000 l/h
- Max. delivery head: 8 m
- Max. immersion depth: 7 m
- Max. grain size: 1 mm
- Max. suction: 1 mm
- Max. Water temperature: 35 °C
- Connection thread: IG 1 1/2 "
- Length of the connection cable: 1000 cm
Dimensions L x W x H: 280 x 280 x 200 mm
Weight: 4.3 kg
| Weight | |
|---|---|
| Weight | 4.3 kg |
| Flow rate | |
| Flow rate | 7,000 l/min |
| Voltage | |
| Voltage | 230 V |
| Cable length | |
| Cable length | 10 m |
| Output power | |
| Output power | 400 W |
| Material | |
| Material | Plastic |
| Drive | |
| Drive | 230 V motor |
| Maximum water temperature | |
| Maximum water temperature | 35 °C |
| Technical features | |
| Technical features | Float switch |
| Technical features | Thermal protection switch |
| External dimensions | |
| External dimensions | 280 x 280 x 200 mm x mm x mm |
| Switching point on | |
| Switching point on | 30 mm |
| Connection size | |
| Connection size | 1 1/2 |
| Solids size | |
| Solids size | 1 mm |
| Delivery head | |
| Delivery head | 8 m |
| Frequency | |
| Frequency | 50 |
| Max. immersion depth | |
| Max. immersion depth | 7 m |
Naam EU-verantwoordelijke: GÜDE GmbH & Co. KG
EU-verantwoordelijke straat: Birkichstrasse
EU-verantwoordelijke Huisnummer: 6
Postcode EU-verantwoordelijke: 74549
EU-verantwoordelijke gemeente: Wolpertshausen
EU-verantwoordelijk land: Germany
EU-verantwoordelijke e-mail: [email protected]
EU-verantwoordelijk telefoonnummer: +49 7904 700-0

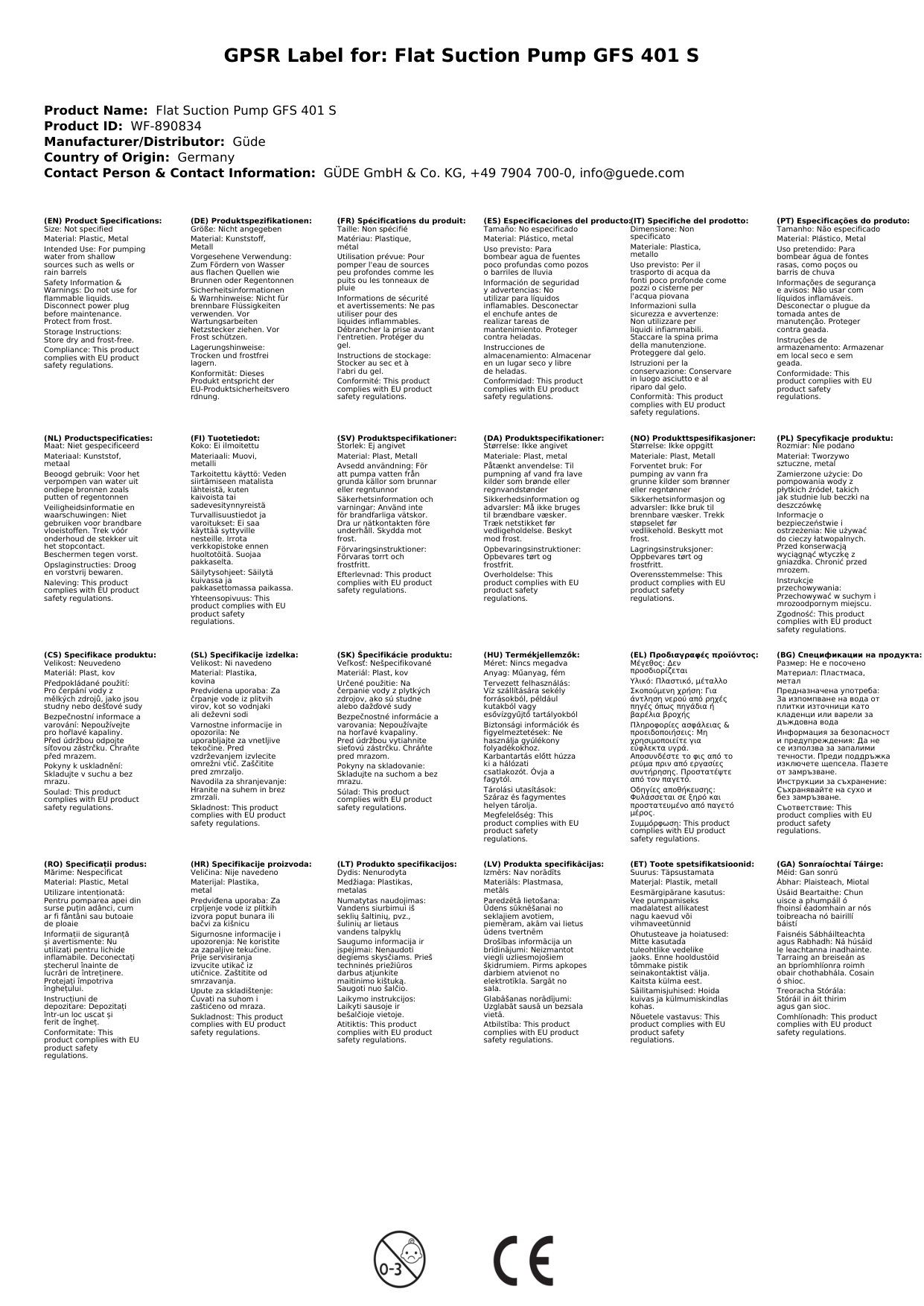

GPSR bijlage:
