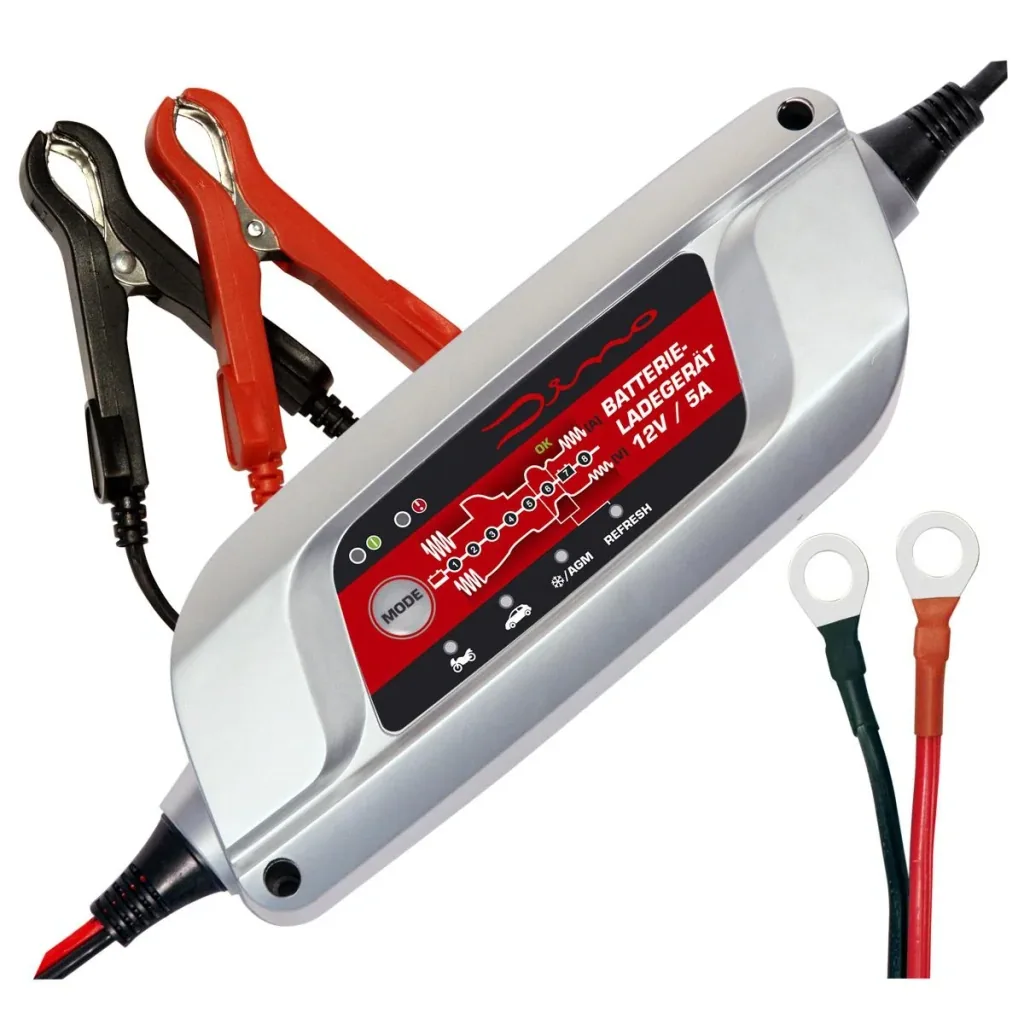

Battery charger 12 Volt - 5A, 8-stage
Gegarandeerd Veilig afrekenen
| Artikelnummer | WF-882693 |
| Merk | Dino |
Recensies
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te maken
Vragen
Er zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
0 reviews
- 8 charging steps for a long battery life
- Pulse charging for maximum battery life
- Revives deeply discharged vehicle batteries
- Battery refresh function
- 4 charging programs
- Trick charging up to 200Ah
- Breaking up sulfation
- Soft-start function
- Battery capacity test
- Multiple overload protection
- Suitable for continuous charging
- For all common 12V lead-acid batteries 10Ah-120Ah
- Microprocessor controlled
- Absorption: 14.4V, 14.7V, 15.8V
- Trick charging up to 200 Ah
- Battery capacities: 10 Ah to 120 Ah
- Maximum charging current 5.0 A
- Cable length of continuous charging cable: 1.55 m
- Cable length of clamp cable: 1.55 m
- Cable length of power cable: 1.5 m
- Cable with quick connectors
- Protected against water jets from any angle (IP65)
- Reverse polarity protection, overheating protection, overload protection, short circuit protection
Special charging functions
Refresh mode: The refresh function increases performance and extends the life of the battery.AGM/Frost mode: Frost & AGM function for an adapted charging process at low temperatures below 4°C or for AGM batteries.
Step 1 (Breaking down sulfation) Detects batteries affected by sulfate deposits and removes these deposits using pulsating current and voltage to restore optimal battery capacity.
Step 2 (Soft Start)
Tests the battery's charging capability and only starts the charging process if the result is positive. This prevents damage.
Step 3 (Charging up to 80%)
After a successful test, charges the battery with maximum current up to a charge level of approximately 80%.
Step 4 (Charging up to 95%)
Charges with decreasing current up to a charge of 95%.
Step 5 (Capacity Test)
Tests the battery for charge retention. Indicates when the battery cannot maintain the voltage. Defective batteries are indicated by the red LED and should be replaced.
Step 6 (Refresh 100%)
Select Refresh by pressing the Mode button to incorporate this mode into the automatic sequence. The Refresh function causes a controlled degassing of the battery acid. This ensures full charge and increases the battery's durability and performance.
Step 7 (Trick Charge)
Charge maintenance at constant battery voltage and low charging current
Step 8 (Pulse Charge 95-100%)
If the voltage drops below 95%, 100% of the charge is restored with charging pulses, preventing re-sulfation.

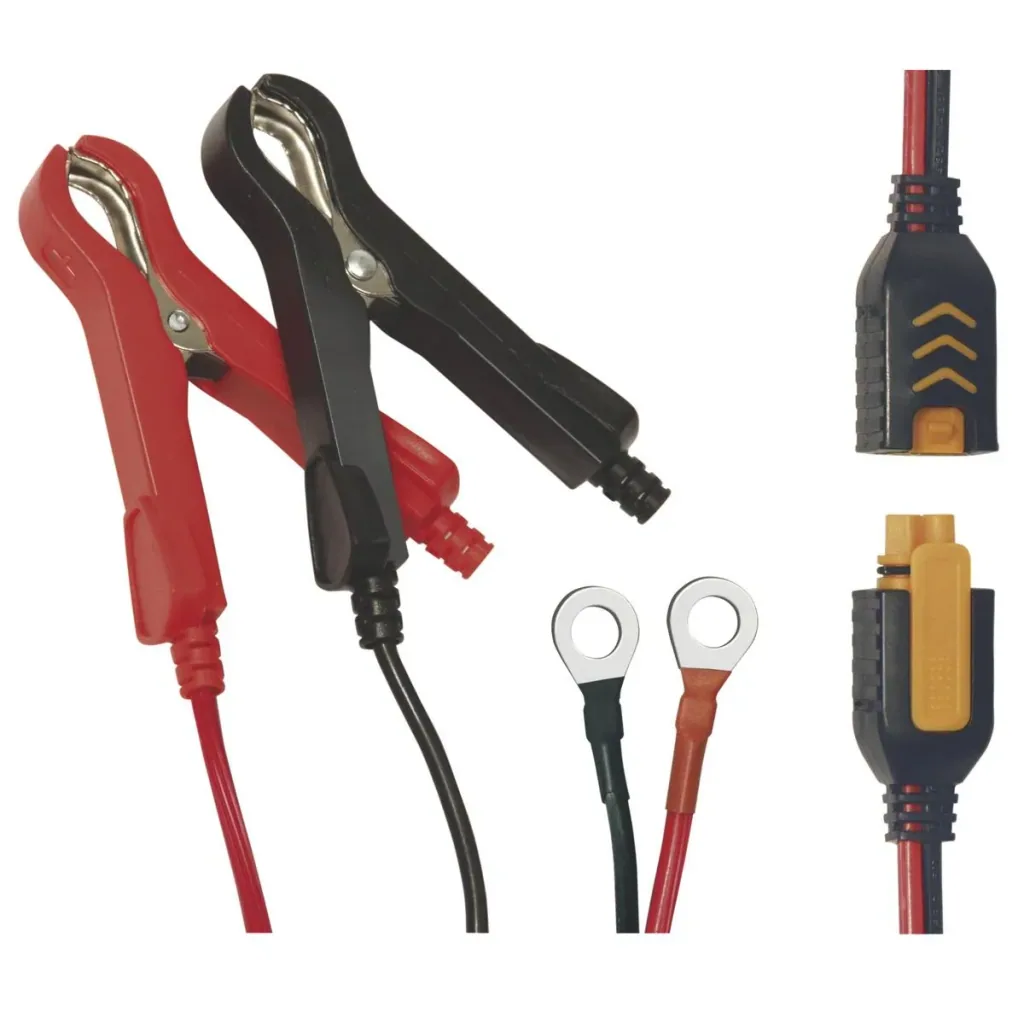

Scope of delivery
Charger (protection class IP65)Charging cable with clamps (protection class IP65)
Charging cable for permanent installation (protection class IP65)
Instructions for use
