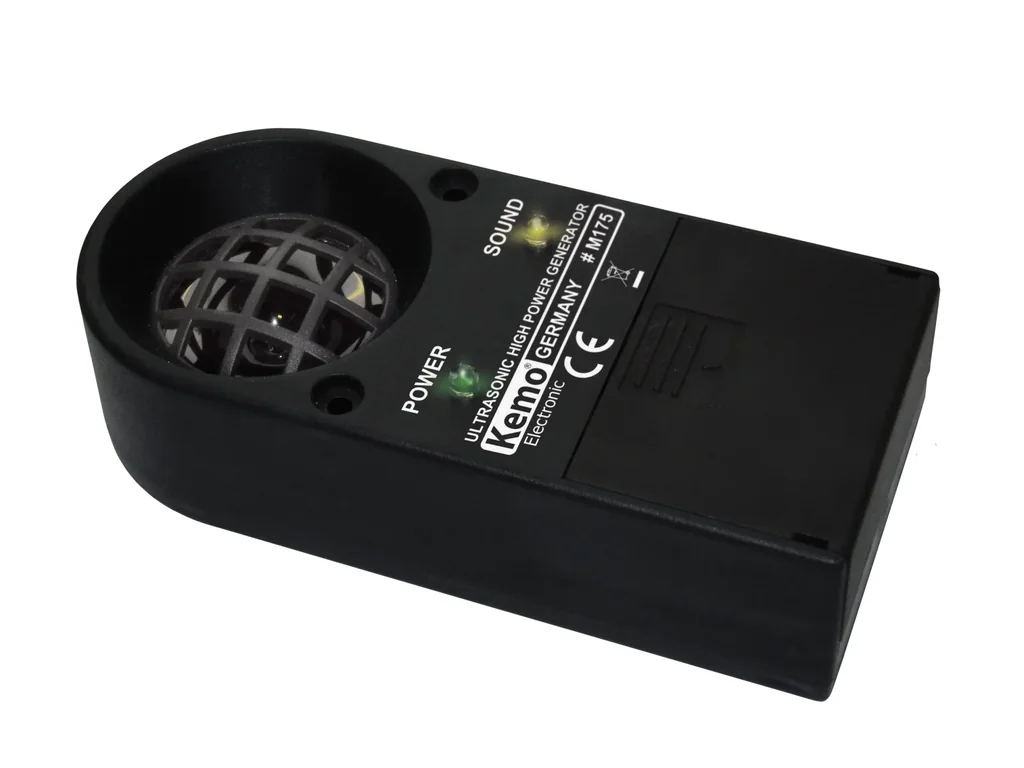

Animal Repeller Ultrasonic Powerful

Generates very loud, siren-like, pulsating, aggressive ultrasonic tones, which are perceived as extremely unpleasant by many animals and are therefore largely avoided (very often, not always).

The generator should be used to keep rodents, insects, crawling parasites, game and birds away. The sound frequency can be adjusted between ultrasound (inaudible to humans) and loud + high tones that are audible to humans.

Technical data

• Operating voltage: 12 - 14 V/DC (stabilized power supply or 12 Volt battery > 12 Ah is required)
• Current consumption: max. 150 mA
• Ultrasonic frequency: approx. 7 kHz - 38 kHz. Pulsating siren-like sound (adjustable)
• LED indicators: one LED each for "Power On" and "Sound Output"
• Connections: for up to 2 additional L020 speakers (not included)
• Acoustic range: max. 100 m, expandable with additional L020 speakers
• Sound pressure: max. 135 dB ± 30% (Ultrasonic devices should have a sound pressure level above 100 dB (C) to avoid habituation).
• Speaker: High-power ultrasonic speaker with plastic membrane
• 40 volts (<20 ms)
• Dimensions: approx. 140 x 65 x 37 mm

Frequencies according to control setting (1 kHz = 1000 Hz)

• 1 - 2: approx. 8 - 9 kHz
• 3: approx. 9 - 10 kHz
• 4: approx. 10 - 12 kHz
• 5: approx. 12 - 14 kHz6: approx. 14 - 16 kHz
• 7: approx. 17 - 19 kHz
• 8: approx. 26 - 30 kHz
• 9 - 10: approx. 38 - 43 kHz

Experience values

• Birds: approx. 10 - 12 kHz
• Rodents, predators: approx. 20 - 30 kHz
• Insects: approx. 27 - 38 kHz

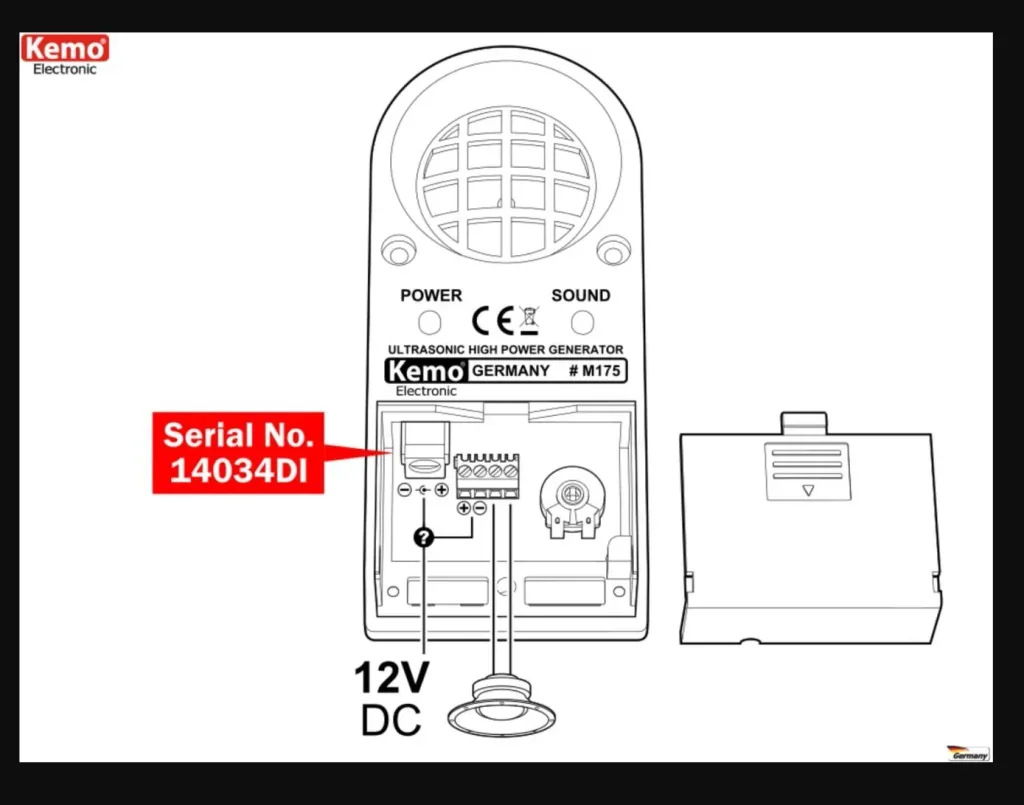

 The animal repeller M175 can be used with a mains adapter or with a car battery. The distributor has two terminal blocks with which the device can be connected to either a mains adapter or the car battery using a cable (not included).
