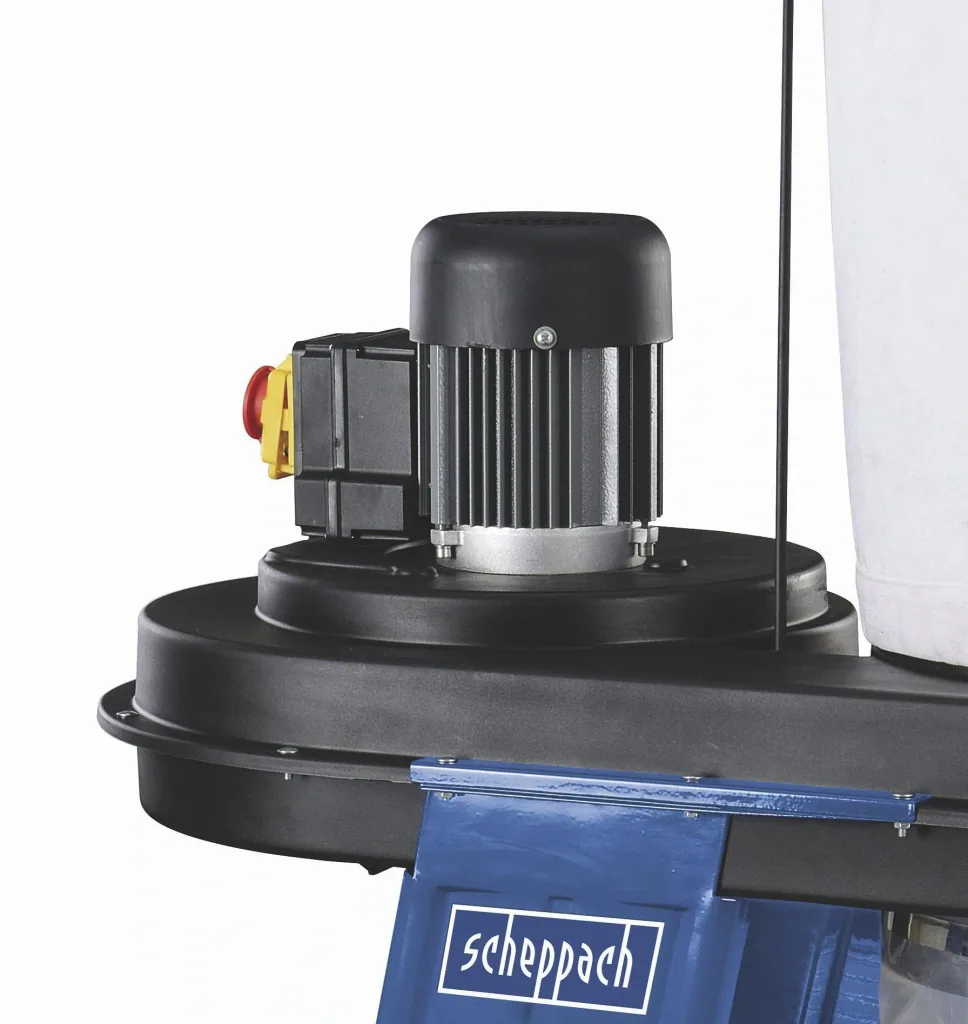

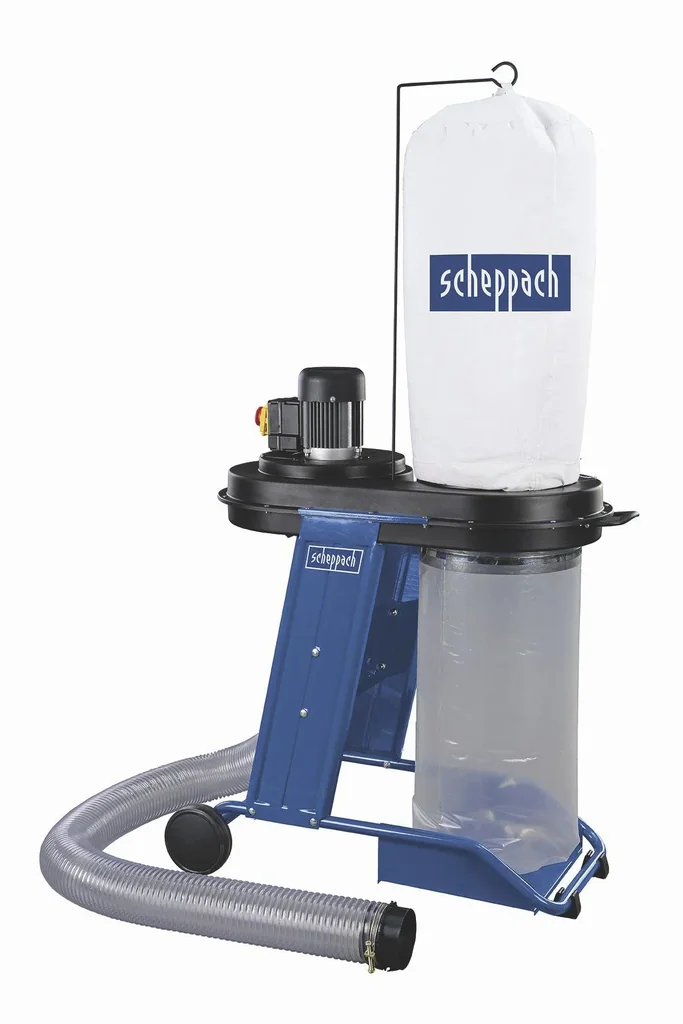

Extractor system HD 12, 230 volts, 550 watts
Gegarandeerd Veilig afrekenen
| Artikelnummer | WF-872711 |
| Merk | Scheppach |
Recensies
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te maken
Vragen
Er zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
0 reviews
An unobstructed view of the workpiece is just as important for precise sawing, sanding, or planing as a workshop with dust-free corners. It's also well known that dust particles in the air pose a significant health risk, even for DIY enthusiasts.
Thanks to the 100 mm diameter hose and the reducing ring, this extraction system can be easily connected to most machines and ensures a clean workshop, even during chip-intensive work.
Technical data:
Thanks to the 100 mm diameter hose and the reducing ring, this extraction system can be easily connected to most machines and ensures a clean workshop, even during chip-intensive work.
- 100 millimeter hose connection for large amounts of dust and chips
- Large collection container
- Container for long emptying cycles
- Standard trolley for easy transport

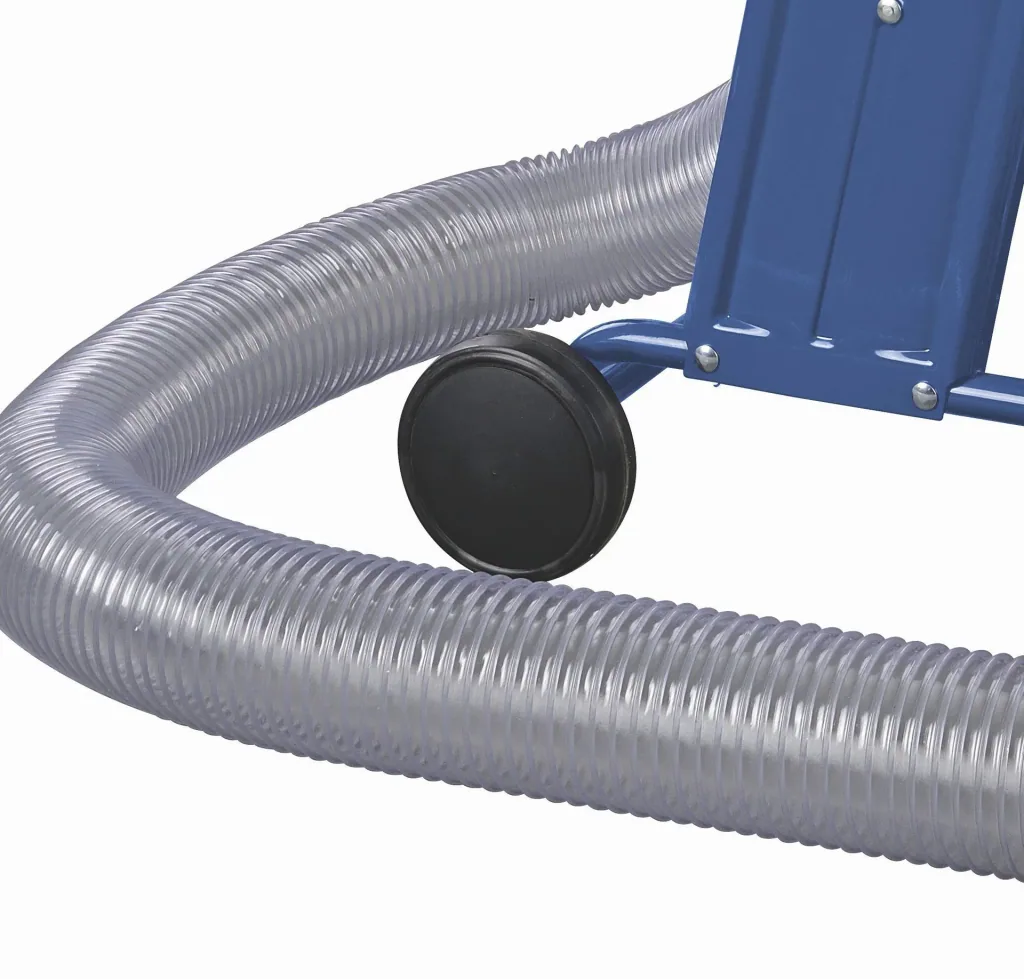

- Flexible suction hose with a length of 2.30 meters
- Chip bag capacity: 75 liters
- Incl. adapter set for connecting to small devices
- The HD12 extraction system has a plastic impeller.
Technical data:
- Dimensions L x W x H 775 x 450 x 1150 mm
- Extraction hose Ø 100 mm
- Hose length 2300 mm
- Air output 1150 m³/h
- Chip bag capacity 75 l
- Vacuum pressure 1600 Pa
- Weight 20 kg
- Motor 230 Volt
- Motor power 550 Watt
- Speed 2840 rpm.
- Filter area 1 sqm
- Operating noise 75 dB (A)
| Output power | |
|---|---|
| Output power | 550 watts |
| Negative pressure | |
| Negative pressure | 1.6 kpa |
| Air flow | |
| Air flow | 1,150 m³/h |
| Idle speed | |
| Idle speed | 2,840 rpm |
| External dimensions | |
| External dimensions | 77.5 x 45 x 115 |
| Extraction hose diameter | |
| Extraction hose diameter | 100 mm |
| Maximum hose length | |
| Maximum hose length | 2.3 m |
| Voltage | |
| Voltage | 230 volts |
| Filter area | |
| Filter area | 1 m² |
| Noise level | |
| Noise level | 75 |
| Weight | |
| Weight | 20 kg |
