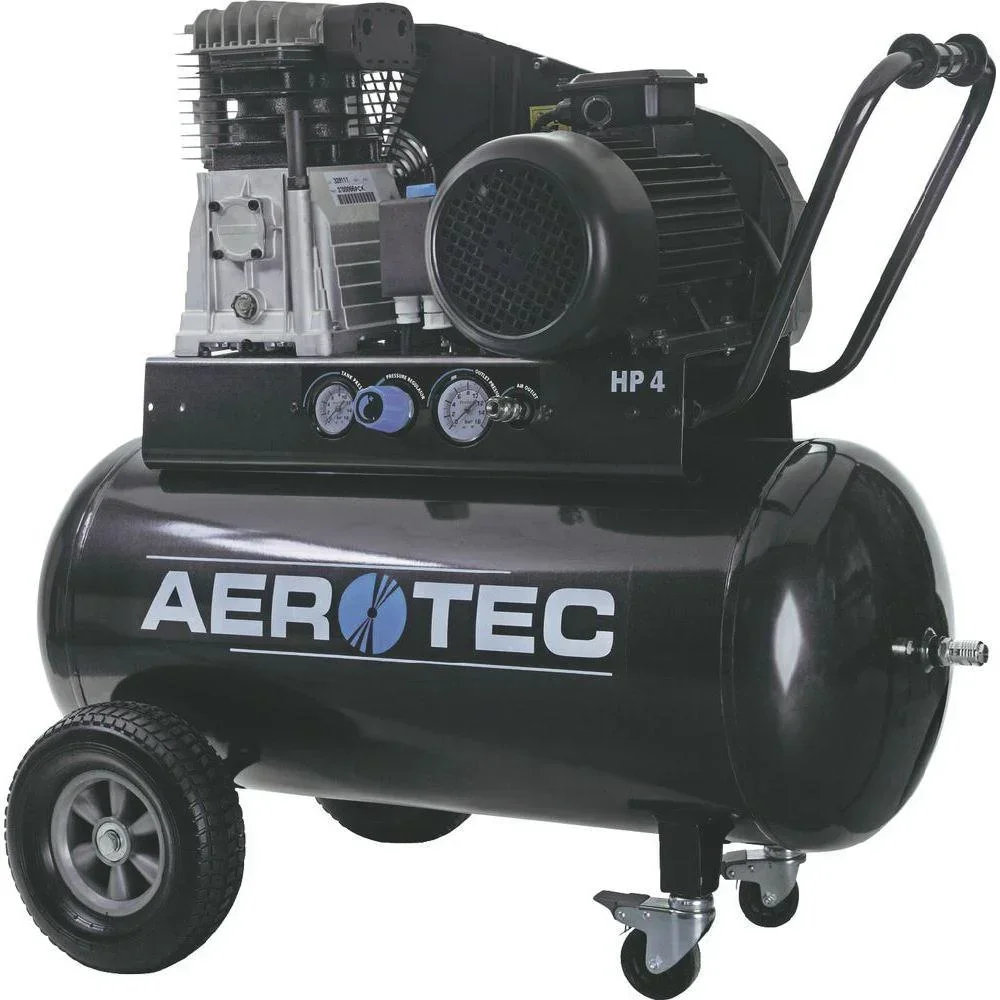

The TECHLINE models feature a protected pressure display and control unit. The 63 mm boiler pressure and discharge gauges, including a large, easy-to-grip pressure regulator, are stored in the console. This provides the user with all the necessary pressure information at a glance, and the steel console actively protects against damage.
You can easily check the oil level at any time through the sight glass. The device is delivered ready to plug in and includes safety fittings.
Technical Specifications:
- V-belt-driven 2-cylinder, 1-stage in-line unit
- TÜV-approved due to 90-liter boiler
- Start-up relief via pressure switch control
- With large, profiled, ball-bearing hard rubber wheels and swivel casters for easy handling
- Condensate drains via a ball valve
- Supplied with a phase inverter plug
You can easily check the oil level at any time through the sight glass. The device is delivered ready to plug in and includes safety fittings.
Technical Specifications:
- Model: 600-90
- Vessel Size (L): 90
- Vessel Pressure (bar): 10
- Suction Capacity (L/min.): 600
- Delivery Rate (L/min): 375
- Speed (rpm): 1250
- Sound Pressure Level LWA/dB: 95/76
- Motor KW/HP: 3/4
- Volt / Hz: 400/50
- Dimensions (mm): 975x390x800
- Weight (kg): 75
| Voltage | |
|---|---|
| Voltage | 400 volts |
| Tank capacity | |
| Tank capacity | 90 l |
| Engine power | |
| Engine power | 4 hp |
| Idle speed | |
| Idle speed | 0-1250 rpm |
| Output power | |
| Output power | 3,000 watts |
| Intake capacity | |
| Intake capacity | 600 l/min |
| Number of cylinders | |
| Number of cylinders | 2 |
| Delivery rate | |
| Delivery rate | 375 l/min |
