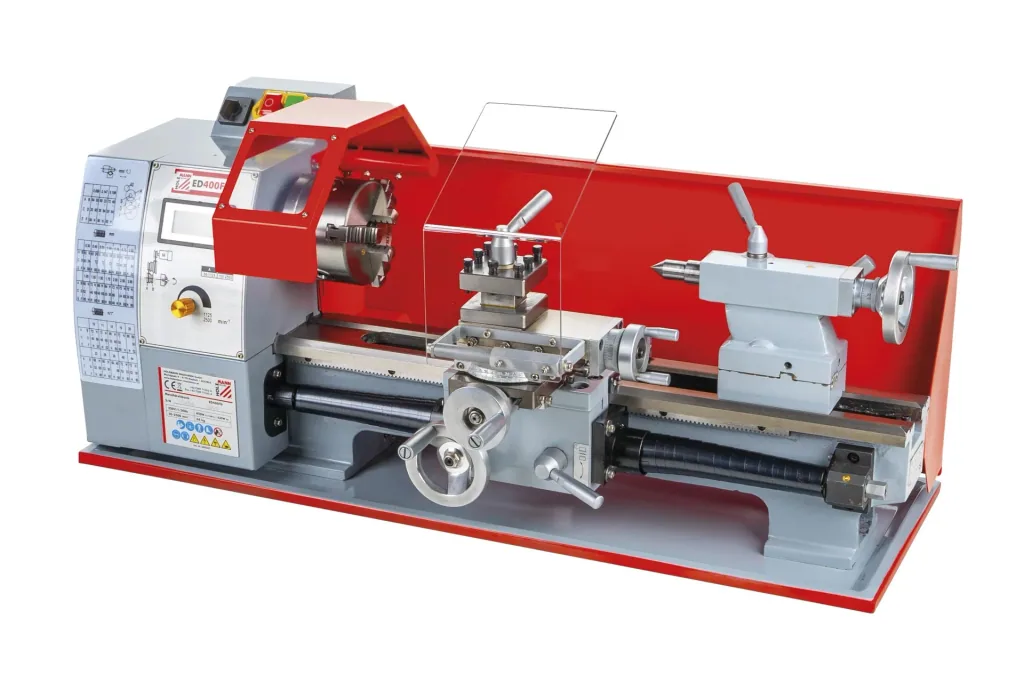

Table lathe ED 400FD
Gegarandeerd Veilig afrekenen
| Artikelnummer | WF-848227 |
| Merk | Holzmann |
Recensies
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te maken
Vragen
Er zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
0 reviews
- With lead screw for thread cutting or automatic longitudinal turning
- V-shaped bed guides induction hardened and precision ground
- Hardened main spindle mounted in adjustable, precise tapered roller bearings
- High concentricity of the main spindle (< 0.009 mm)
- Speed continuously variable, conveniently readable via digital speed display
- Change gears supplied as standard for a large thread cutting range
- V-shaped guides of the slide guide can be adjusted for play
- Powerful, maintenance-free motor with undervoltage release
- Extremely powerful, largely constant torque curve
- Right-left rotation can be switched on the control panel
- Tailstock can be moved for taper turning
- This product corresponds to filter class B and must be used in mixed or mixed water. Residential areas must be protected in accordance with EMC
Technical data
- Max. swing diameter over machine bed: 210 mm
- Max. Swing diameter over cross slide: 110 mm
- Machine bed width: 100 mm
- Spindle speed range: 50-2500 rpm
- Thickness of the turning tool is 10 mm
- Travel of longitudinal slide: 290 mm
- Tailstock mount: Mk2/MT2
- Tailstock quill travel: 55 mm
- Metric threads (18 steps): 0.5 - 3 mm
- Inch threads (8 steps): 8 - 44 TPI
- Motor power S1 (100%) / S6: 0.45 kW / 0.63 kW
- Dimensions L x W x H: 950 x 390 x 350 mm
Scope of delivery
- 3-jaw chuck Ø 100 mm
- Quadruple tool holder
- Fixed center punch MK3
- Fixed center punch MK2
- Chip back plate
- Chip tray
- Set of change gears
- Operating tools
| Distance between centers | |
|---|---|
| Distance between centers | 400 mm |
| Spindle bore | |
| Spindle bore | 21 mm |
| Voltage | |
| Voltage | 230 volts |
| Top slide travel | |
| Top slide travel | 85 mm |
| Power output | |
| Power output | 600 watts |
| Idle speed | |
| Idle speed | 50-2500 rpm |
| Weight | |
| Weight | 65 kg |
| Tailstock mount | |
| Tailstock mount | 3 MK |
| Cross travel | |
| Cross travel | 80 mm |
