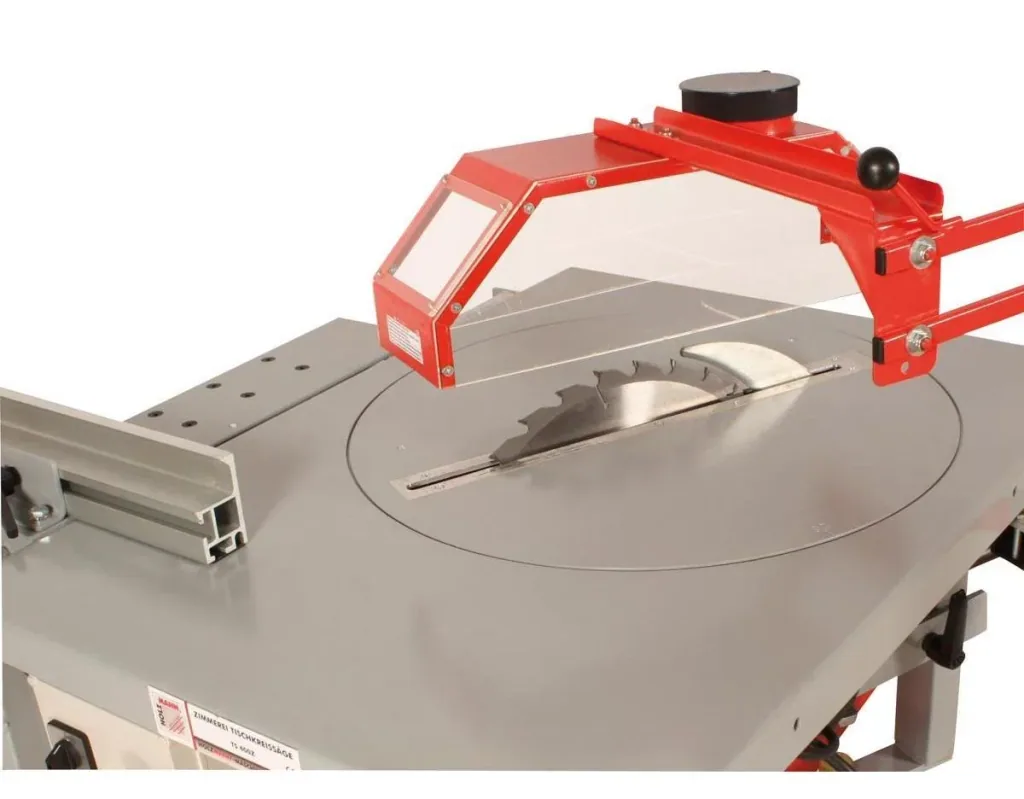

Table saw with roller conveyor TS400Z + ZAL
Gegarandeerd Veilig afrekenen
| Artikelnummer | WF-848203 |
| Merk | Holzmann |
Recensies
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te maken
Vragen
Er zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
0 reviews
- Ideal for carpentry needs with a sturdy saw unit
- Easy-to-use saw unit with a 90° turntable and simultaneously adjustable saw blade (up to 45°) for a wide variety of cutting tasks (longitudinal cuts, cross cuts, miter cuts, rabbet cuts, etc.)
- Valve and ridge cuts such as eaves and wedge plank cuts possible
- No chips or dust thanks to the option of connecting an extraction hood to the saw unit or saw blade guard
- Optionally with a movable infeed and outfeed roller table for easy processing of large workpieces
- High location flexibility thanks to the standard chassis
- Integrated tool box offers storage space
Technical specifications:
- Table dimensions 715 x 945 mm, table height 845 mm
- Max. saw blade diameter 400 mm
- Max. cutting height 90° 120 mm
- Max. cutting height 45° 90 mm
- Motor output (S1 100%) (S6) 2.8 kW/3.8 HP (S1)/ 3.9 kW/5.3 HP (S6)
- Motor voltage 400 V
- Motor speed main saw blade 2800 rpm
- Ø extraction connection 2x100 mm, movable roller conveyor (optional) 1000 x 550 mm
- Dimensions (W x D x H) 1350 x 1100 x 1180 mm
- Dimensions with roller conveyors 3380 x 1400 x 1180 mm
- Weight net/gross approx. 210 kg/ 240 kg
| Voltage | |
|---|---|
| Voltage | 400 V |
| maximum cutting height 45 | |
| maximum cutting height 45 | 90 mm |
| inclination angle | |
| inclination angle | 45 degrees |
| center bore | |
| center bore | 30 mm |
| drive | |
| drive | 380/400 V motor |
| technical features | |
| technical features | chassis |
| table size | |
| table size | 715 x 945 mm |
| maximum cutting height 90 | |
| maximum cutting height 90 | 120 mm |
| disc/blade diameter | |
| disc/blade diameter | 400 mm |
| external dimensions | |
| external dimensions | 1350 x 1100 x 1180 |
| weight | |
| weight | 210 kg |
| idle speed | |
| idle speed | 2800 rpm |
| saw table | |
| saw table | 715 x 945 |
