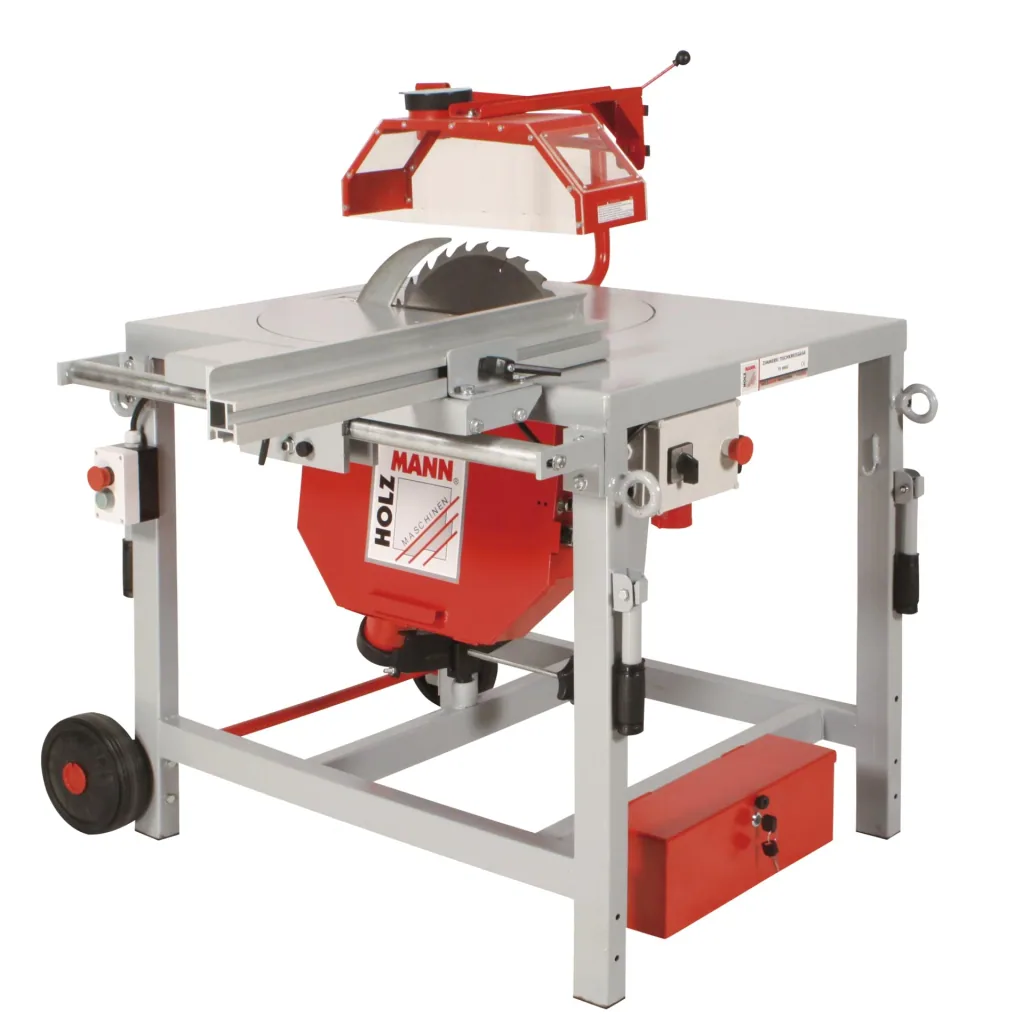

Table saw TS 400Z
Gegarandeerd Veilig afrekenen
| Artikelnummer | WF-848202 |
| Merk | Holzmann |
Recensies
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te maken
Vragen
Er zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
0 reviews
- Ideal for carpentry needs with a sturdy saw unit
- Easy-to-use saw unit with a 90° turntable and simultaneously
- adjustable saw blade (up to 45°) for a wide variety of cutting work
- (longitudinal cut, cross cut, miter cut, rabbet cut, etc.)
- Valve and ridge cuts such as eaves and wedge plank cuts possible
- No chips or dust thanks to the option of connecting an extraction hood to
- the saw unit or saw blade guard
- Optionally with movable infeed and outfeed roller table for easy
- processing of large workpieces
- High location flexibility thanks to standard chassis
- Integrated tool box offers storage space
Technical Data
- Table dimensions: 715 x 945 mm
- Table height: 845 mm
- Saw blade diameter: max. 400 mm
- Cutting height: max. 90° 120 mm
- Cutting height: max. 45° 90 mm
- Motor output: (S1 100%) (S6) 2.8 kW/3.8 HP (S1) 3.9 kW/5.3 HP (S6)
- Motor voltage: 400 Volt
- Motor speed main saw blade: 2800 rpm
- Ø extraction connection: 2 x 100 mm
- Sliding roller conveyor (optional): 1000 x 550 mm
- Dimensions (W x D x H): 1350 x 110 0 x 1180 mm
- Dimensions with roller conveyors: 3380 x 1400 x 1180 mm
- Weight: approx. 210 kg
Including saw blade with 400 mm diameter and 28 teeth.
| Maximum cutting height 90 | |
|---|---|
| Maximum cutting height 90 | 120 mm |
| Disc/blade diameter | |
| Disc/blade diameter | 400 mm |
| External dimensions | |
| External dimensions | 1350 x 1100 x 1180 |
| Table size | |
| Table size | 715 x 945 mm |
| Center bore | |
| Center bore | 30 mm |
| Technical features | |
| Technical features | Chassis |
| Drive | |
| Drive | 380/400V motor |
| Maximum cutting height 45 | |
| Maximum cutting height 45 | 90 mm |
| Inclination | |
| Inclination | 45 degrees |
| Saw table | |
| Saw table | 715 x 945 |
| Diameter | |
| Diameter | 0.0 mm |
| Idle speed | |
| Idle speed | 2800 rpm |
| Weight | |
| Weight | 210 kg |
| Voltage | |
| Voltage | 400 V |
