Charger MXS 5.0 - new version

CTEK – MXS 5.0 Charger

Temperature-compensated charging - 25% more power (5 amps) than the previous model

The MXS 5.0 is a charger equipped with state-of-the-art technology previously reserved only for CTEK professional devices. The charger solves a wide range of battery problems; it is the perfect charger for users with the highest demands. The MXS 5.0 offers a range of features, such as battery diagnostics that indicate whether the battery can accept and retain a charge, a special reconditioning function that restores deeply discharged batteries with acid stratification, a unique maintenance charge function, a mode for optimized charging on cold winter days, and the ability to charge demanding AGM batteries (e.g., Optima). The unique display allows the user to follow the entire charging process.

Temperature-compensated charging: The battery is charged even more optimally by adjusting the final charging voltage to the temperature. At higher temperatures, the voltage is slightly lower, and at lower temperatures, the voltage is slightly higher.

Technical specifications

• Nominal alternating voltage: AC 220–240VAC, 50–60Hz
• Min.: Battery voltage 2.0V
• Charging current: 0.8 or optionally 5A.
• Mains current: 0.65A effective (at full charging current)
• Reverse discharge current: <1.3 Ah/month
• Ambient temperature: -20°C to +50°C, output power is automatically reduced at high temperatures

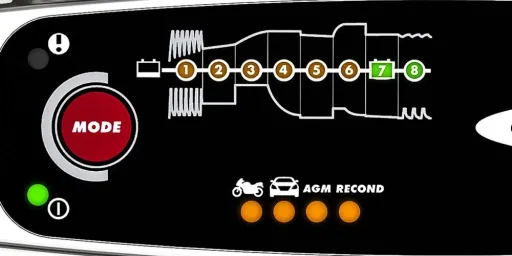

• Charger type: 8-stage, fully automatic charging cycle, IUoUp characteristic curve, (1 - desulfation, 2 - soft start, 3 - main charge, 4 - absorption, 5 - analysis, 6 - recond, 7 - float, 8 - pulse charge maintenance)
• Charging time: 12 hours (with a 60 Ah battery)
• Battery types: All types of 12 V lead-acid batteries (wet, maintenance-free, Ca/Ca, AGM and Gel)• Battery capacity: 1.2 to 110 Ah, up to 160 Ah for maintenance charge
• Insulation class: IP65

Dimensions: 165 x 61 x 38 mm (L x W x H)

Weight: 0.5 kg

Scope of delivery

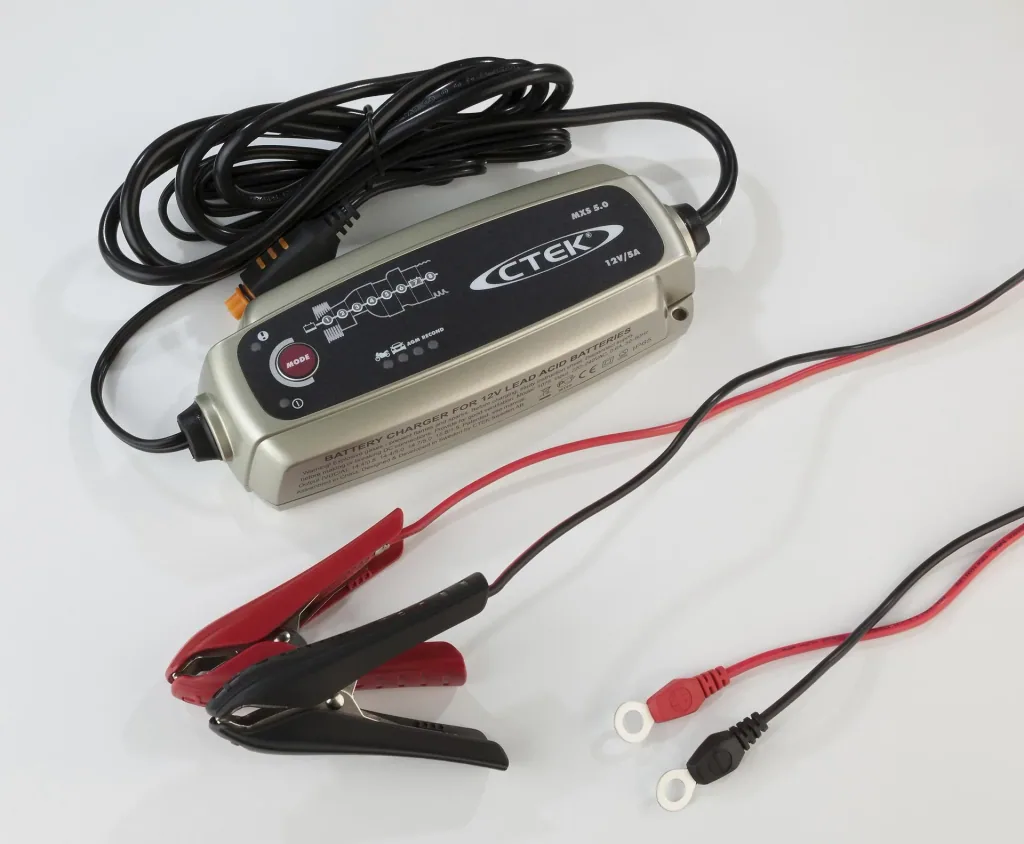

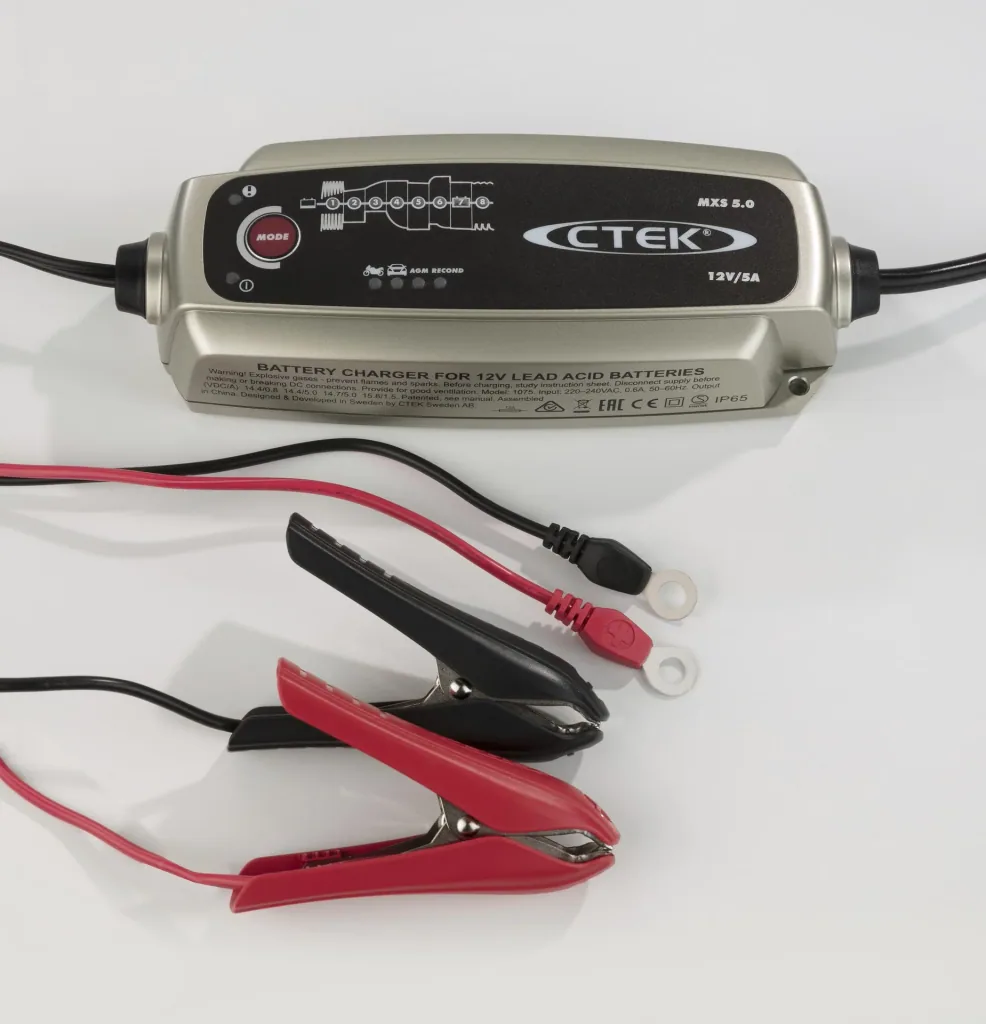

• 1x Automatic charger MXS 5.0
• 1x Cable with eyelet M6
• 1x Cable with clamp
