Solar pump system "Napoli LED" - with dry-run protection
Gegarandeerd Veilig afrekenen
| Artikelnummer | WF-837194 |
| Merk | Esotec |
Recensies
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te maken
Vragen
Er zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
0 reviews

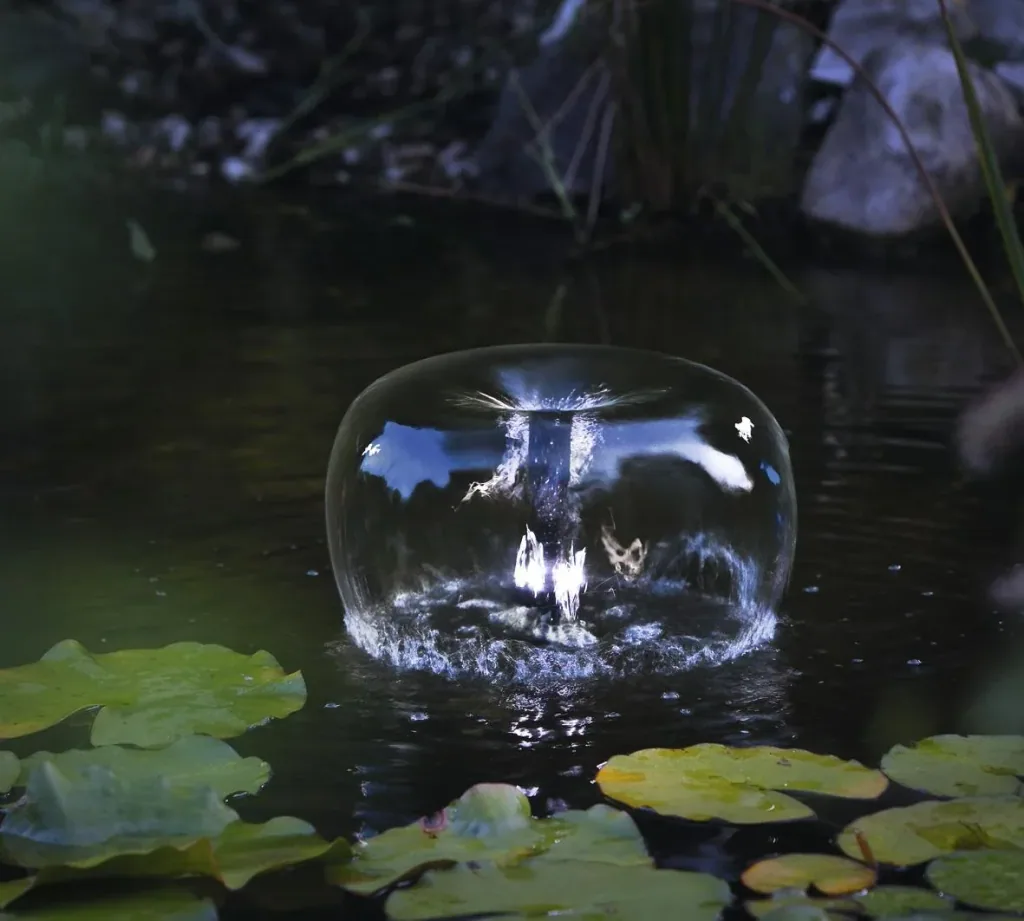

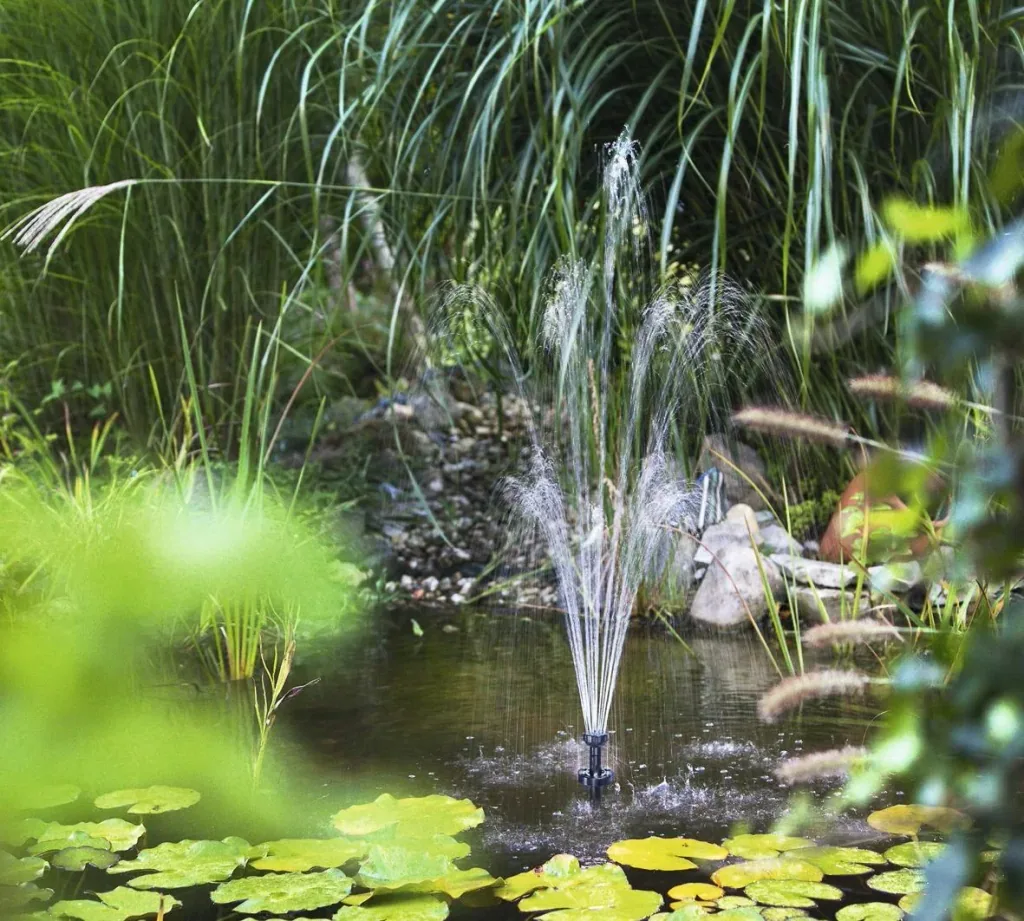

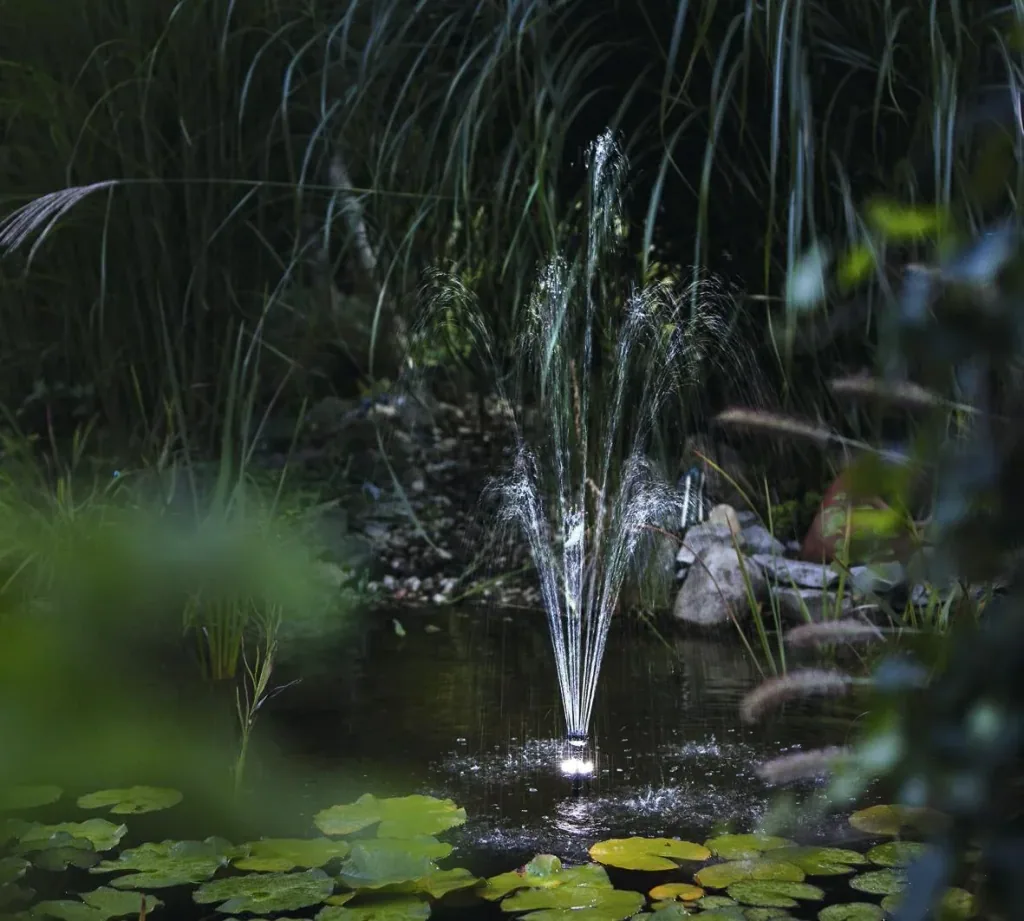

The perfect combination of solar module, battery storage, submersible pump, and LED light ring (with twilight sensor and white LEDs). The pump system can be used in a pond or to supply water to a fountain. In full summer sunshine, the solar module generates enough energy to power the pump and simultaneously charge the battery. A built-in regulator in the battery box allows the voltage and thus the pump's power to be adjusted between 12 and 24 V. High-quality, collector-free pump with dry-run protection and long-lasting LED lighting. Different fountains can be created with the included four risers and two different sprinklers (three-stage fountain and water bell).
The following operating modes are available:
Continuous operation: The battery is charged by the solar module when the sun is shining. Once the battery is charged, the pump runs depending on the amount of sunlight until the battery is discharged.
Timer operation: The battery is charged by the solar module when the sun is shining. Once the battery is charged, the pump runs for approximately 15 minutes per hour. This also allows for longer operation at night.
Charging operation: The battery is charged by the solar module when the sun is shining, and the pump does not run. In the evening, the pump can be switched on using a switch, and the system runs for several hours until the battery is discharged.
Supplied ready to plug in - can be set up in minutes.
Technical data:
Solar module:
Submersible pump:
Battery storage:
LED light ring:
Nozzle set:
Caution: Protect the pump from frost, do not operate in winter!
The following operating modes are available:
Continuous operation: The battery is charged by the solar module when the sun is shining. Once the battery is charged, the pump runs depending on the amount of sunlight until the battery is discharged.
Timer operation: The battery is charged by the solar module when the sun is shining. Once the battery is charged, the pump runs for approximately 15 minutes per hour. This also allows for longer operation at night.
Charging operation: The battery is charged by the solar module when the sun is shining, and the pump does not run. In the evening, the pump can be switched on using a switch, and the system runs for several hours until the battery is discharged.
Supplied ready to plug in - can be set up in minutes.
Technical data:
Solar module:
- Power: 10 Wp
- Rated current: 580 mA
- Rated voltage: 17.5 V
- Dimensions (L x W x H): 400 x 260 x 25 mm
- Weight: 1.2 kg
- Accessories: 5 m extension cable (item no. 101738)
Submersible pump:
- Max. flow rate (12 V - 24 V): 470 - 750 l/h
- Max. Delivery head (12 V - 24 V): 0.8 - 2 m
- Operating voltage: 12 - 24 V DC
- Power consumption (12 V - 24 V): approx. 4 W - 13 W
- Dry-run protection
- Cable length: 5 m
- Protection class: IP 68
- Dimensions (L x W x H): 100 x 66 x 70 mm
- Hose connection: 13 mm
- Weight: 580 g
- Version with 4 suction feet on the bottom
Battery storage:
- Battery type: Lead/Gel 12 V/ 7 Ah
- Max. connectable module power: 20 Wp
- Max. Output current to the pump: 800mA
- max. Pump operating time with full battery: 6 hours.
- Overcharge protection: 13.8 V
- Deep discharge protection: 11.8 V
- Restart voltage: 12.9 V
- Display: LED
- Dimensions (L x W x H): 182 x 152 x 125 mm
- Weight: 3 kg
LED light ring:
- 6 white LEDs
- Operating voltage: 12 - 24 V DC
- Cable length: 75 cm
- Dimensions (inner/outer diameter): 15 x 15 x 20 mm
- Accessories: 5 m extension cable (item no. 101740)
Nozzle set:
- 4 riser pipes with a length of 85 mm and 2 interchangeable nozzles (3-stage fountain and water bell)
- Accessories: 5 m extension cable (Art. No. 101738)
Caution: Protect the pump from frost, do not operate in winter!
