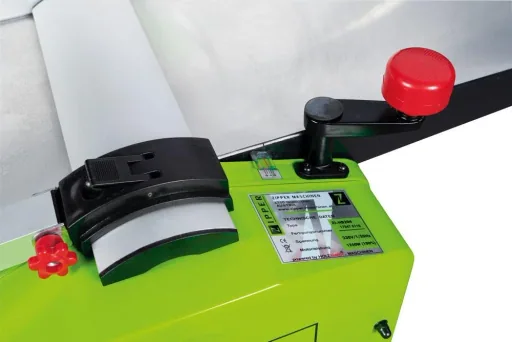

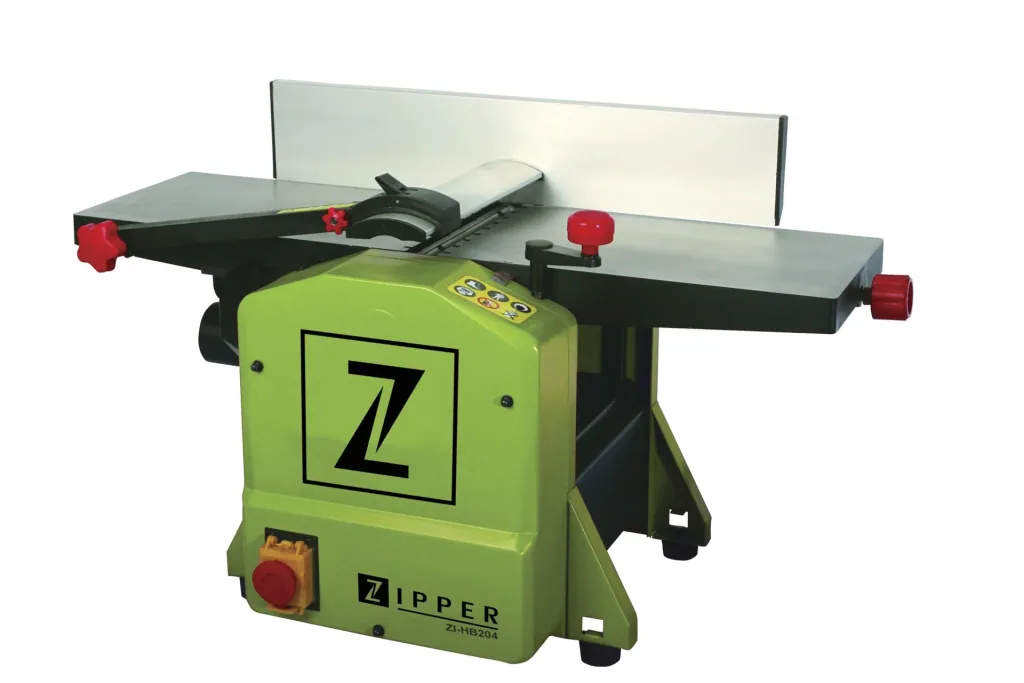

Jointer and thicknesser "ZI-HB204", with 2 pairs of HSS planer knives
Gegarandeerd Veilig afrekenen
| Artikelnummer | WF-835144 |
| Merk | Zipper |
Recensies
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te maken
Vragen
Er zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
0 reviews
- Powerful universal motor with belt drive
- Joint stop
- Consistent feed rate
The "ZI-HB204" planer and thicknesser is equipped with a universal motor with belt drive and a 2-knife cutterblock. Its low weight makes it particularly versatile. A second pair of planer knives is included in delivery.
Technical Data
- Maximum power: 1250 watts
- Motor power: 1.25 kW
- Operating voltage: 230 volts
- Frequency: 50 Hertz
- Cutter shaft speed: 8500 rpm
- Table size planer: 737 x 210 mm
- Table size thicknesser: 255 x 204 mm
- Stop: 520 x 102 mm / 90-135°
- Ø extraction nozzle: 63 mm
- Planer knives: 2 pcs. (210 x 22 x 1.8 mm)
- Maximum planing width: 204 mm
- Maximum Passage height: 6-120 mm
- Chip removal planer: 0-2 mm
- Chip removal thicknesser: 0-2 mm
- Feed rate: 6 mm/s
Dimensions: approx. 790 x 420 x 440 mm
Table size planer: approx. 737 x 210 mm
Table size thicknesser: approx. 255 x 204 mm
Color: Green
Weight: 25 kg
Scope of delivery:
- 1 x surface planer and thicknesser "ZI-HB204", with 2-knife planer shaft
- 1 x pair of replacement HSS planer knives
- 1 x Operating instructions
| Weight | |
|---|---|
| Weight | 25 kg |
| External dimensions | |
| External dimensions | 790 x 420 x 440 |
| Chip removal | |
| Chip removal | 0-2 mm |
| Table size | |
| Table size | 737 x 210 mm |
| Number of knives | |
| Number of knives | 2 |
| Planing width | |
| Planing width | 204 cm |
| Voltage | |
| Voltage | 230 V |
| Power output | |
| Power output | 1,250 W |
| Colors | |
| Colors | light green |
| Cutting height | |
| Cutting height | 120 mm |
| No-load speed | |
| No-load speed | 8,500 rpm |
| Feed rate | |
| Feed rate | 6 mm/s |
| Drive | |
| Drive | 230 V motor |
